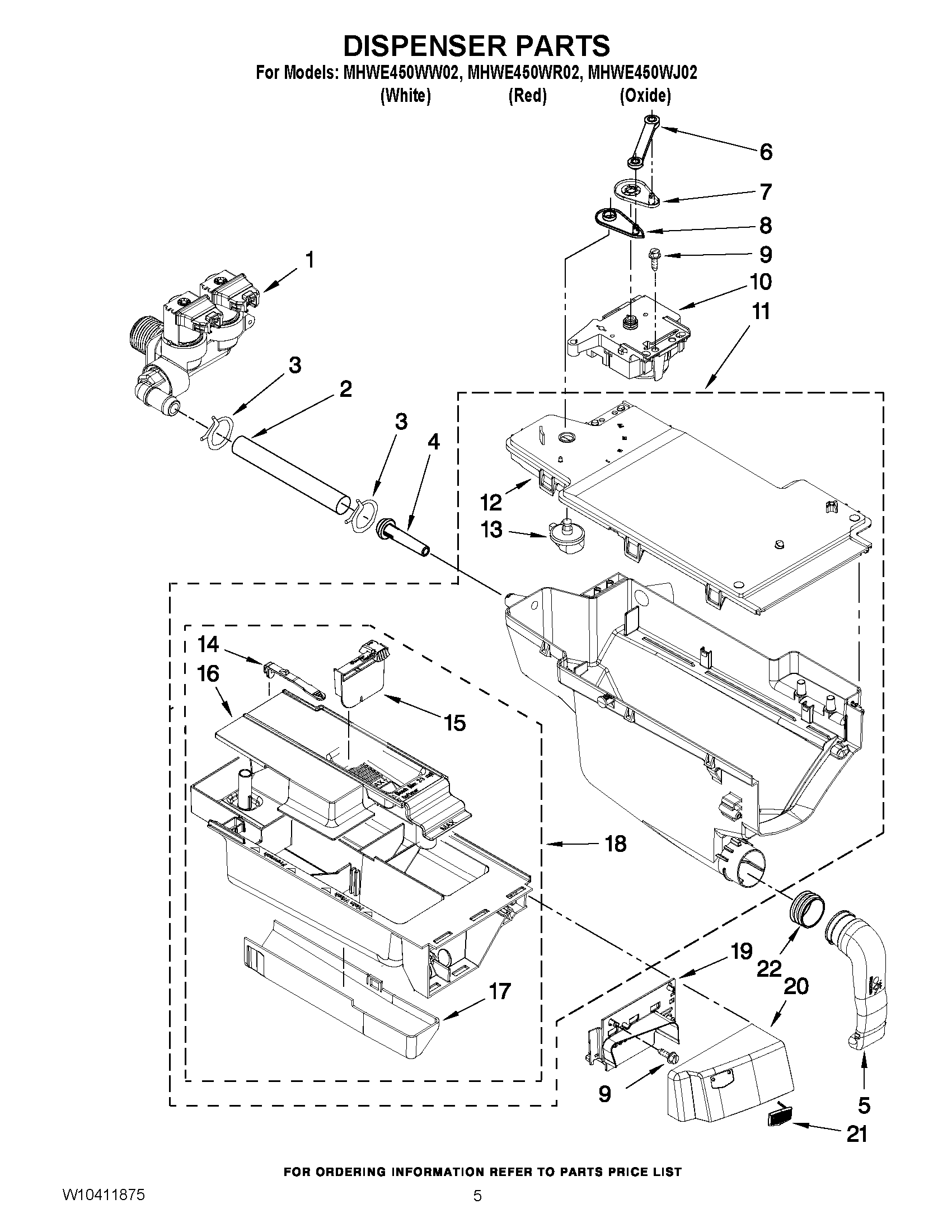

MHWE450WJ02 04 – DISPENSER PARTS

Products

Position	Product
1	VALVE, INLET
2	MAY W10291582
3	Clamp, Hose
4	MAY 8183181
5	MAY 8181718
6	Lever, Water Distribution
7	MAY 8183184
8	MAY W10161052
9	MAY 8181661
10	MAY W10352973
11	Dispenser, Complete (Includes Item 8)
12	MAY W10164400
13	MAY 8181712
14	MAY 8181721
15	MAY W10121596
16	MAY W10121598
17	MAY 8183179
18	MAY 8183173
19	MAY W10289412
19	MAY W10289408
19	BRACKET, HANDLE FIXATION (WHITE)
20	MAY W10283504
20	MAY W10283505
20	MAY W10283506
21	MAY W10248108
22	MAY 8181747
