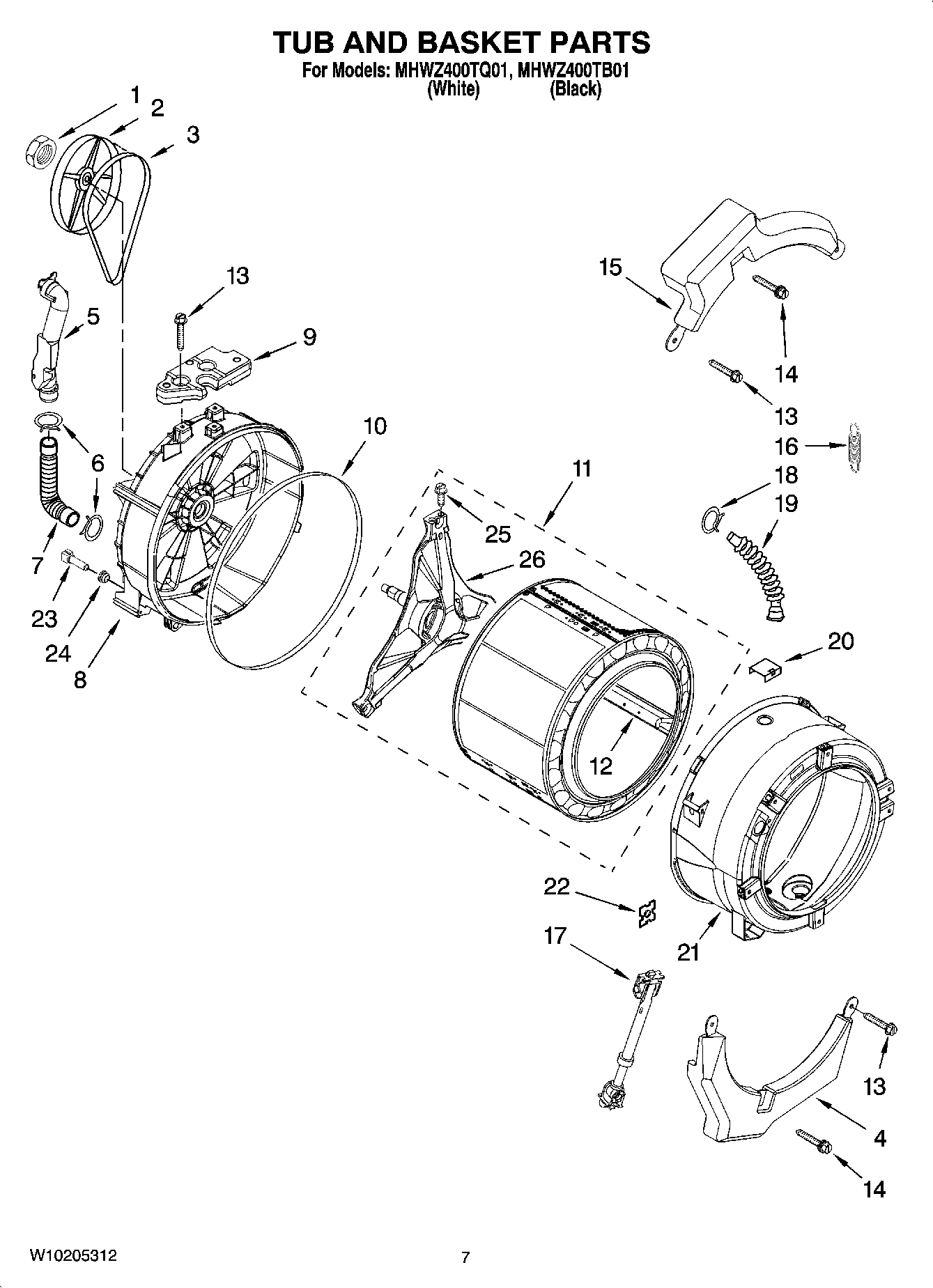

MHWZ400TB01 06 – TUB AND BASKET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	REFINISHING MATERIAL (ENAMEL, BLACK (1 QT. UNCUT))
NI	WATER SYSTEM PARTS, 4` DRAIN HOSE W/CLAMP
NI	MAY W10135699
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY 8533999
2	MAY 8540088C
3	MAY W10116215
4	MAY W10151304
5	MAY W10112169
6	MAY 8540010
7	MAY 8540019
8	MAY W10112660
9	MAY 8540604
10	MAY 8540090
11	MAY W10112984
12	MAY W10112972
13	BOLT, COUNTERWEIGHT
14	Bolt Assembly, Counterweight Center Hole
15	MAY W10151303
16	SPRING, SUSPENSION (SET OF 2)
17	Shock Absorber (4)
18	CLAMP, HOSE
19	MAY 8540015
20	MAY 8540092
21	MAY W10112661
22	MAY 8540072
23	MAY 8540226
24	MAY 8540766
25	MAY 8540382
26	Crosspiece Assembly
