MHWZ400TQ02 03 – CONTROL PANEL PARTS

MHWZ400TQ02 03 – CONTROL PANEL PARTS

Written by

in

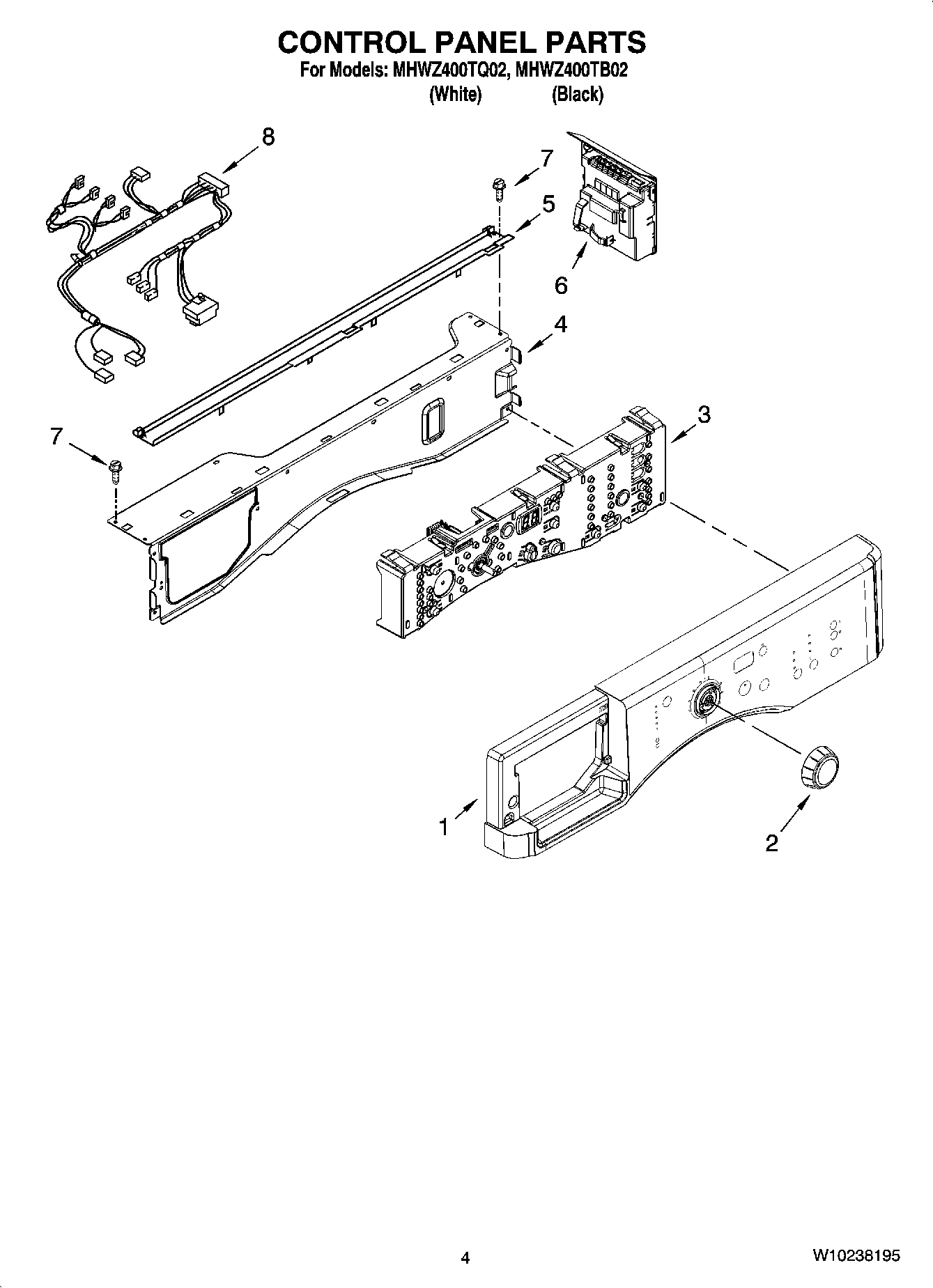

MHWZ400TQ02 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10117405
1MAY W10119011
2Knob, Assembly
2Knob, Assembly
3MAY W10117418
4MAY W10161692
5MAY 8540722
6MAY W10217424
7Screw, 8-18 x 5/8
8Harness, Wiring (Upper Main) (Includes Items 37 & 39 On Page 1)
