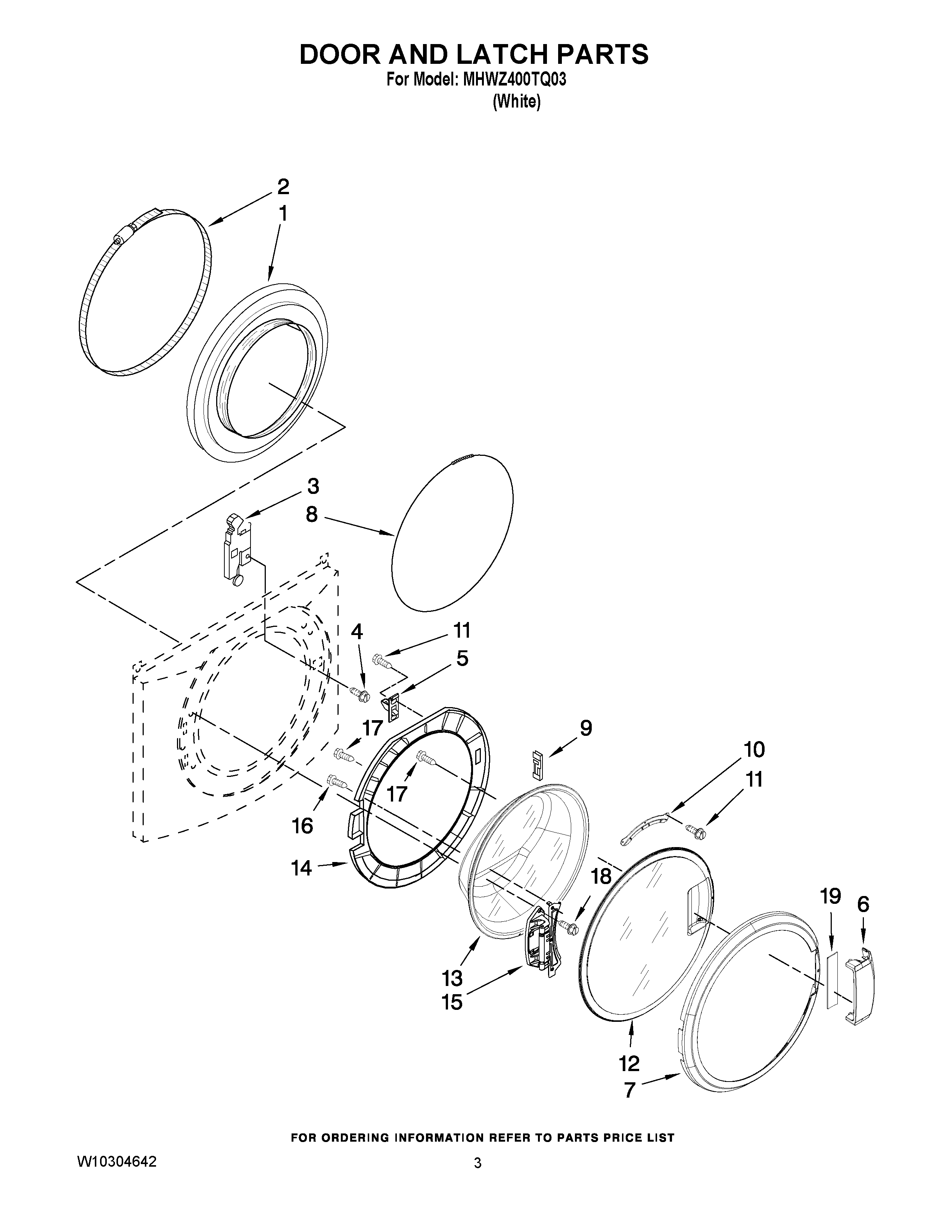

MHWZ400TQ03 02 – DOOR AND LATCH PARTS

MHWZ400TQ03 02 – DOOR AND LATCH PARTS

Written by

in

MHWZ400TQ03 02 – DOOR AND LATCH PARTS

Products

Position	Product
1	MAY W10290499
2	MAY 8540108
3	MAY W10253483
4	MAY 8540725
5	MAY 8540221
6	MAY W10117475
7	Trim Ring, Outer Door (White)
8	MAY W10277975
9	MAY 8540115
10	MAY 8540114
11	MAY 8540513
12	MAY W10119007
13	MAY W10205548
14	MAY W10240989
15	MAY 8540416
16	MAY 8540284
17	MAY 8540282
18	Screw, 8-18 x 5/8
19	MAY W10112927
