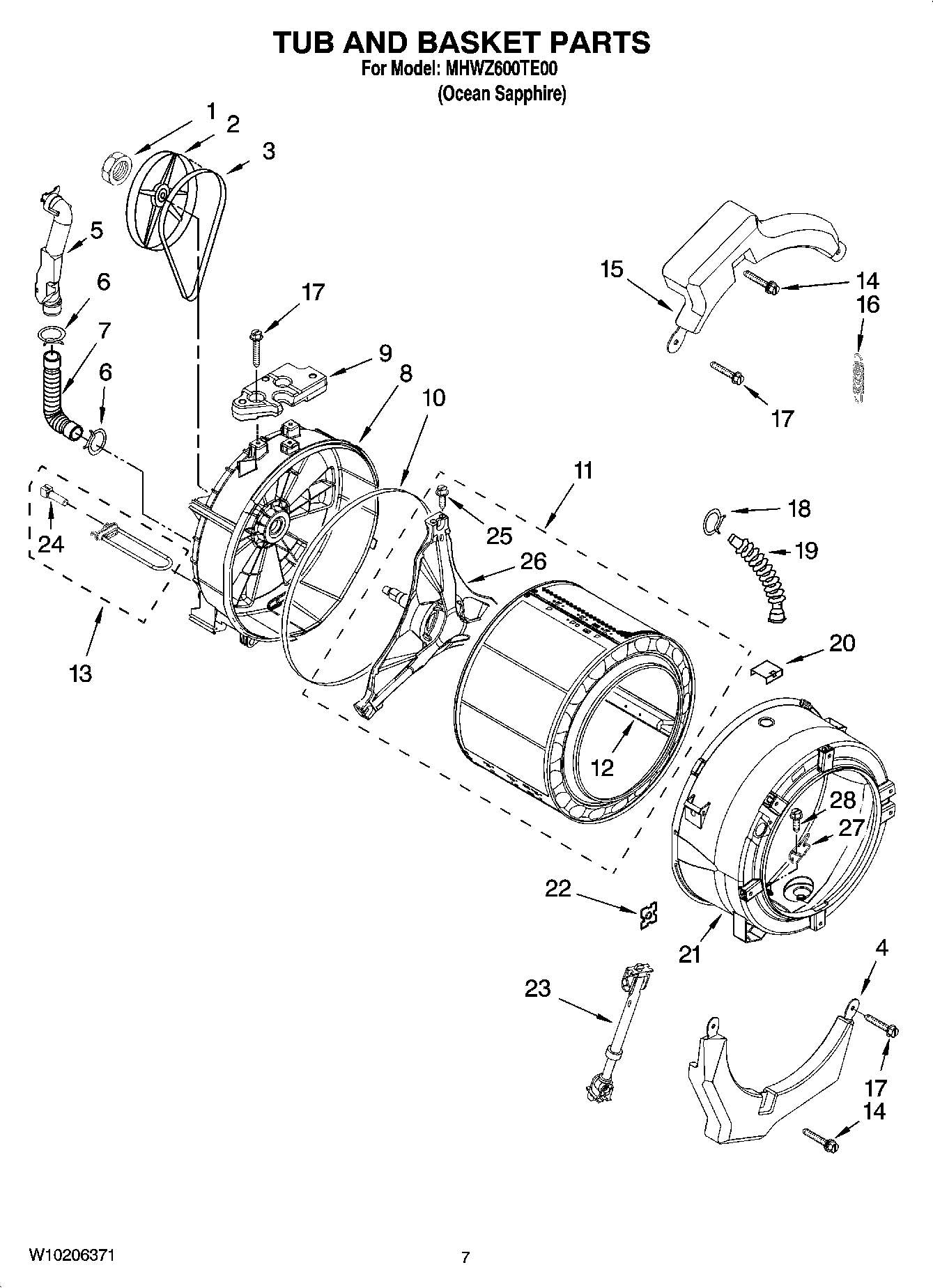

MHWZ600TE00 06 – TUB AND BASKET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	WATER SYSTEM PARTS, 4` DRAIN HOSE W/CLAMP
NI	MAY W10202940
NI	MAY W10135699
1	MAY 8533999
2	MAY 8540088C
3	MAY W10116215
4	MAY W10151304
5	MAY W10112169
6	MAY 8540010
7	MAY 8540019
8	MAY W10112663
9	MAY 8540604
10	MAY 8540090
11	MAY W10112984
12	MAY W10112972
13	MAY W10155115
14	Bolt Assembly, Counterweight Center Hole
15	MAY W10151303
16	SPRING, SUSPENSION (SET OF 2)
17	BOLT, COUNTERWEIGHT
18	CLAMP, HOSE
19	MAY 8540015
20	MAY 8540092
21	Tub, Front (Includes Items 8, 10, 22, 27 & 28)
22	MAY 8540072
23	Shock Absorber (4)
24	MAY 8540226
25	MAY 8540382
26	Crosspiece Assembly
27	MAY 8540322
28	MAY 8540880
