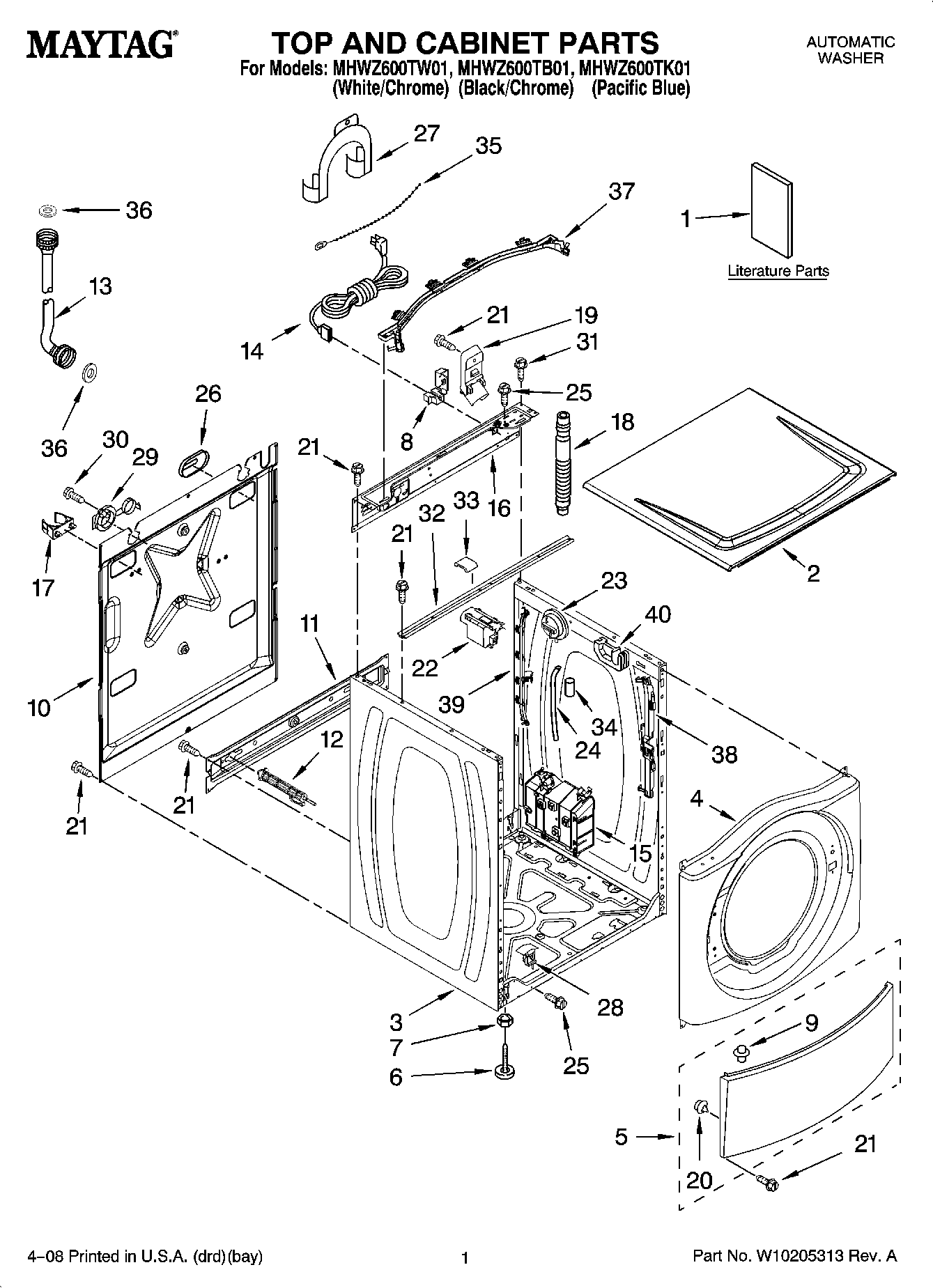

MHWZ600TW01 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10112913
1	MAY W10118956
1	MAY W10171153
1	MAY W10117443
2	MAY W10128645
2	MAY W10135105
2	Top (White)
3	Cabinet (White)
3	MAY W10185446
3	Cabinet (Black)
4	MAY W10119003
4	Panel, Front (White)
4	MAY W10117457
5	TOE PANEL (PACIFIC BLUE)
5	Toe Panel
5	MAY W10112981
6	MAY W10121677
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY 8540580
11	MAY W10189657
12	MAY 8540199
13	Hose, Water Inlet (2) (Blue Coupler)
13	Hose, Water Inlet (Hot Water)
14	MAY W10121405
15	MAY W10163007
16	MAY W10161694
17	MAY 8540093
18	MAY W10114608
19	MAY 8540607
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY 8540230
23	MAY W10163980
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	MAY 8540021
28	MAY W10085220
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	MAY 8540720
33	MAY 8283273
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, HOSE – KIT W10473735 INCLUDES: WASHER, INLET HOSE
37	MAY W10168548
38	MAY W10168546
39	MAY W10168547
40	BRACKET-SUSPENSION SPRING
