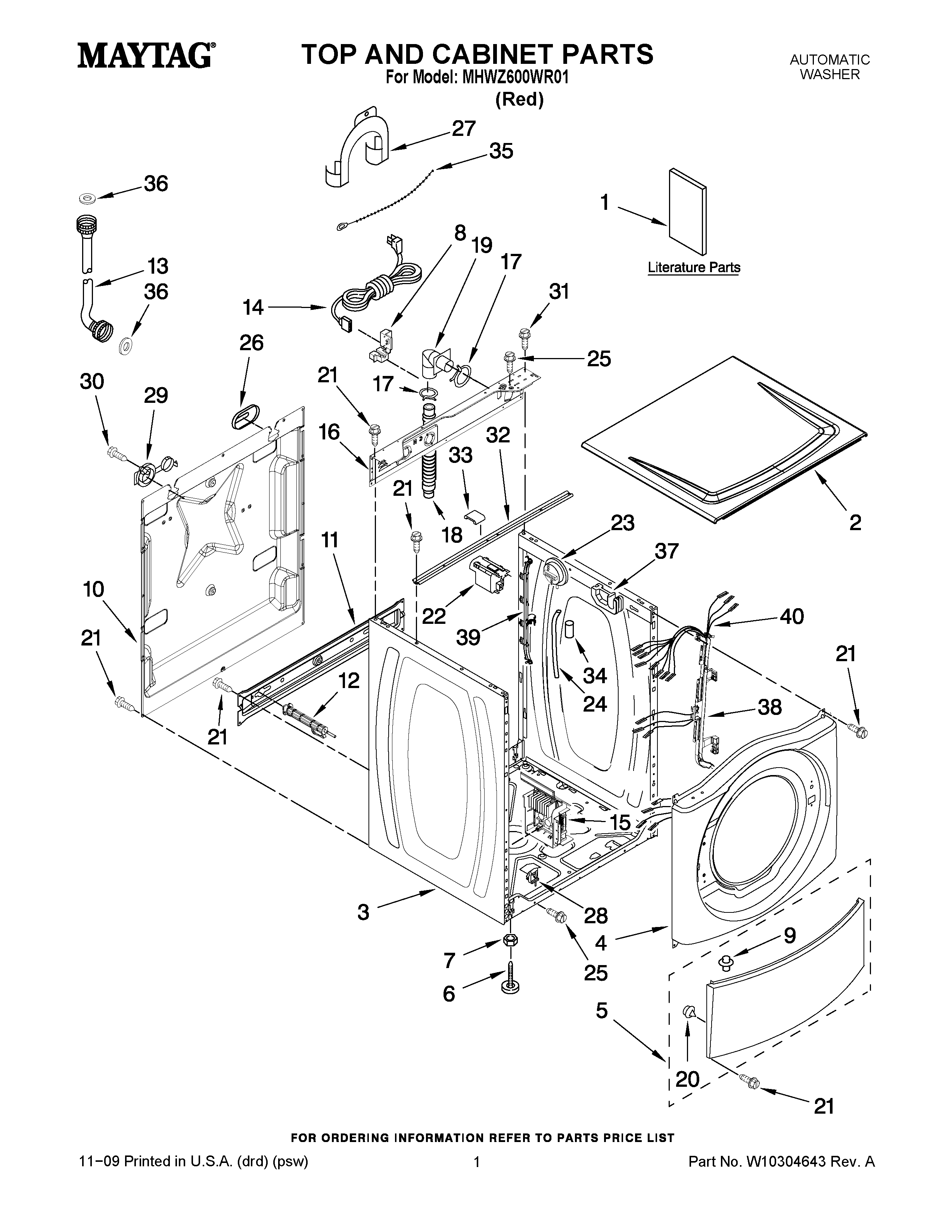

MHWZ600WR01 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10171153
1	MAY W10252711
1	MAY W10285612
2	TOP
3	CABINET
4	MAY W10259097
5	TOE PANEL
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258341
11	MAY W10189657
12	MAY W10251449
13	Hose, Water Inlet (Cold Water)
13	Hose, Water Inlet (Hot Water)
14	MAY W10205499
15	MAY W10289776
16	MAY W10244560
17	MAY 356138
18	MAY W10003280
19	Connector, Drain Hose
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY 8540230
23	MAY W10163980
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	MAY 8540021
28	MAY W10085220
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	MAY 8540720
33	MAY 8283273
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	BRACKET-SUSPENSION SPRING
38	MAY W10168546
39	MAY W10168547
40	MAY W10239821
