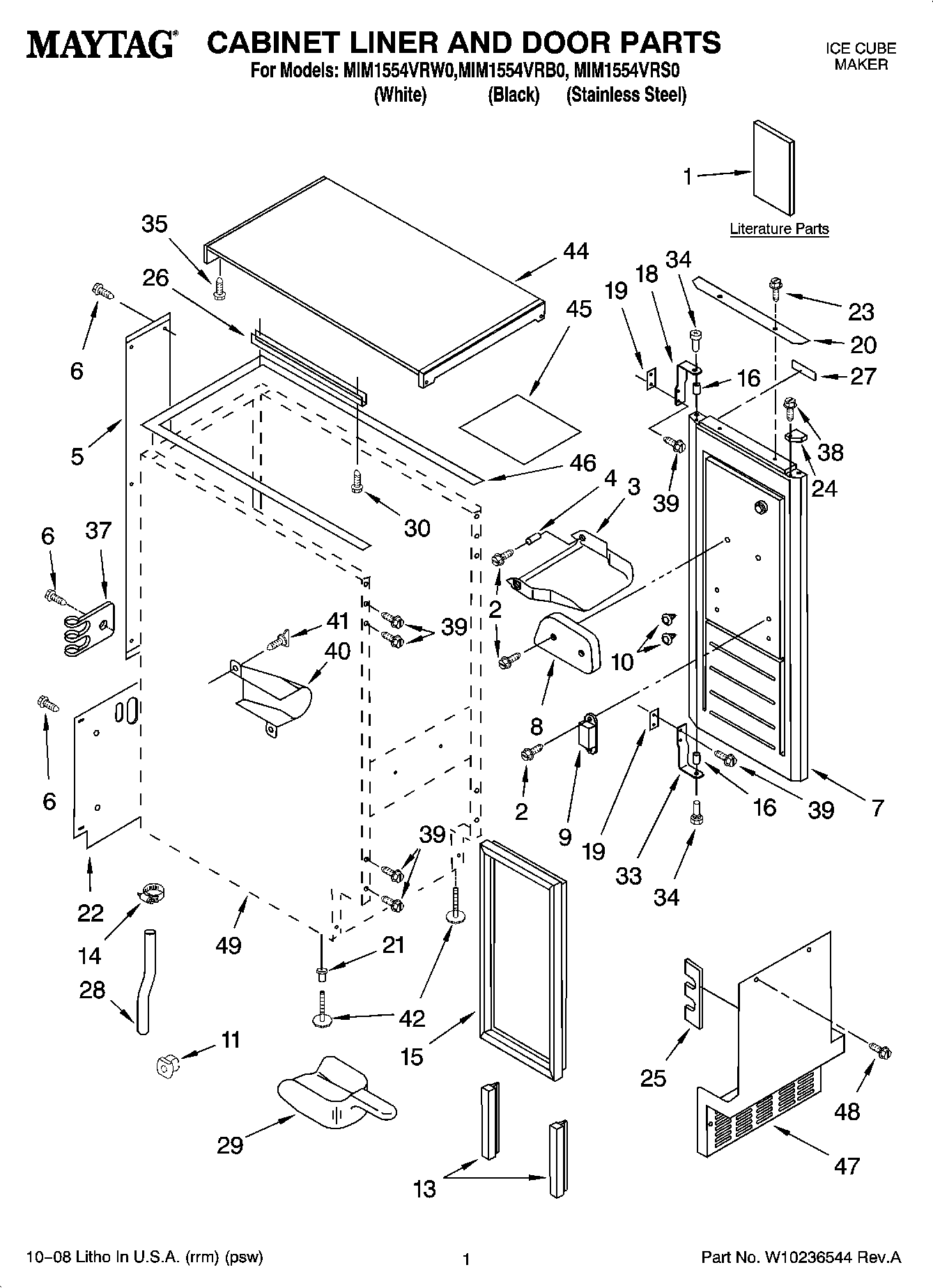

MIM1554VRB0 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	MAY W10206488
1	MAY W10163556
2	SCREW (STAINLESS)
3	MAY 2185742
4	SPACER
5	COVER, WIRING
6	MAY 489442
7	MAY 2932803BS
7	Door (White)
7	Door
8	MAY 2185695
9	MAY 2217393
10	Hole Plug, Handle
11	Nut, Push-In
13	MAY 2217367
14	MAY 489503
15	GASKET, DOOR
16	MAY 2185640
18	MAY 2185710
19	MAY 2185709
20	MAY 2208493W
20	MAY 2208493B
21	NUT
22	Cover Unit
23	MAY 8281188
23	Screw
24	Filler, Endcap Right Side (White)
24	Filler, Endcap Left Side (White)
24	Filler, Endcap (Left Side)
24	Filler, Endcap (Right Side)
25	MAY 2185756
26	MAY 2185691
27	Nameplate
28	MAY 2185989
29	MAY 585158
30	SCREW (STAINLESS)
33	MAY 2185711
34	PIN, HINGE
35	SCREW
37	Clip, Tube
38	SCREW
39	MAY 8281265
40	HOLDER, SCOOP
41	MAY 8281228
42	LEG, LEVELING
44	Top (White)
44	Top
45	MAY 2185690
46	MAY W10163530
47	Grill, Front (White)
47	Grill, Front
48	MAY 489474
