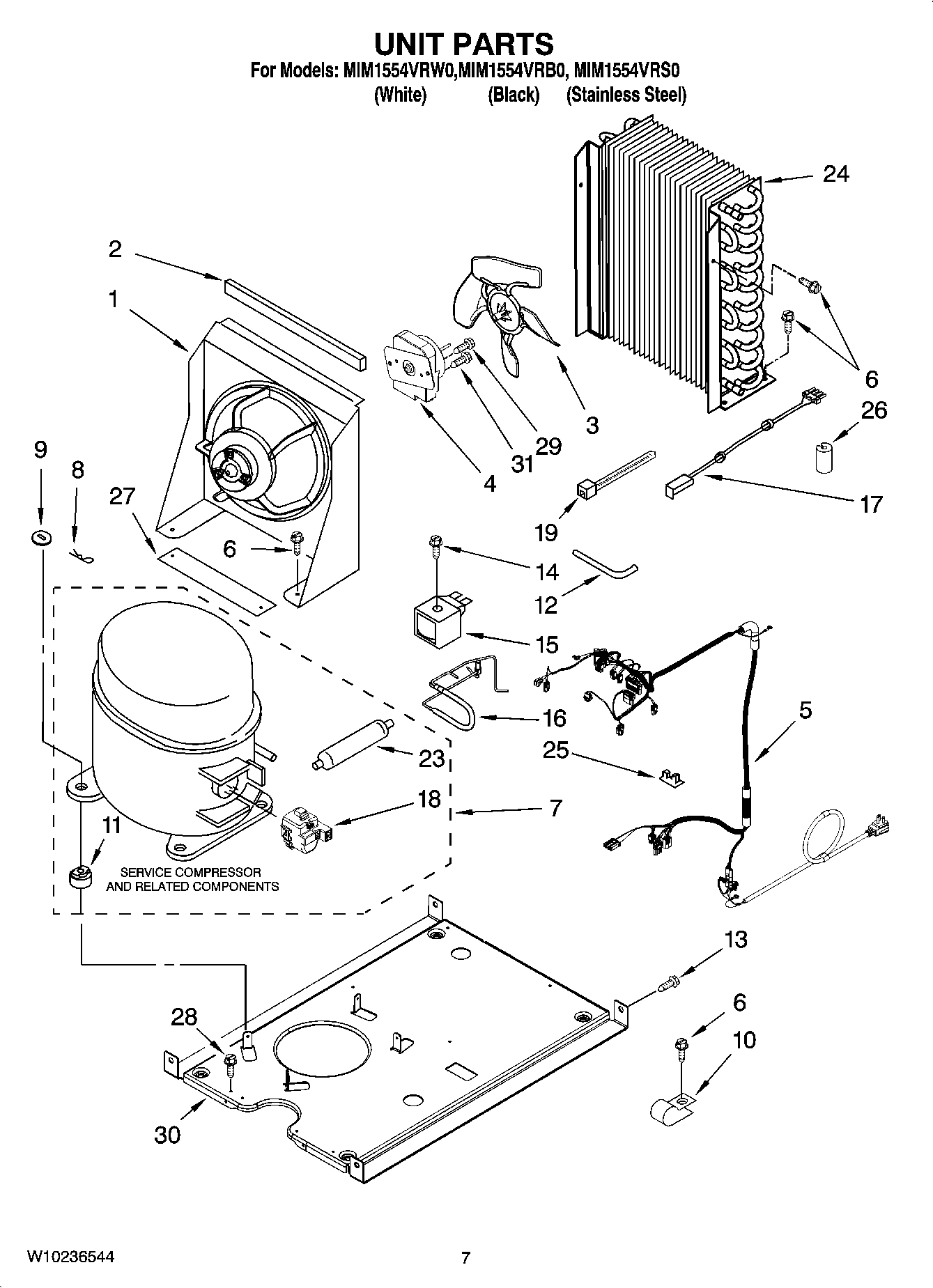

MIM1554VRS0 05 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	Valve, Access (5/16“)
NI	MAY 479976
NI	Cement, Insulation (1 Oz.)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	MAY 8537055
NI	VALVE, ACCESS (1/4“)
NI	MAY 505587
NI	MAY 503695
NI	SEALER, GUM (4 FEET)
1	BRACKET, FAN MOUNTING
2	PAD, FOAM
3	MAY 2188935
4	MAY 2315558
5	Wiring Harness, Complete Unit (Includes Power Cord
6	Screw
7	MAY W10136195
8	CLIP, COMPRESSOR MOUNTING
9	SHIM
10	CLAMP, POWER CORD
11	GROMMET, COMPRESSOR
11	MAY 4387558
12	MAY 2208415
13	MAY 489423
14	SCREW
15	MAY 759112
16	MAY 2313806
17	JUMPER, WIRE (CONDENSER FAN)
18	MAY W10136197
19	MAY 2155774
23	MAY 2319826
23	MAY 4387019
24	CONDENSER
25	Clip-Wiring
26	GROMMET, CONDENSER
27	PAD, FOAM
28	MAY 488500
29	MAY 8281197
30	MAY 2217388
31	MAY 8281196
