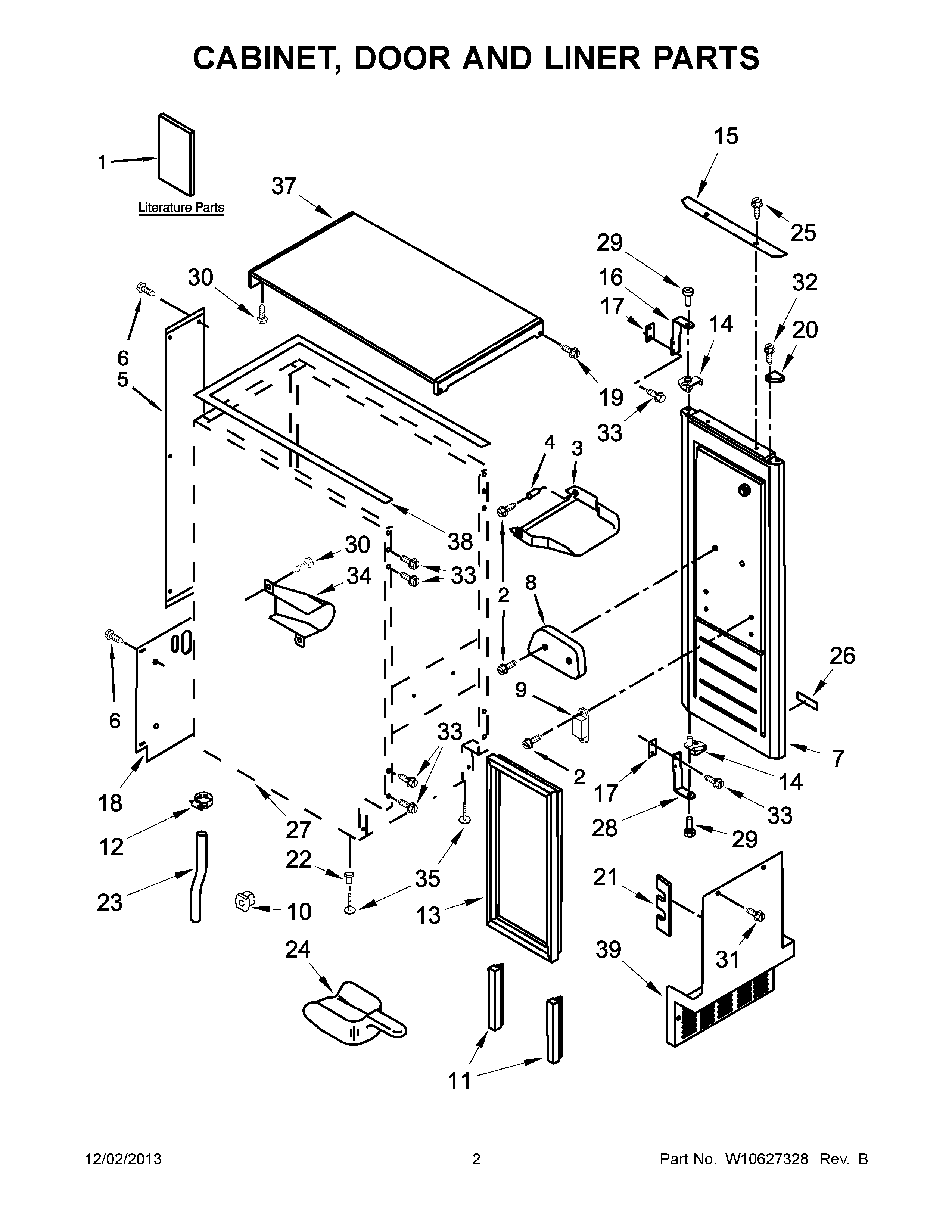

MIM1554ZRS0 02 – CABINET, DOOR AND LINER PARTS

Products

PositionProduct
1MAY W10492485
1MAY W10541614
1MAY W10541636
2SCREW (STAINLESS)
3MAY 2185742
4SPACER
5COVER, WIRING
6MAY 489442
7MAY W10517693
8CAM, DOOR
9ASSEMBLY, MAGNETIC CATCH
10NUT, PUSH-IN
11MAY 2217367
12MAY 489503
13GASKET, DOOR
14MAY W10486561
14MAY W10486559
15MAY 2208493B
16MAY W10476703
17MAY W10544734
17MAY W10544727
18Cover Unit
19SCREW (BLACK)
20MAY W10501833
20MAY W10501849
21MAY W10532250
22NUT
23MAY 2185989
24SCOOP
25SCREW
26Nameplate
27LINER (NOT A SERVICEABLE PART)
28MAY W10476696
29PIN, HINGE
30SCREW
31MAY W10531302
32SCREW
33SCREW (BLACK)
34HOLDER, SCOOP
35LEG, LEVELING
37PANEL, TOP (BLACK)
38GASKET, TOP PANEL
39Grill, Front
