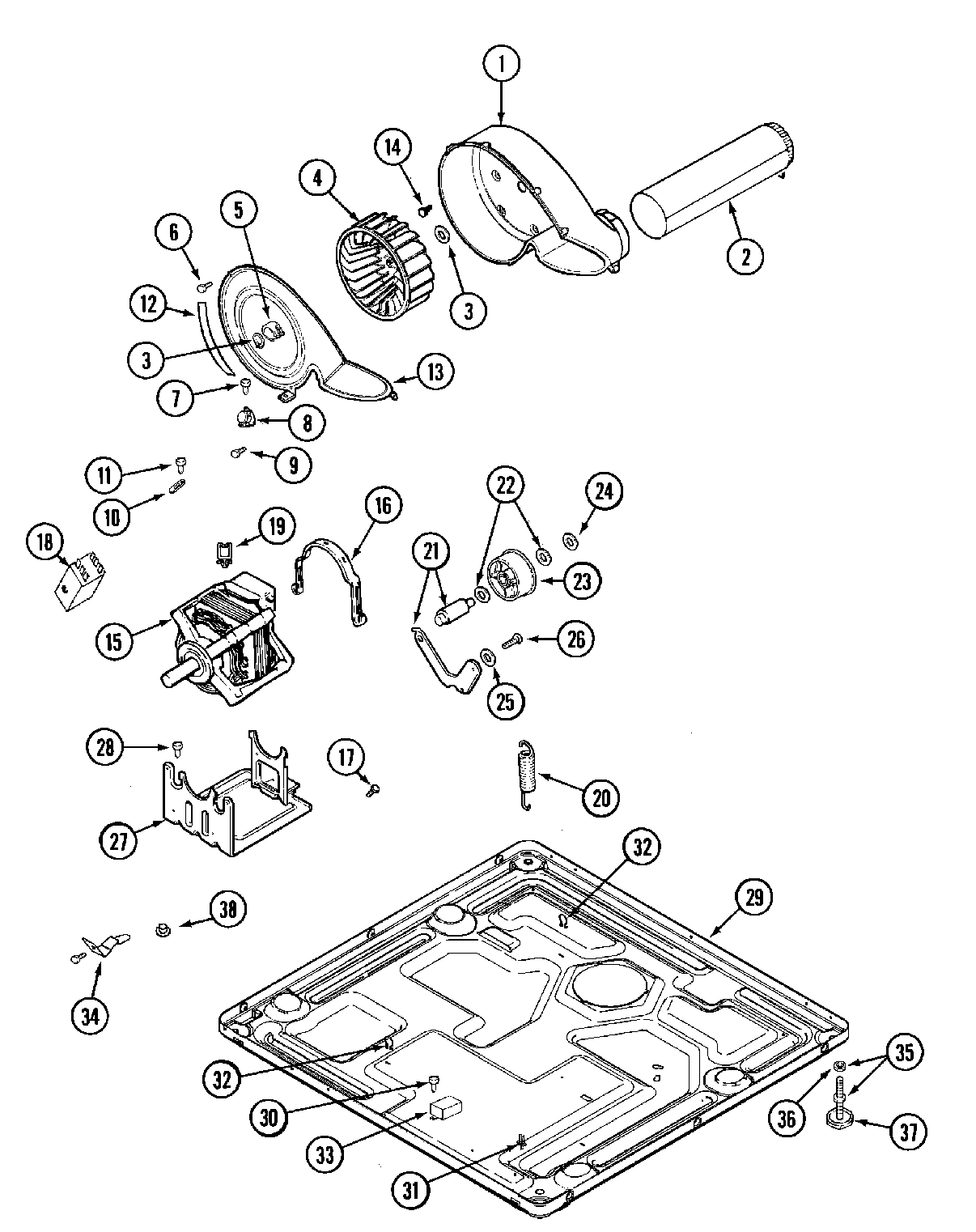

MLE15MNAZW 09 – MOTOR DRIVE

MLE15MNAZW 09 – MOTOR DRIVE

Written by

in

MLE15MNAZW 09 – MOTOR DRIVE

Products

PositionProduct
001WP33001789 Whirlpool Blower Housing Assembly
002MAY 33001800
003WP9703438 Whirlpool Snap Retaining Ring
004WP33002797 Whirlpool Wheel
00433001790 Whirlpool Blower Wheel
005WP312967 Whirlpool Clamp
006WP3400065 Whirlpool Refrigerator Screw
008WIRE, THERMOSTAT JUMPER (LWR)
008MAY 33001306
008WP694674 Whirlpool Cycling Thermostat
008PART NOT USED
009WP489128 Whirlpool Refrigerator Screw
010WP33001762 Whirlpool Dryer Thermal Fuse
012MAY 33002560
013MAY 33001796
014MAY 314818
015WP33002795 Whirlpool Drive Motor
015W10410997 Whirlpool Drive Motor
015MAY 33002462
016WPY015825 Whirlpool Motor Clip
017MAY 910343
018MAY 33001854
019MAY 33002040
020MAY 33002461
02033002459 Whirlpool Idler Spring
020MAY 33002157
021WP6-3705180 Whirlpool Idler Pulley Lever
022MAY Y312527
023WP6-3700340 Whirlpool Belt Tension Pulley Wheel
024WP354987 Whirlpool C-Clip
025WP315772 Whirlpool Sleeve
026WPY014874 Whirlpool Screw
027MAY 33001752
027MAY 33002466
028MAY Y313561
029MAY 33002623
029MAY 33002041
029MAY 33002048
029DOWEL PIN FOR HANDLE
029MAY 33002049
029MAY 33002467
029MAY 33002622
029MAY 33002050
029MAY 314568
030WP90767 Whirlpool Screw
031MAY 315471
032MAY 410490
033MAY Y313559
033MAY 33001205
033MAY 315218
034W11573574 Whirlpool Screw
034MAY Y310632
034MAY 33002043
034MAY 22002244
034MAY 22002239
034MAY 33002042
035WP8563585 Whirlpool Foot Assembly
036WP62739 Whirlpool Nut
037WP210684 Whirlpool Dishwasher Leveling Leg Pad
038MAY 33002044
