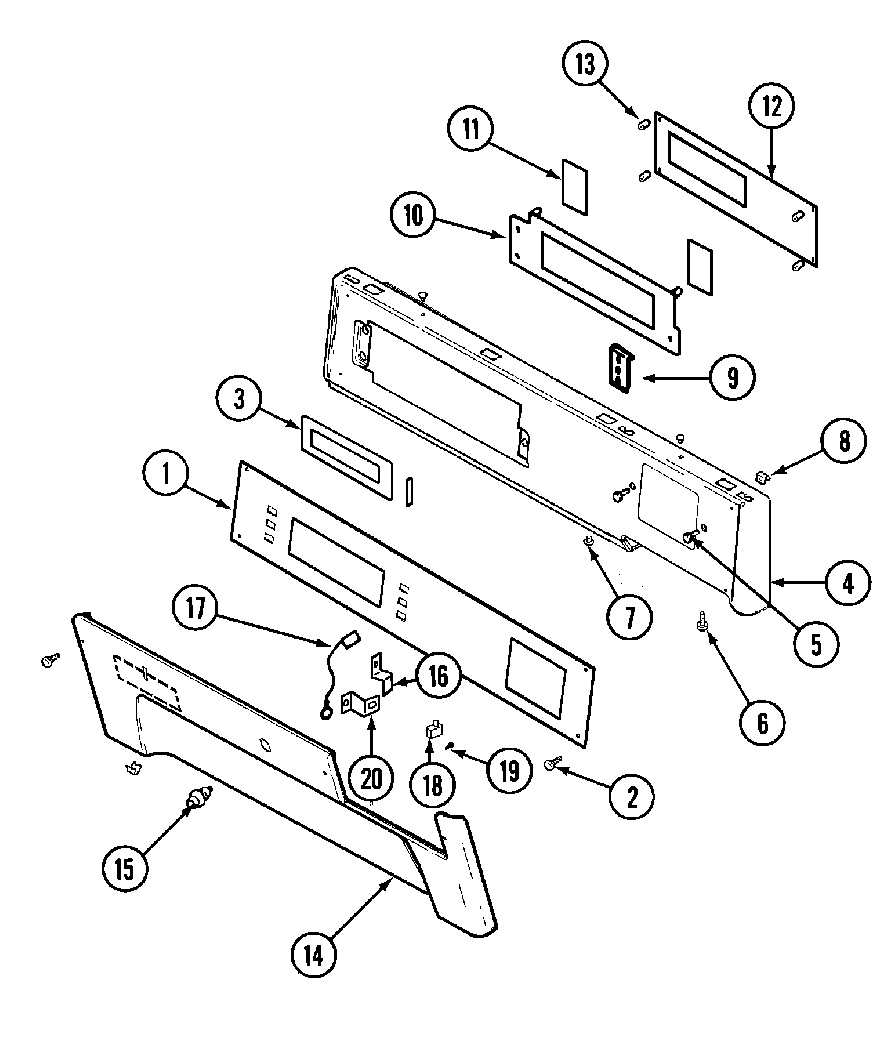

MLE15PDAYA 01 – CONTROL PANEL (UPPER)

MLE15PDAYA 01 – CONTROL PANEL (UPPER)

Written by

in

MLE15PDAYA 01 – CONTROL PANEL (UPPER)

Products

PositionProduct
001MAY 33001974
003MAY 33001209
004MAY 33002377
004MAY 33002003
004MAY 33001976
004MAY 33001975
005MAY 910186
005WP98006631 Whirlpool Screw
007MAY 33002342
007MAY 33001168
007MAY 33001132
008MAY 33001977
009WP33001156 Whirlpool Button
010MAY 33001201
011MAY 33001200
012CIRCUIT BOARD ASSEMBLY
013MAY 33001204
013M0282005 Whirlpool Nut
014MAY 33001978
014WPW10131119 Whirlpool Screw
014MAY 33001979
014MAY 33001980
014MAY 33002004
015LOCK, ACCESS DOOR
016W11165684 Whirlpool Cam
017MAY 33001981
018WPW10447152 Whirlpool VLT Switch
019MAY 912012
020MAY 33001982
021MAY 33001994
022MAY 33002060
023DOWEL PIN FOR HANDLE
023W11573574 Whirlpool Screw
