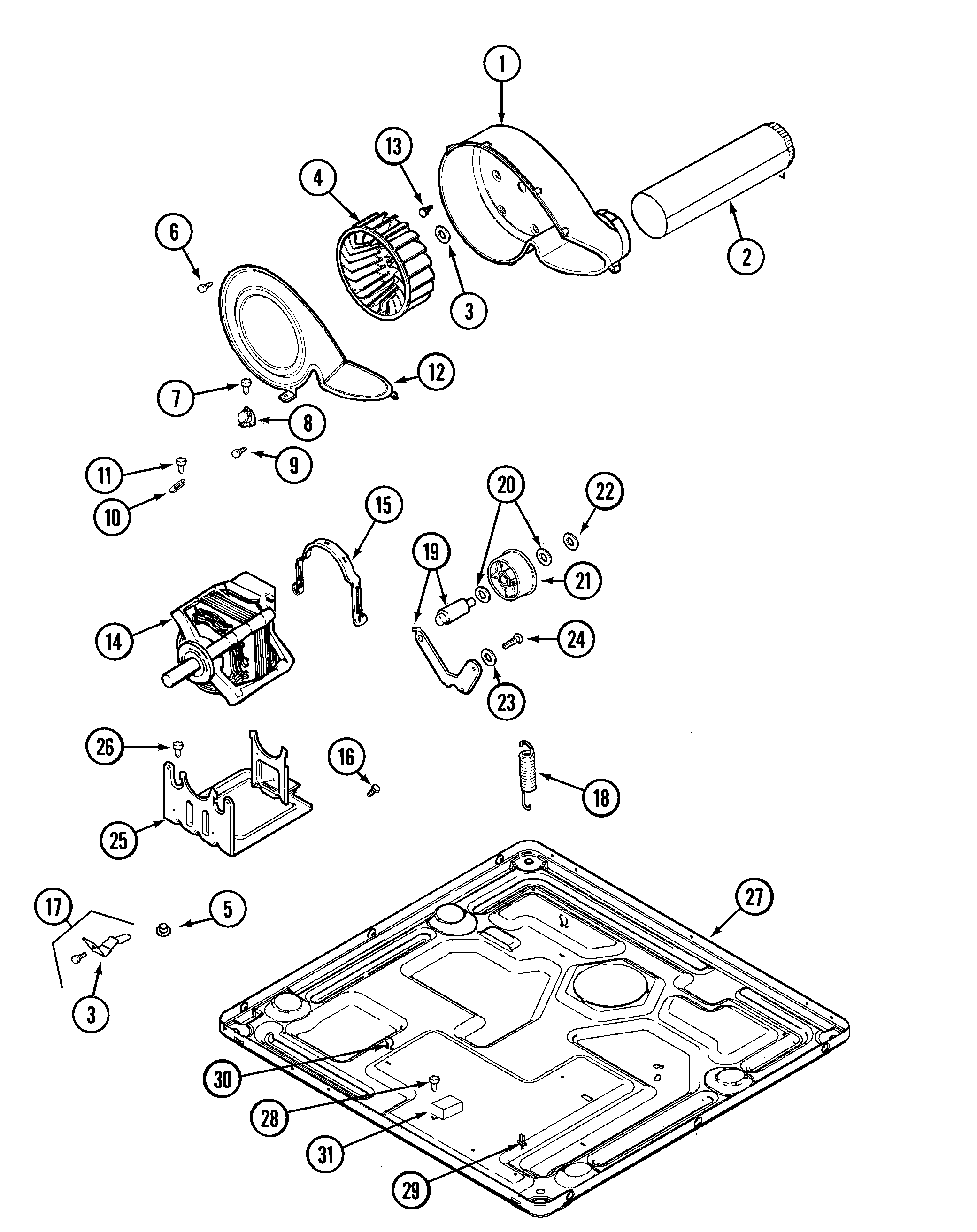

MLE19PDDGW 08 – MOTOR DRIVE (DRYER)

MLE19PDDGW 08 – MOTOR DRIVE (DRYER)

Written by

in

MLE19PDDGW 08 – MOTOR DRIVE (DRYER)

Products

PositionProduct
001WP33001789 Whirlpool Blower Housing Assembly
002DUCT ASSY., EXHAUST
003MAY 33002758
003W11573574 Whirlpool Screw
003MAY 33002757
004WP33002797 Whirlpool Wheel
005MAY 33002044
006WP3400065 Whirlpool Refrigerator Screw
008WP33303391 Whirlpool Thermostat
008WP694674 Whirlpool Cycling Thermostat
010WP33001762 Whirlpool Dryer Thermal Fuse
011WP489128 Whirlpool Refrigerator Screw
012MAY 33002711
014MAY 22003481
015WPY015825 Whirlpool Motor Clip
016MAY 910343
017DOWEL PIN FOR HANDLE
017(INCL RT/LT BRKT & SCREWS)
01833002459 Whirlpool Idler Spring
019WP6-3705180 Whirlpool Idler Pulley Lever
020MAY Y312527
021WP6-3700340 Whirlpool Belt Tension Pulley Wheel
022WP354987 Whirlpool C-Clip
023WP315772 Whirlpool Sleeve
024WPY014874 Whirlpool Screw
025MAY 33002817
026MAY Y313561
027MAY 33002049
027MAY 33002467
027MAY 314568
027MAY 33002050
028WP3177991 Whirlpool Screw
029MAY 33001989
030MAY 410490
031MAY 33002508
031MAY 22003778
031MAY 315218
