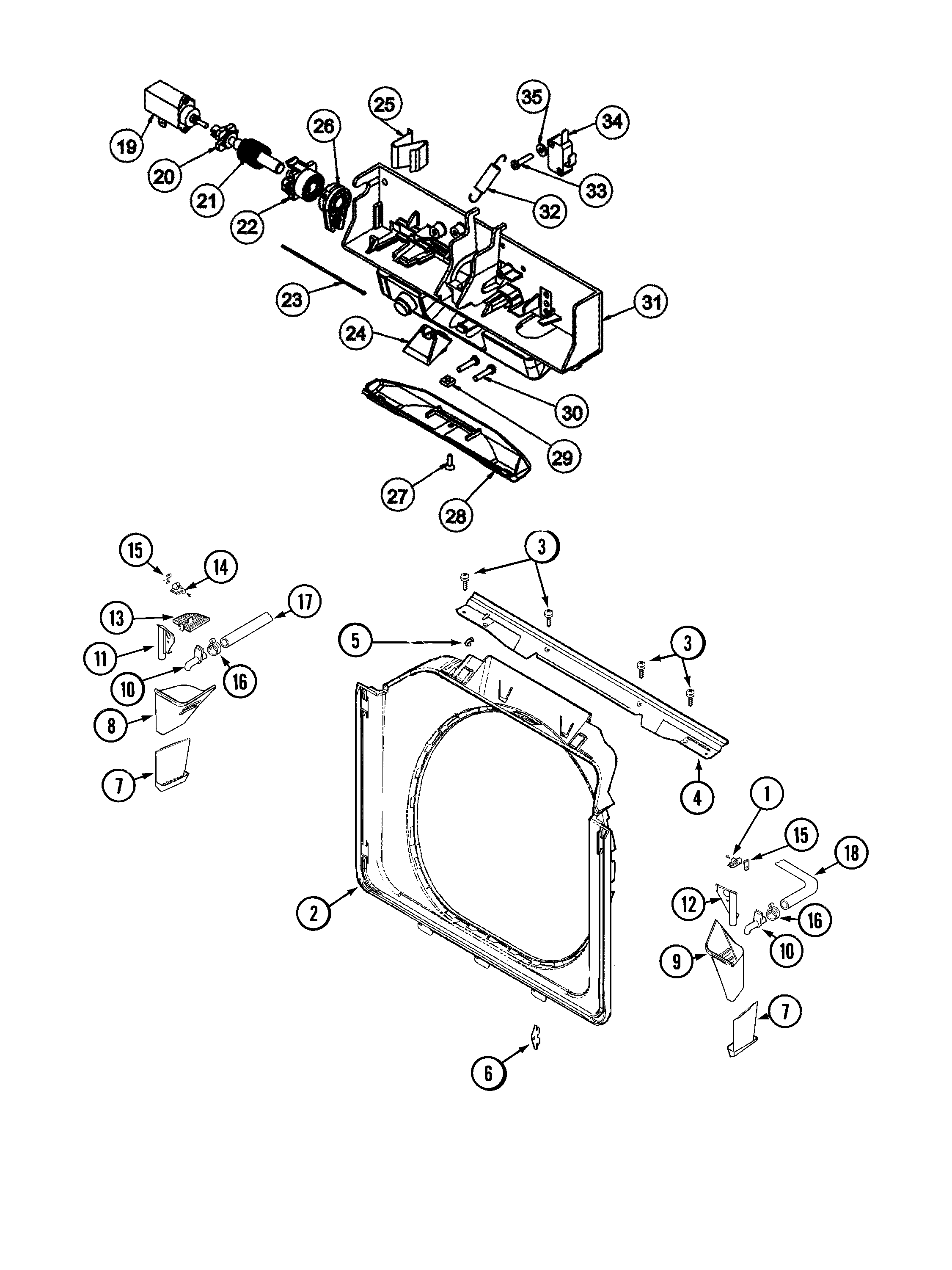

MLE19PDDGW 15 – DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

MLE19PDDGW 15 – DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

Written by

in

MLE19PDDGW 15 – DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

Products

PositionProduct
001MAY 33002209
002MAY 22002506
003W11573574 Whirlpool Screw
004MAY 33002203
004MAY 22003908
004MAY 33002477
005WP308605 Whirlpool Refrigerator Clamp
006WP33001764 Whirlpool Cover
006WP33001787 Whirlpool Screw
007MAY 33002195
007MAY 33002196
008MAY 33002197
009MAY 33002198
010MAY 33002199
011MAY 33002200
012WP33002201 Whirlpool Fabric Cap
013MAY 33002204
014WP400021-1 Whirlpool Screw
014MAY 33002205
015MAY 33002206
016WP489503 Whirlpool Refrigerator Clamp
017WP33002207 Whirlpool Hose
018MAY 22003653
018MAY 33002208
01912002535 Whirlpool Dispenser Wax Motor Kit
020MAY 22003718
022MAY 22003715
023MAY 22002164
024MAY 22003055
025MAY 22003716
02622003717 Whirlpool Latch Spring
027WP241877 Whirlpool Screw
028MAY 22002957
029MAY 22003720
030MAY 22003719
031MAY 33002783
032MAY 22002158
033MAY 22001352
034MAY 33002782
035MAY 22002165
036MAY 33002785
037MAY 33002784
038MAY 22002487
038MAY 22002485
038MAY 22002484
038MAY 22002486
