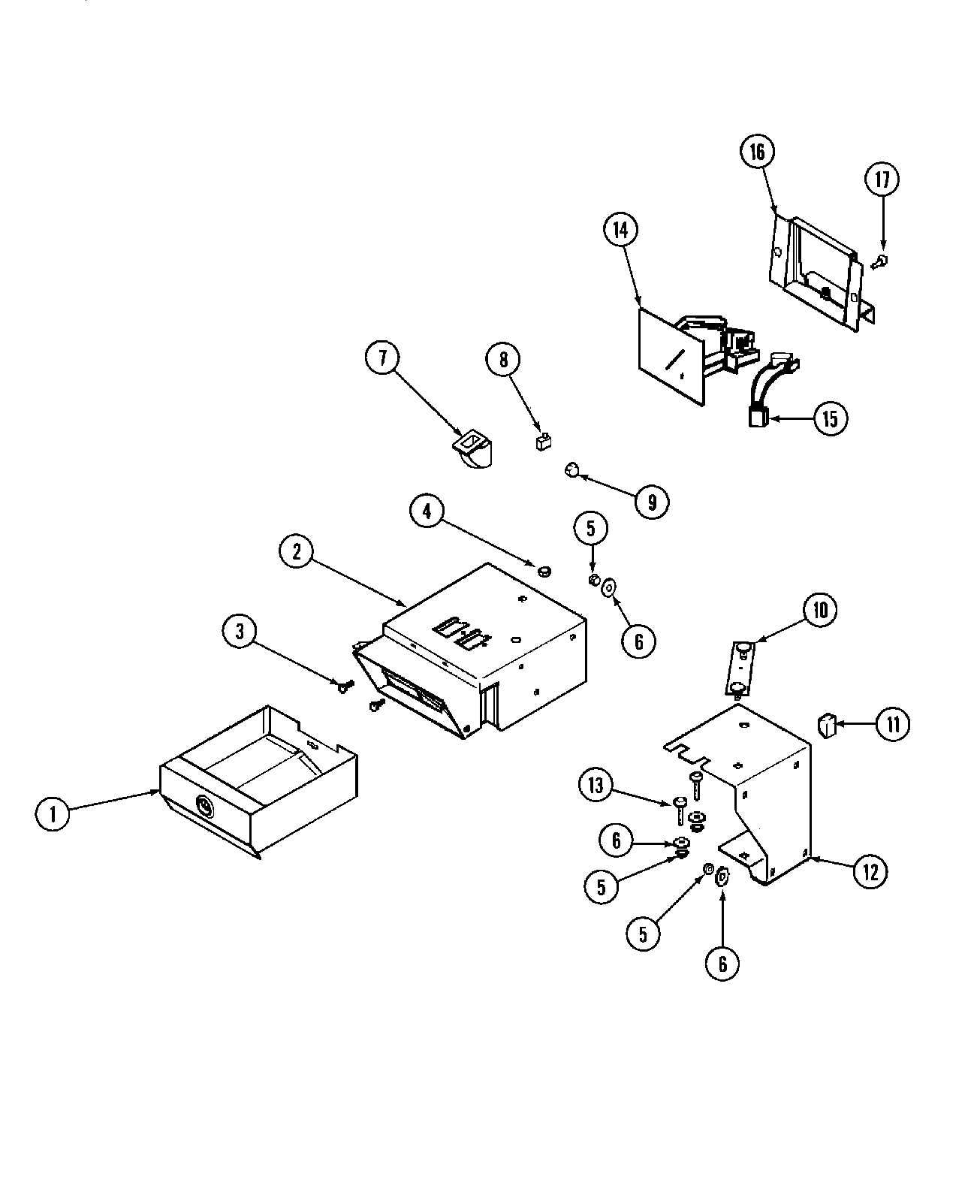

MLE19PDDYW 02 – CONTROL CENTER (DRYER)

Products

PositionProduct
001MAY Y33001983
002MAY Y33001986
003SCREW, COIN DROP BRACKET
004WP62739 Whirlpool Nut
005MAY Y052734
006WP312535 Whirlpool Washer
007MAY 314635
008WPW10131838 Whirlpool Voltage Switch
009DOWEL PIN FOR HANDLE
010MAY 22001810
011MAY 33001989
012MAY 33001990
013MAY 33001991
014MAY 216200
014MAY 33002647
014WP22004112 Whirlpool Coin Drop
015WP3395530 Whirlpool Screw
016MAY 33001992
017MAY 910181
017W11684507 Whirlpool Screw
