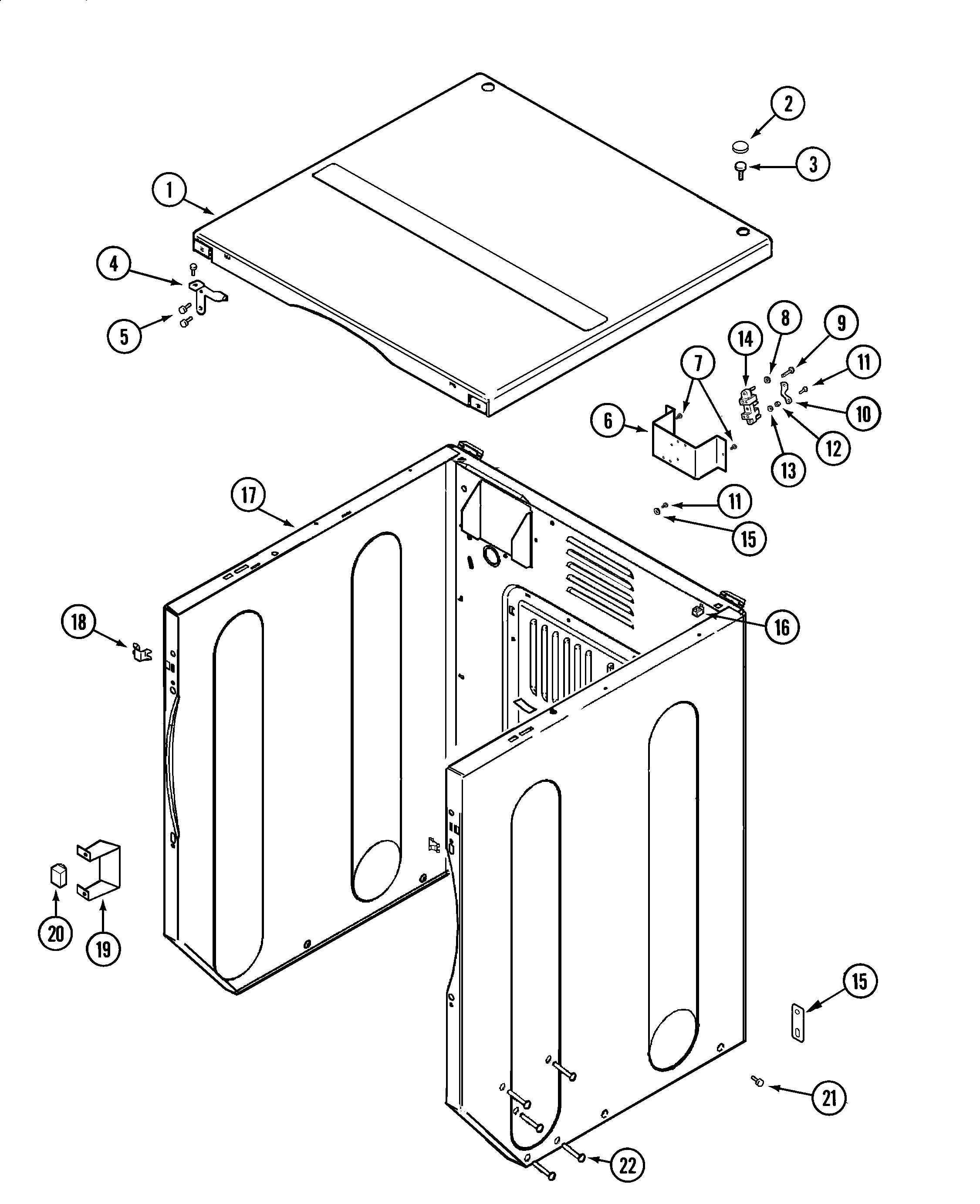

MLE19PDDYW 03 – CABINET-FRONT (DRYER)

MLE19PDDYW 03 – CABINET-FRONT (DRYER)

Written by

in

MLE19PDDYW 03 – CABINET-FRONT (DRYER)

Products

PositionProduct
001MAY 33002124
002MAY 33001997
003MAY 22001883
004MAY 33001999
004MAY 33001998
007W11573574 Whirlpool Screw
008WPY311270 Whirlpool Washer TE
009SCREW, No.10-24 X 3/4 INCH—–O
010PART NOT USED
012WP112432 Whirlpool Nut Assembly
013WP311093 Whirlpool Washer 7
014W11705611 Whirlpool Block Ter
014MAY 33002182
014MAY 315471
014DOWEL PIN FOR HANDLE
015MAY 33002060
016WP22001502 Whirlpool Fastener
017MAY 33002811
018MAY 33002004
019MAY 33002002
020MAY 33002969
020MAY Y313561
020MAY 306398
021213007 Whirlpool Screw #12
022MAY 33001991
