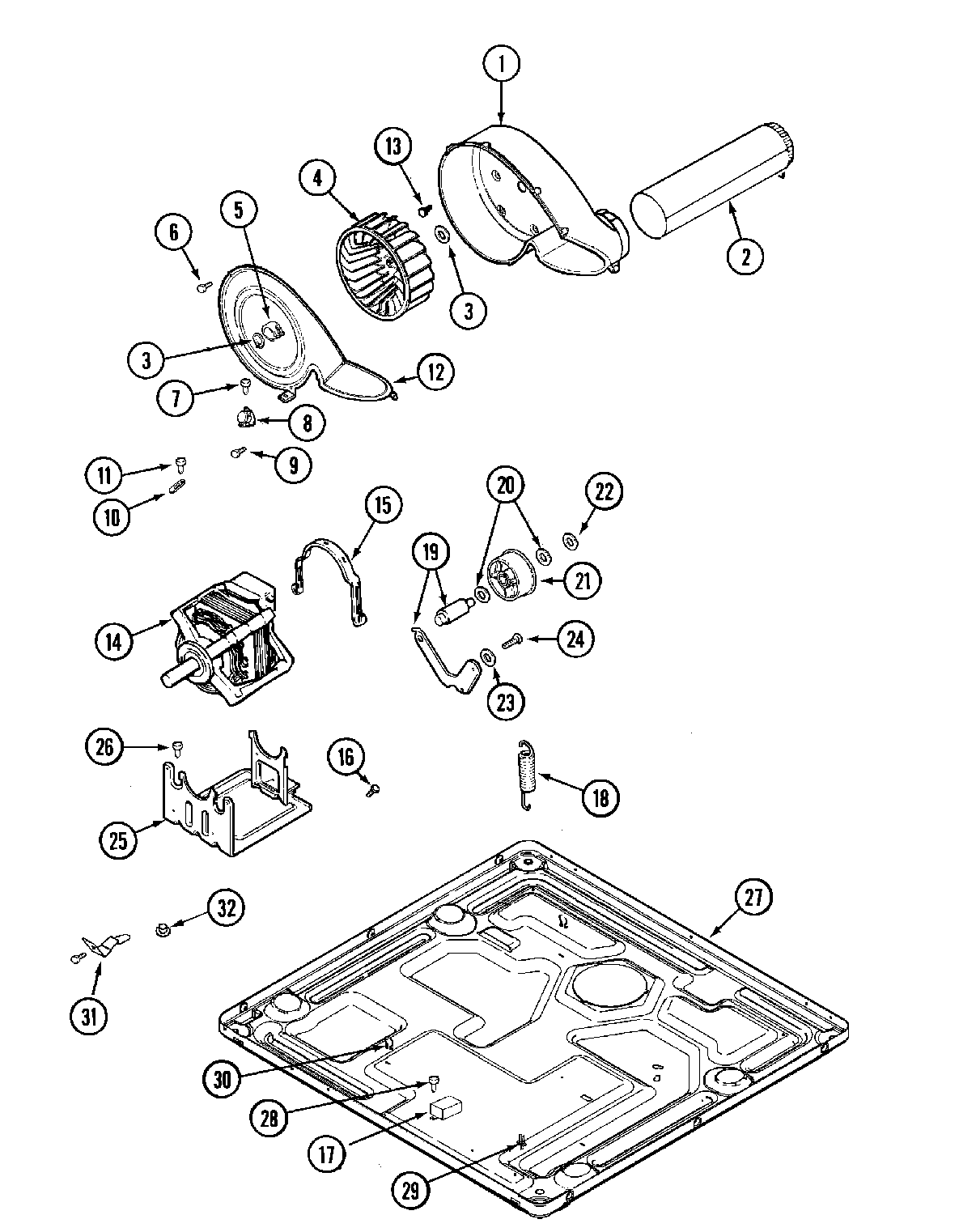

MLE19PNAYW 07 – MOTOR DRIVE (DRYER)

MLE19PNAYW 07 – MOTOR DRIVE (DRYER)

Written by

in

MLE19PNAYW 07 – MOTOR DRIVE (DRYER)

Products

PositionProduct
001WP33001789 Whirlpool Blower Housing Assembly
002DUCT ASSY., EXHAUST
003WP9703438 Whirlpool Snap Retaining Ring
00433001790 Whirlpool Blower Wheel
005WP312967 Whirlpool Clamp
006WP3400065 Whirlpool Refrigerator Screw
008WP694674 Whirlpool Cycling Thermostat
008WP33303391 Whirlpool Thermostat
010WP33001762 Whirlpool Dryer Thermal Fuse
011WP489128 Whirlpool Refrigerator Screw
012MAY 33001796
013MAY Y310632
014W10410997 Whirlpool Drive Motor
015WPY015825 Whirlpool Motor Clip
016WP488234 Whirlpool Air Conditioner Screw
017MAY 315218
017WPW10133285 Whirlpool Transformer
01833002459 Whirlpool Idler Spring
019WP6-3705180 Whirlpool Idler Pulley Lever
020MAY Y312527
021WP6-3700340 Whirlpool Belt Tension Pulley Wheel
022WP354987 Whirlpool C-Clip
023WP315772 Whirlpool Sleeve
024WPY014874 Whirlpool Screw
025MAY 33002466
026MAY Y313561
027MAY 33002050
027MAY 33002467
027MAY 33002049
027MAY 22003605
027MAY 314568
028WP3177991 Whirlpool Screw
029MAY 22003298
030MAY 410490
031W11573574 Whirlpool Screw
031MAY 33002042
031MAY 33002043
032MAY 33002044
