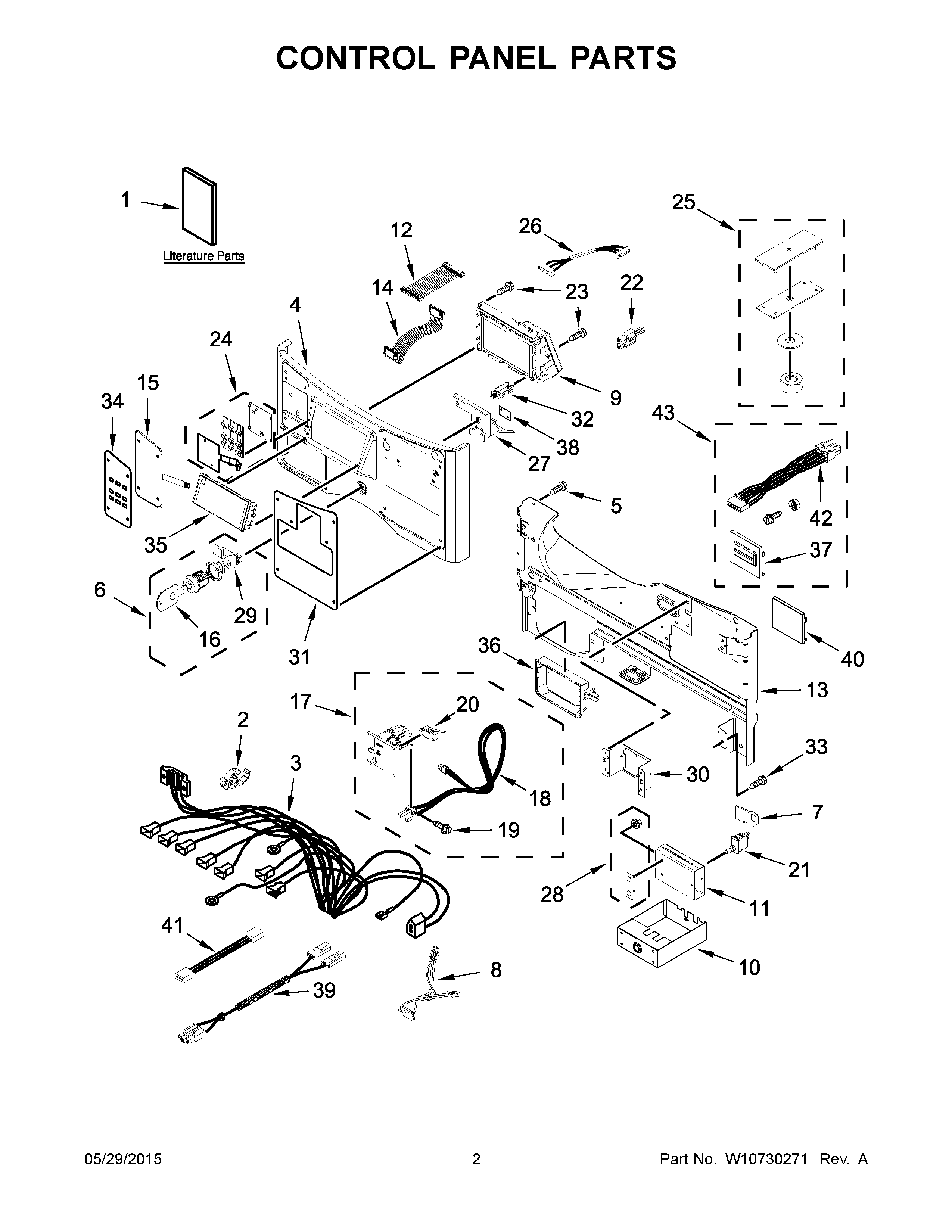

MLE21PNAGW0 02 – CONTROL PANEL PARTS

Products

Position	Product
1D	MAY W10589763
1	MAY W10589664
1B	MAY W10589663
1A	MAY W10335470
1C	MAY W10589666
1E	MAY W10589667
1F	MAY W10589764
2	CLIP, HARNESS
3	MAY W10745627
3A	MAY W10745626
4	MAY W10744556
4A	MAY W10744557
5	SCREW
6	SERVICE & PROGRAMMING LOCK
7	MAY W10160652
8	MAY W10242896
9	MAY W10745436
9A	MAY W10745437
10	COIN BOX
11	VAULT BODY, ASSEMBLY
12	MAY W10167482
13	MAY W10198369
14	MAY W10167484
15	MAY W10744979
16	MAY W10114740
17A	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
17	Coin Drop Assy.
18A	COIN SENSOR ASSY, COIN 2 (BLACK)
18	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
19	SCREW
20	MAY W10133281
21	SWITCH, VAULT SERVICE DOOR
22	JUMPER, SWITCH SERVICE/VAULT
23	SCREW
24	MAY W10198198
25	MAY W10169579
26	MAY W10242897
27	SUPPORT-CONSOLE
28	MOUNTING STRAP, WELD ASSEMBLY
29	MAY W10233256
30	BRACKET - PD COIN DROP & PN NON COIN
30A	BRACKET PR - CARD READER
31A	MAY W10749098
31	MAY W10198335
32	Wire Clip (5)
33	SCREW
34	BUTTONS, FASCIA
35	WINDOW-DISPLAY
36	MAY W10198345
37	MAY W10198367
38	MAY W10151156
39	MAY W10300896
40	MAY W10198366
41	MAY W10342230
42	MAY W10239515
43	MAY W10198451
