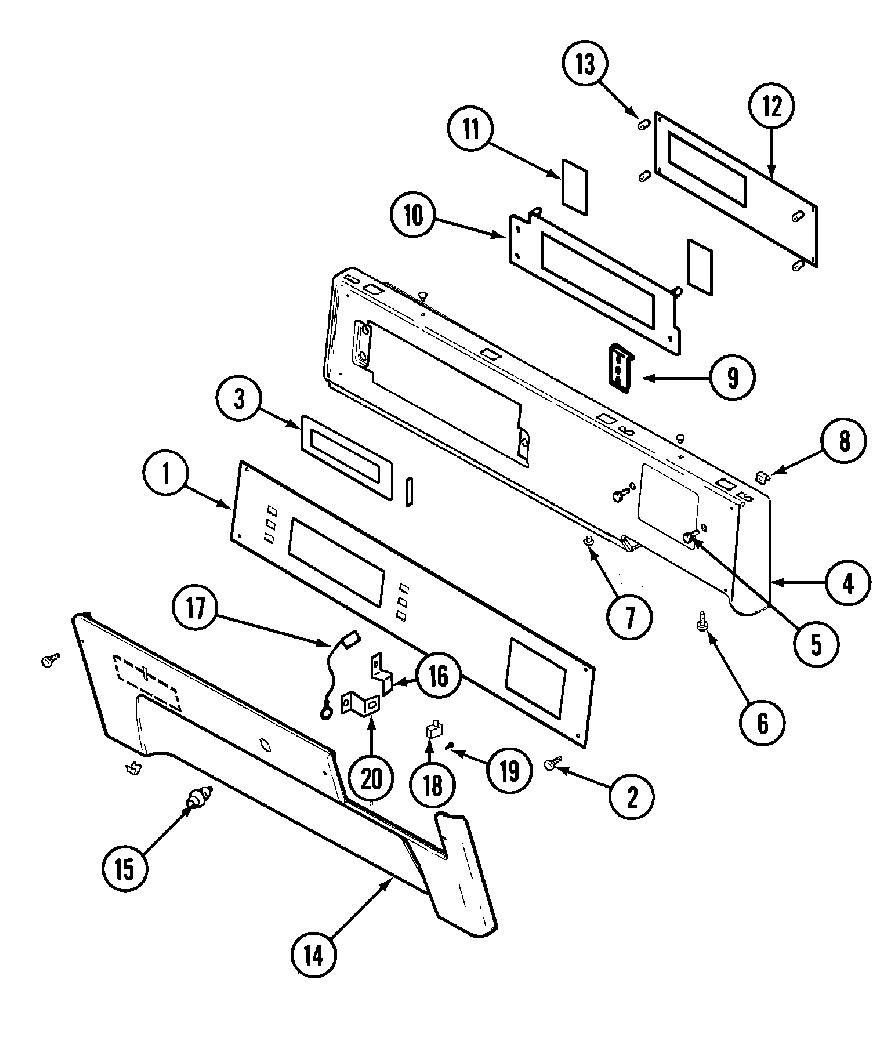

MLE23PRAYW 01 – CONTROL PANEL (UPPER)

MLE23PRAYW 01 – CONTROL PANEL (UPPER)

Written by

in

MLE23PRAYW 01 – CONTROL PANEL (UPPER)

Products

PositionProduct
001MAY 33002263
001MAY 22001976
001MAY 22002354
003WPW10133268 Whirlpool Cover
004PANEL, CONTROL
004MAY 33002003
005MAY 910186
005WP98006631 Whirlpool Screw
007MAY 33001132
008MAY 33001977
009WPW10424308 Whirlpool Push Button
010MAY 33002155
011WPW10133278 Whirlpool Switch
012MAY 33002266
013MAY 33001204
014MAY 33001980
014MAY 33002262
014MAY 33002004
014WPW10131119 Whirlpool Screw
015LOCK, ACCESS DOOR
016W11165684 Whirlpool Cam
017MAY 33001981
018WPW10447152 Whirlpool VLT Switch
019MAY 912012
020MAY 33001982
021MAY 33002271
021DOWEL PIN FOR HANDLE
022MAY 33002060
023W11573574 Whirlpool Screw
024MAY 33002434
025M0282005 Whirlpool Nut
