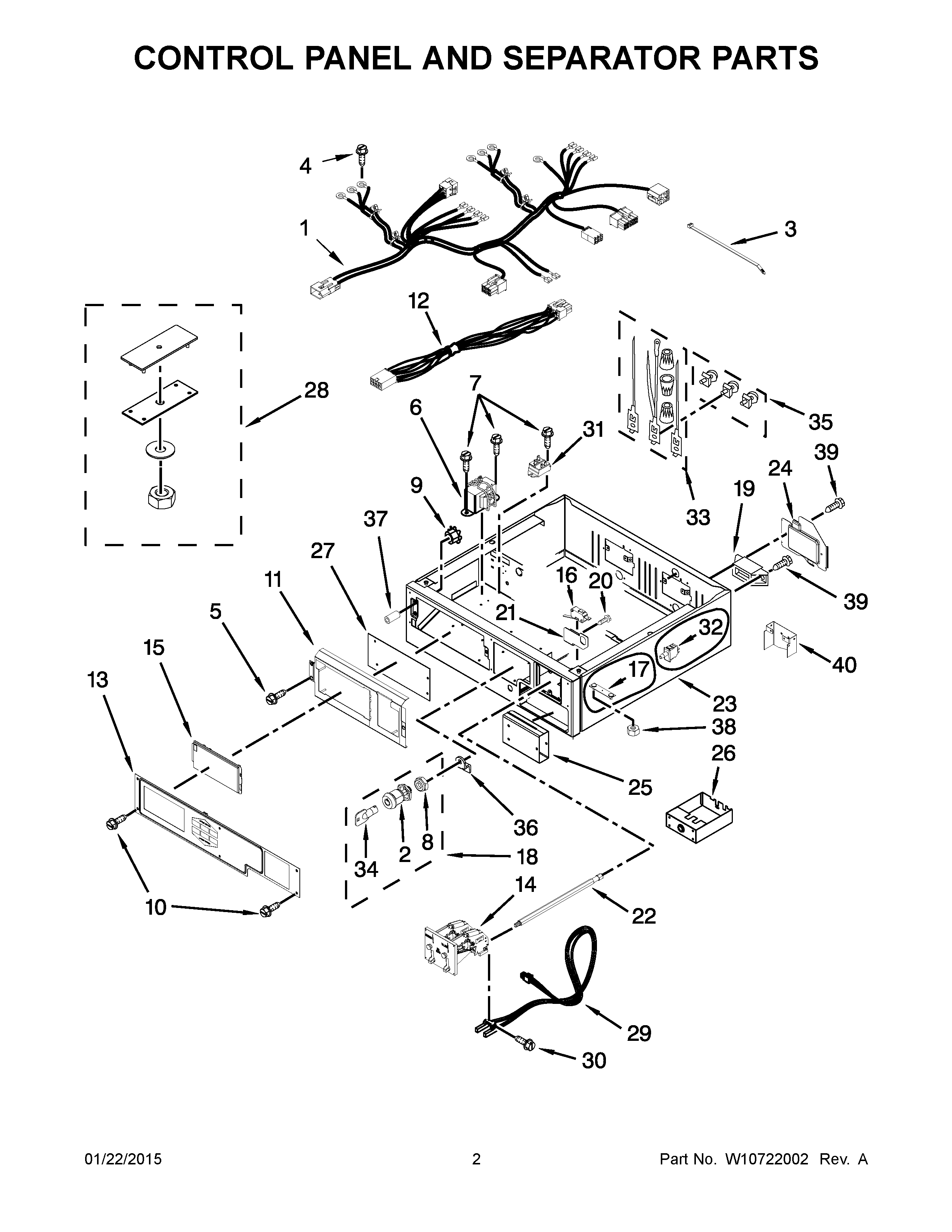

MLE26PDBZW0 02 – CONTROL PANEL AND SEPARATOR PARTSadmin2025-04-26T11:31:26+00:00MLE26PDBZW0 02 – CONTROL PANEL AND SEPARATOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10702050 |
| 2 | NUT, HEX |
| 3 | MAY 8529895 |
| 4 | MAY 8533974 |
| 5 | MAY W10140652 |
| 6 | MAY W10133285 |
| 7 | MAY 8533971 |
| 8 | NUT, HEX |
| 9 | NUT |
| 10 | SCREW |
| 11 | MAY W10657185 |
| 12 | MAY W10111027 |
| 13 | MAY W10684165 |
| 14 | ASSEMBLY, DUAL COIN DROP, MDE20PDAZW0 |
| 15 | MAY W10133268 |
| 16 | MAY W10447152 |
| 17 | MOUNTING STRAP, WELD ASSEMBLY |
| 18 | ASSEMBLY, LOCK ACCESS DOOR |
| 19 | MAY W10237321 |
| 20 | SCREW, 4-40 X 5/8 |
| 21 | MAY W10160652 |
| 22 | MAY W10137319 |
| 23 | MAY W10159849 |
| 24 | MAY W10196677 |
| 25 | VAULT BODY, ASSEMBLY |
| 26 | COIN BOX |
| 27 | MAY W10678217 |
| 28 | MAY W10169579 |
| 29 | COIN-OPTIC SENSOR ASSEMBLY (WHITE) |
| 29A | COIN SENSOR ASSY, COIN 2 (BLACK) |
| 30 | SCREW |
| 31 | MAY W10133335 |
| 32 | MAY W10131838 |
| 33 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 34 | KEY, ACCESS DOOR |
| 35 | MAY 279393 |
| 36 | CAM-LOCK |
| 37 | STANDOFF, CIRCUIT BOARD |
| 38 | NUT, HEX (LEFT HAND THREAD) |
| 39 | SCREW |
| 40 | MAY W10192090 |
