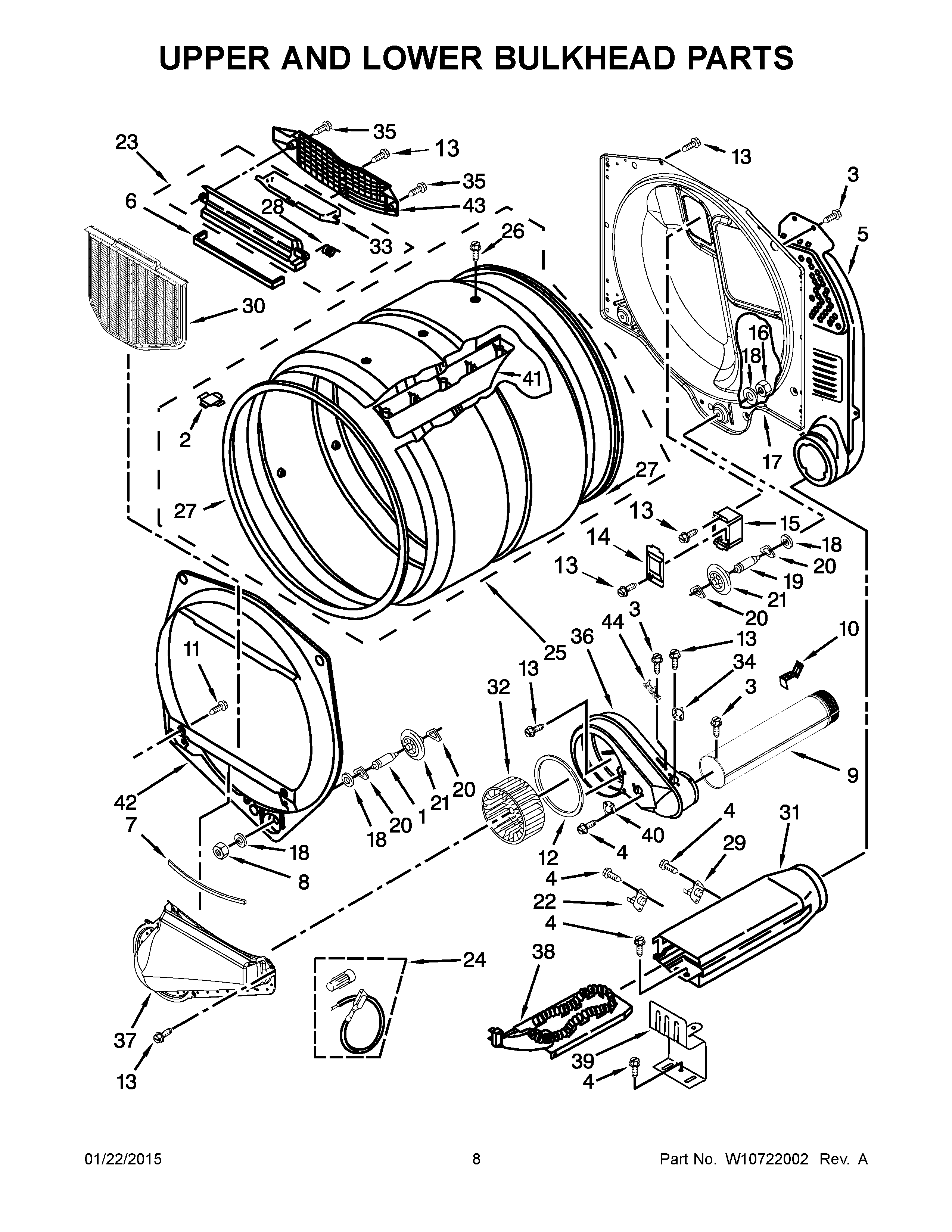

MLE26PDBZW0 05 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2Plug, Drum Hole
3MAY 8533971
4SCREW,8-18 X 3/8
5ASSEMBLY, AIR DUCT
6MAY 697813
7MAY 697814
8NUT, HEX
9PIPE, EXHAUST
10CLIP, EXHAUST
11SCREW
12SEAL, PLATE COVER
13SCREW
14MAY 3402841
15MAY 8578825
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 3391914
23ASSEMBLY, OUTLET HOUSING
24BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
25ASSEMBLY, DRUM
26MAY W10219342
27MAY W10521118
28Spring, Lint Screen Door
29MAY 8318314
30LINT SCREEN (WHITE)
31ASSEMBLY, WELD HEATER BOX
32MAY W10349492
33MAY W10685668
34THERMOSTAT
35SCREW
36HOUSING, BLOWER
37Lint Duct Assembly
38ELEMENT, HEATER MDE20MNAZW0
39MAY 8066099
40THERMOSTAT 155° F (ELECTRONIC)
41BAFFLE, DRUM
42BULKHEAD, FRONT
43GRILL, OUTLET
44Fuse, Thermal (91 C)
