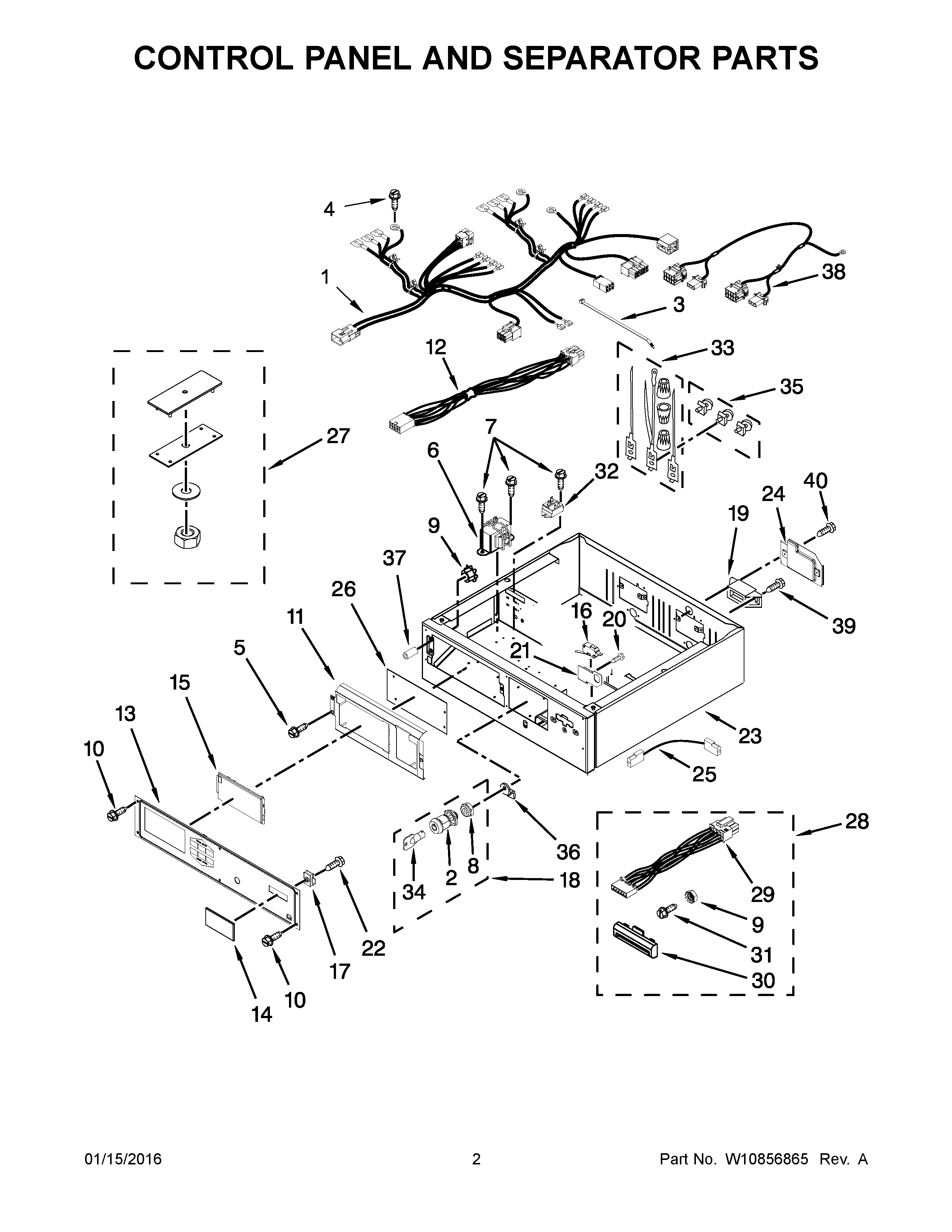

MLE26PRBYW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
1	MAY W10807485
2	NUT, HEX
3	CABLE TIE
4	SCREW
5	MAY W10140652
6	MAY W10133285
7	MAY 8533971
8	NUT, HEX
9	NUT
10	SCREW
11	MAY W10657185
12	MAY W10111027
13	MAY W10678216
14	COVER, CARD READER
15	MAY W10133268
16	MAY W10447152
17	MAY W10145157
18	ASSEMBLY, LOCK ACCESS DOOR
19	MAY 3397659
20	SCREW, 4-40 X 5/8
21	MAY W10160652
22	MAY 3400618
23	MAY W10862446
24	MAY W10850065
25	MAY W10769481
26	MAY W10678217
27	MAY W10169579
28	MAY W10135263
29	MAY W10239515
30	MAY W10163036
31	SCREW
32	MAY W10827406
33	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
34	KEY, ACCESS DOOR
35	MAY 279393
36	CAM-LOCK
37	STANDOFF, CIRCUIT BOARD
39	SCREW
40	Screw, 8-18 x 3/8
