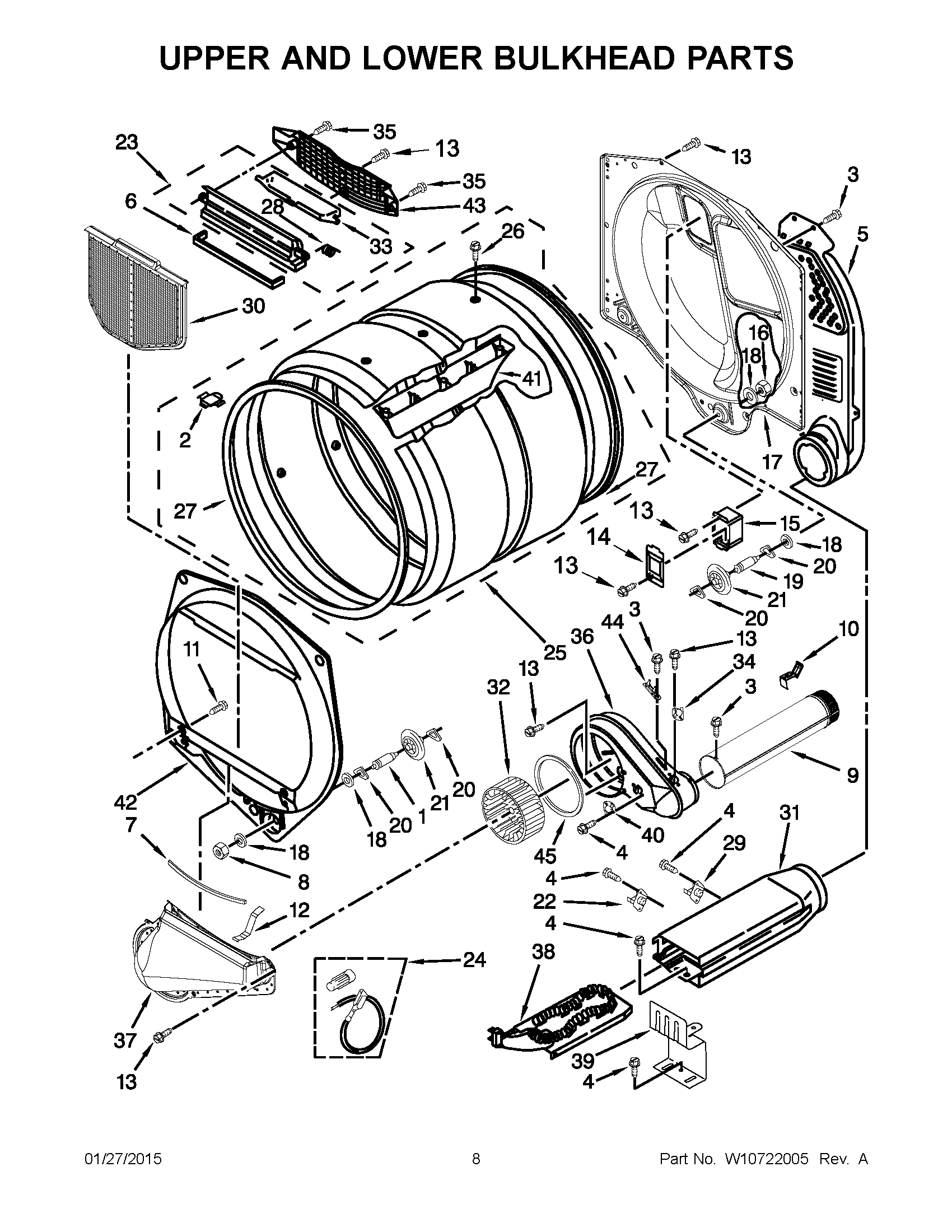

MLE26PRBZW0 05 – UPPER AND LOWER BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	Plug, Drum Hole
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	CLIP, SPRING
13	SCREW
14	MAY 3402841
15	MAY 8578825
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 3391914
23	ASSEMBLY, OUTLET HOUSING
24	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	Spring, Lint Screen Door
29	MAY 8318314
30	LINT SCREEN (WHITE)
31	ASSEMBLY, WELD HEATER BOX
32	MAY W10349492
33	MAY W10685668
34	THERMOSTAT
35	SCREW
36	HOUSING, BLOWER
37	Lint Duct Assembly
38	ELEMENT, HEATER MDE20MNAZW0
39	MAY 8066099
40	THERMOSTAT 155Â° F (ELECTRONIC)
41	BAFFLE, DRUM
42	BULKHEAD, FRONT
43	GRILL, OUTLET
44	Fuse, Thermal (91 C)
45	SEAL, PLATE COVER
