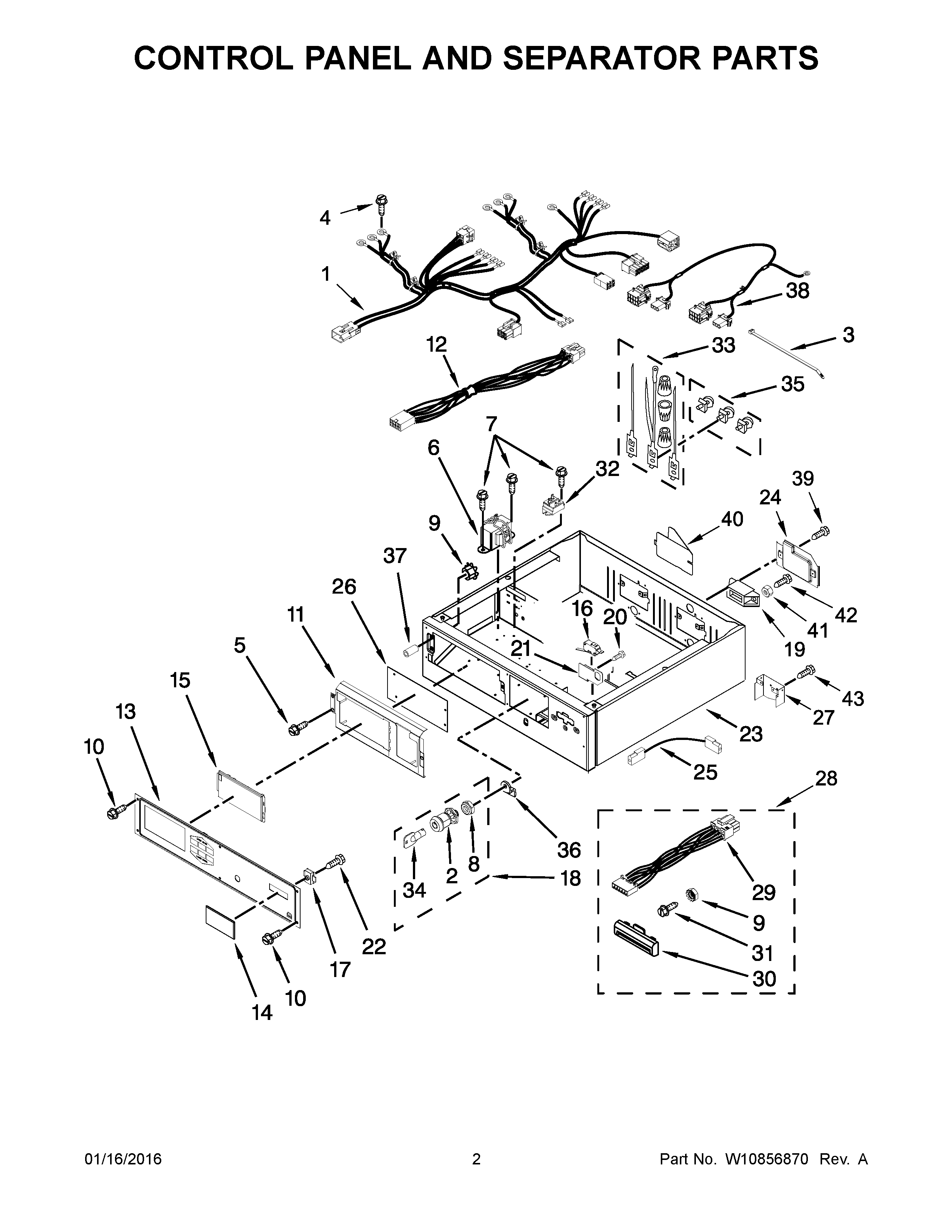

MLE26PRBZW1 02 – CONTROL PANEL AND SEPARATOR PARTS

MLE26PRBZW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

MLE26PRBZW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1MAY W10807487
2NUT, HEX
3CABLE TIE
4SCREW
5MAY W10140652
6MAY W10133285
7MAY 8533971
8NUT, HEX
9NUT
10SCREW
11MAY W10657185
12MAY W10111027
13MAY W10678216
14COVER, CARD READER
15MAY W10133268
16MAY W10447152
17MAY W10145157
18ASSEMBLY, LOCK ACCESS DOOR
19MAY W10237321
20SCREW, 4-40 X 5/8
21MAY W10160652
22MAY 3400618
23MAY W10862446
24MAY W10850065
25MAY W10769481
26MAY W10678217
27MAY W10192090
28MAY W10135263
29MAY W10239515
30MAY W10163036
31SCREW
32MAY W10827406
33TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
34KEY, ACCESS DOOR
35MAY 279393
36CAM-LOCK
37STANDOFF, CIRCUIT BOARD
38MAY W10807493
39Screw, 8-18 x 3/8
40MAY 3396795
41SCREW
42SCREW
43Screw,8-18 x 11/32
