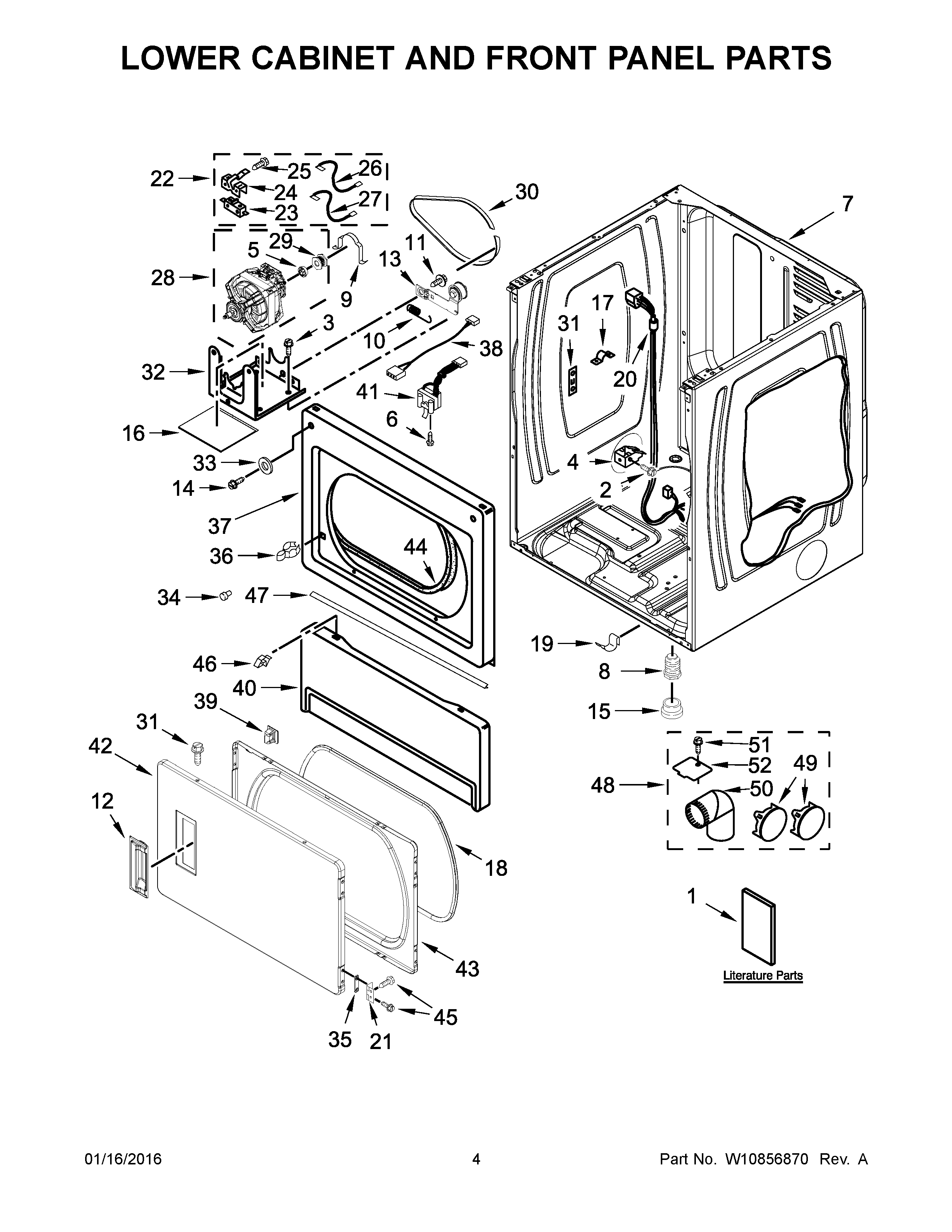

MLE26PRBZW1 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1A	MAY W10135168
1	MAY W10761033
1B	MAY W10738550
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	MAY 3393657
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	Handle, Door (White)
13	PULLEY-IDLER ASSEMBLY
14	SCREW
15	BOOT, FOOT
16	DAPENING PANEL
17	Clip
18	MAY 3390735
19	CLIP
20	MAY W10807486
21	ASSEMBLY, HINGE & PIN (SILVER)
22	Switch, Broken Belt
23	MAY 3394881
24	MAY 8066120
25	Screw, 6-20 x 1-1/16
26	MAY W10167612
27	Wire, Jumper (Broken Belt Switch)
28	MOTOR
29	PULLEY, MOTOR
30	MAY 3387610
31	SCREW
32	MAY 3387118
33	WASHER
34	BUMPER
35	PLUG, HINGE SCREW
36	MAY 696144
37	PANEL, FRONT (WHITE)
38	JUMPER, DOOR SWITCH
39	MAY 3392538
40	Toe Panel (Includes Item. 2) (White)
41	MAY 3406109
42	DOOR, FRONT
43	MAY W10323061
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY W10576519
48	MAY 279818
49	MAY 697750
50	MAY 49026
51	MAY 488729
52	MAY 3394331
