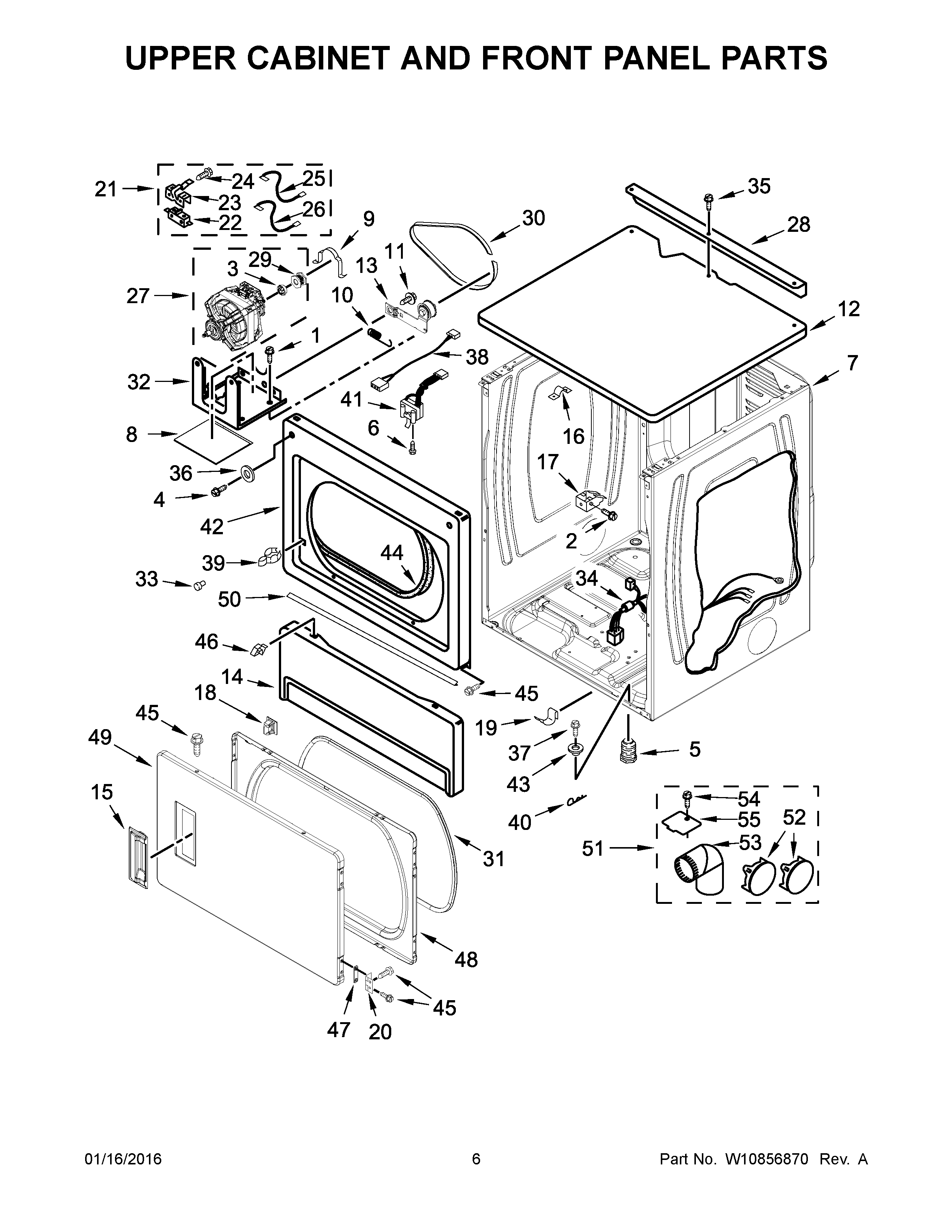

MLE26PRBZW1 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	MAY 3393657
4	SCREW
5	FOOT, DRYER PLASTIC
6	SCREW
7	MAY W10547697
8	DAPENING PANEL
9	MAY 660658
10	MAY W10446781
11	SCREW
12	TOP (WHITE)
13	PULLEY-IDLER ASSEMBLY
14	Toe Panel (Includes Item. 2) (White)
15	Handle, Door (White)
16	Clip
17	CLIP, FRONT PANEL
18	MAY 3392538
19	CLIP
20	ASSEMBLY, HINGE & PIN (SILVER)
21	Switch, Broken Belt
22	MAY 3394881
23	MAY 8066120
24	Screw, 6-20 x 1-1/16
25	MAY W10167612
26	Wire, Jumper (Broken Belt Switch)
27	MOTOR
28	MAY 3979115
29	PULLEY, MOTOR
30	MAY 3387610
31	MAY 3390735
32	MAY 3387118
33	BUMPER
34	MAY W10807486
35	SCREW
36	WASHER
37	BOLT, SECURITY
38	JUMPER, DOOR SWITCH
39	MAY 696144
40	MAY W10117347
41	MAY 3406109
42	PANEL, FRONT (WHITE)
43	MAY 3389233
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	LINER (NOT A SERVICEABLE PART)
48	MAY W10323061
49A	PLUG, HINGE SCREW
49	DOOR, FRONT
50	MAY W10576519
51	MAY 279818
52	MAY 697750
53	MAY 49026
54	MAY 488729
55	MAY 3394331
