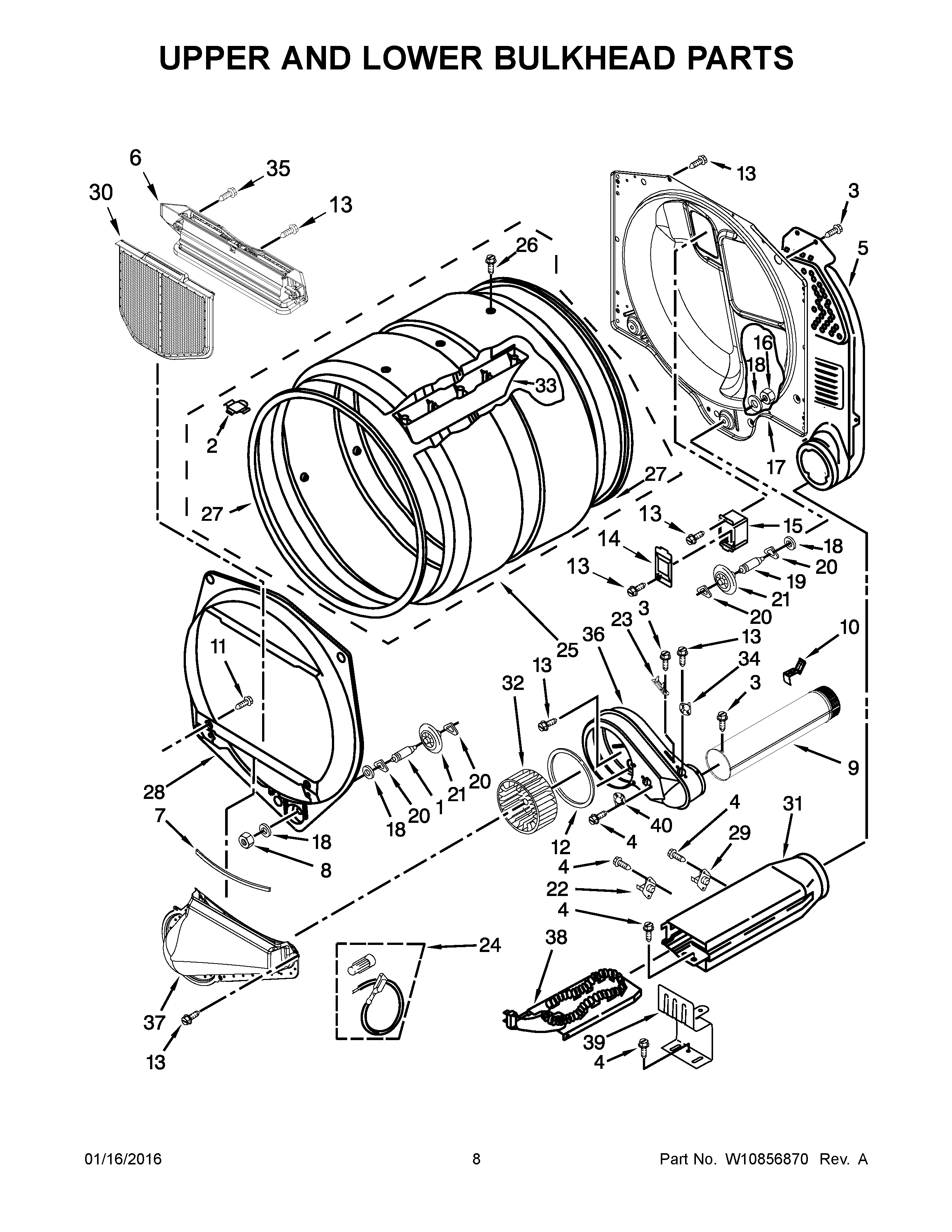

MLE26PRBZW1 05 – UPPER AND LOWER BULKHEAD PARTS

MLE26PRBZW1 05 – UPPER AND LOWER BULKHEAD PARTS

Written by

in

MLE26PRBZW1 05 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2Plug, Drum Hole
3MAY 8533971
4SCREW,8-18 X 3/8
5ASSEMBLY, AIR DUCT
6MAY W10181929
7MAY 697814
8NUT, HEX
9PIPE, EXHAUST
10CLIP, EXHAUST
11SCREW
12SEAL, PLATE COVER
13SCREW
14MAY 3402841
15MAY 8578825
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 3391914
23Fuse, Thermal (91 C)
24BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
25ASSEMBLY, DRUM
26MAY W10219342
27MAY W10521118
28BULKHEAD, FRONT
29MAY 8318314
30LINT SCREEN (WHITE)
31ASSEMBLY, WELD HEATER BOX
32MAY W10349492
33BAFFLE, DRUM
34THERMOSTAT
35SCREW
36HOUSING, BLOWER
37Lint Duct Assembly
38ELEMENT, HEATER MDE20MNAZW0
39MAY 8066099
40THERMOSTAT 155° F (ELECTRONIC)
