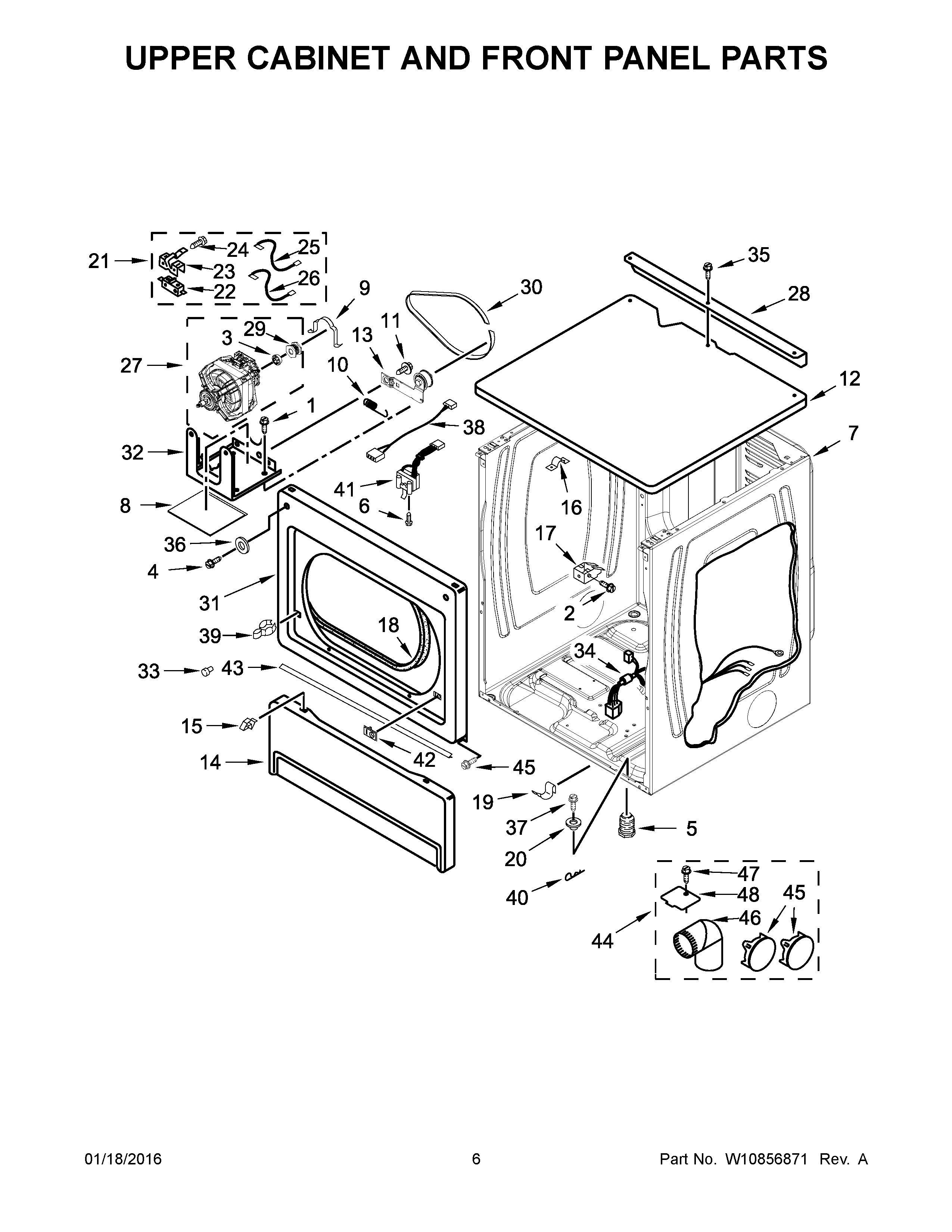

MLE26PRKYW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1SCREW
2SCREW
3MAY 3393657
4SCREW
5FOOT, DRYER PLASTIC
6SCREW
7MAY W10547697
8DAPENING PANEL
9MAY 660658
10MAY W10446781
11SCREW
12TOP (WHITE)
13PULLEY-IDLER ASSEMBLY
14Toe Panel (Includes Item. 2) (White)
15APLUG, HINGE SCREW
15RETAINER
16Clip
17CLIP, FRONT PANEL
18MAY 3387242
19CLIP
20MAY 3389233
21Switch, Broken Belt
22MAY 3394881
23MAY 8066120
24Screw, 6-20 x 1-1/16
25MAY W10167612
26Wire, Jumper (Broken Belt Switch)
27MOTOR
28MAY 3979115
29PULLEY, MOTOR
30MAY 3387610
31PANEL, FRONT
32MAY 3387118
33BUMPER
34MAY W10807486
35SCREW
36WASHER
37BOLT, SECURITY
38JUMPER, DOOR SWITCH
39Strike, Door
40MAY W10117347
41MAY 3406109
42COVER, STRIKE (WHITE)
43MAY W10576519
44MAY 279818
45MAY 697750
46MAY 49026
47MAY 488729
48MAY 3394331
