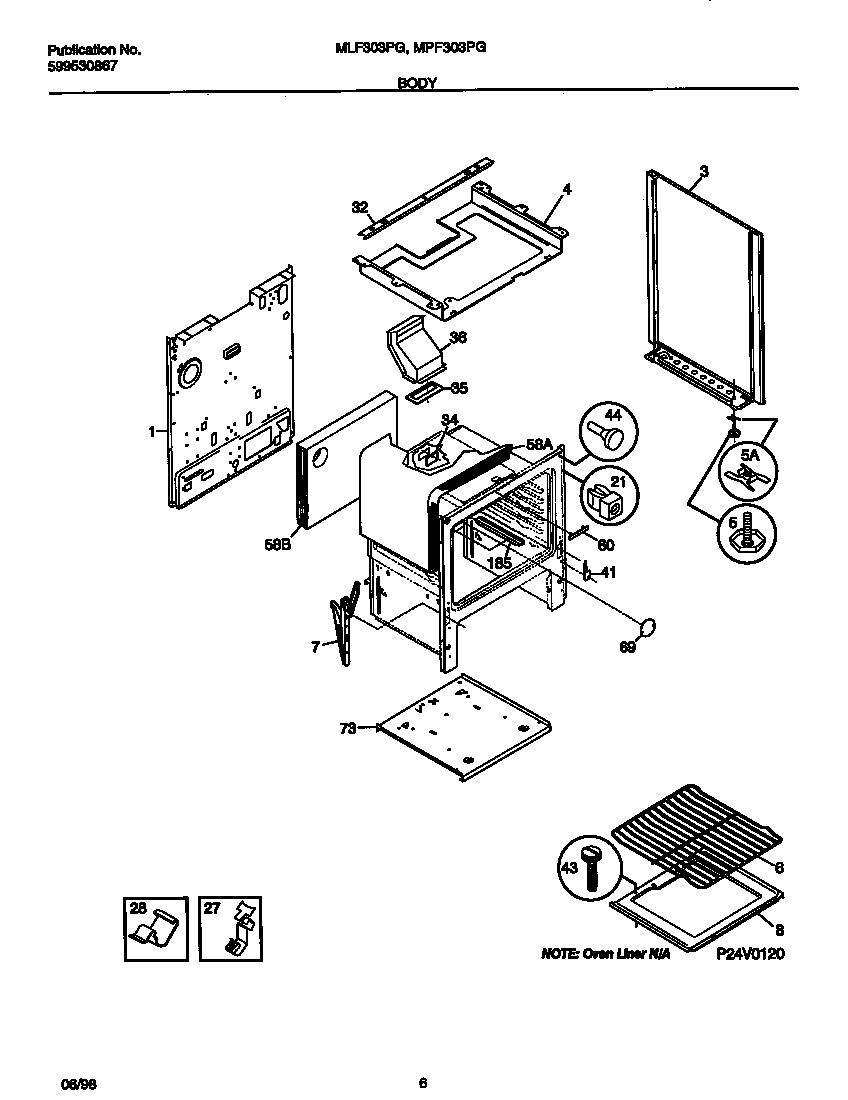

MLF303PGDA 04 – BODY

MLF303PGDA 04 – BODY

Written by

in

MLF303PGDA 04 – BODY

Products

PositionProduct
*54650PANEL-BODYSIDE,ALMOND ,LH
*54655SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*54648WCI 316073400
*54652316116000 Frigidaire Screw
*54651WCI 3934058
*546533203010 Frigidaire Clip
*546453203550 Frigidaire Oven Plug
*54654316064600 Frigidaire Oven Support
*54647Screw,cup pt ,8-18 x 0.375 ,chrome
*54646316021105 Frigidaire Oven Screw
1WCI 316029412
3WCI 316081030
4WCI 316067206
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007007
8BTTM-OVEN
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
41WCI 3131570
43316282700 Frigidaire Oven Screw
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BBASE-BROIL
73AWCI 316109901
185316112900 Frigidaire SHIELD
