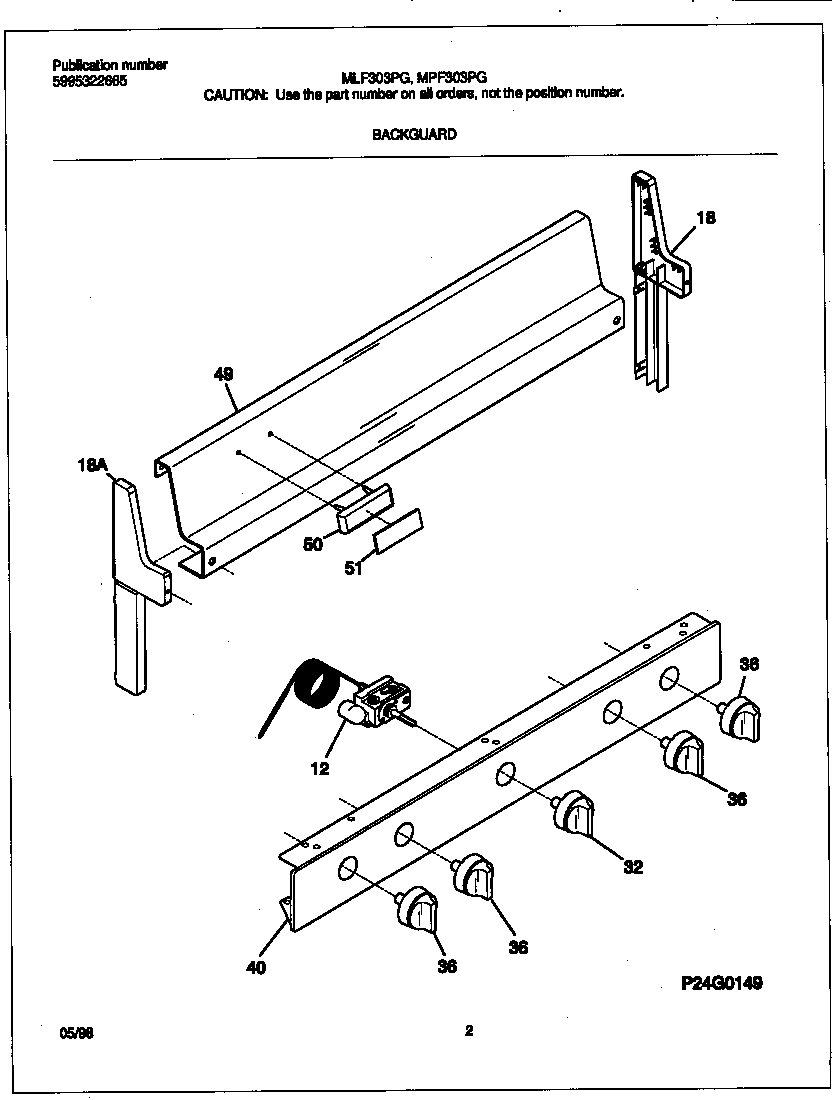

MLF303PGDD 02 – BACKGUARD

MLF303PGDD 02 – BACKGUARD

Written by

in

MLF303PGDD 02 – BACKGUARD

Products

PositionProduct
*51600316137003 Frigidaire Range / Cooktop End Cap
*51602316021109 Frigidaire Oven Screw
*51601Screw,cup pt ,8-18 x 0.375 ,chrome
*51604316112500 Frigidaire Oven Template
*51603Instructions,installation
*51605SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
12WCI 5303935014
18CAP-END RH
18CAP-END LH
32WCI 316102304
36KNOB-TOP VALVE, (4)
40WCI 319009214
49PNL-BACKGRD-ALMD
50WCI 316096900
50BEZEL-NAMEPLATE
