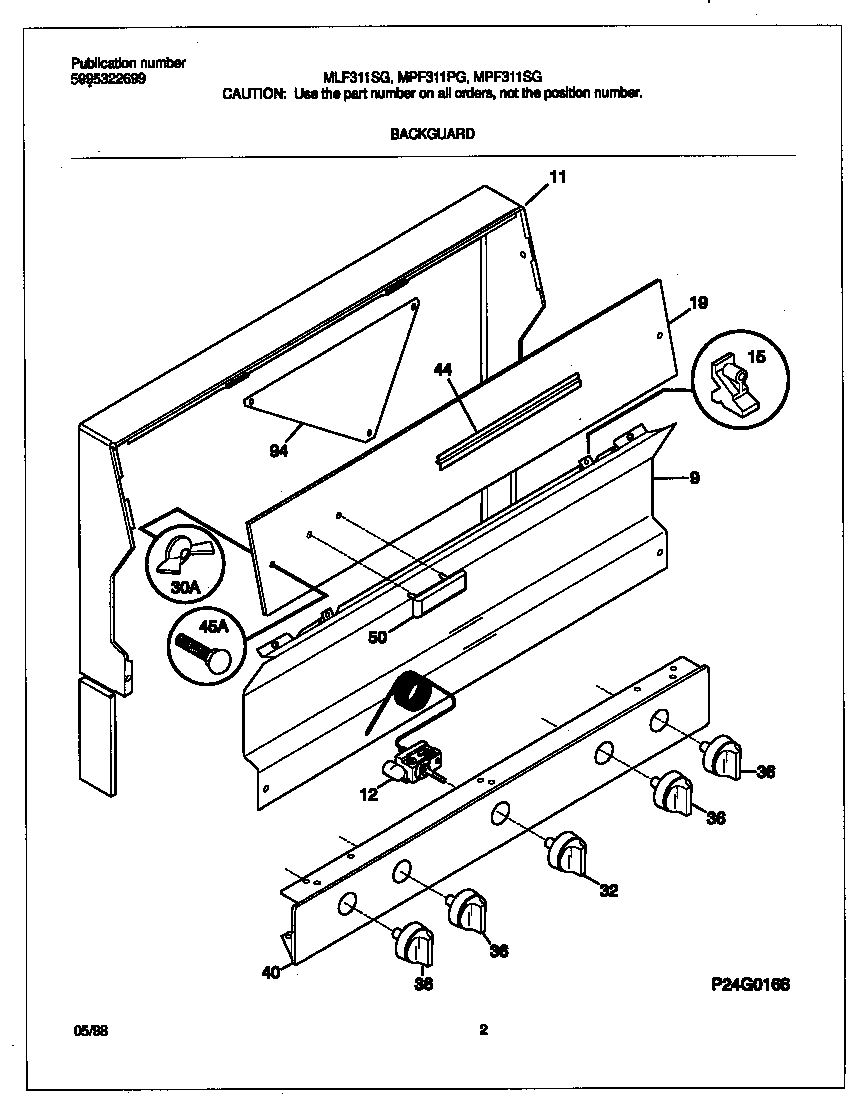

MLF311SGDC 02 – BACKGUARD

Products

Position	Product
*18120	316137003 Frigidaire Range / Cooktop End Cap
*18122	316021109 Frigidaire Oven Screw
*18121	Screw,cup pt ,8-18 x 0.375 ,chrome
*18125	SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
*18123	Instructions,installation
*18124	316112500 Frigidaire Oven Template
9	WCI 316043602
11	Trim,wrapper ,black
12	WCI 5303935014
15	SUPPORT-BACKGUARD,(2)
19	WCI 316034107
30	WCI 316064300
32	WCI 316102304
36	KNOB-TOP VALVE, (4)
40	WCI 319009214
44	WCI 3131468
45	WCI 316056902
50	WCI 316096900
50	BEZEL-NAMEPLATE
94	WCI 316111300
