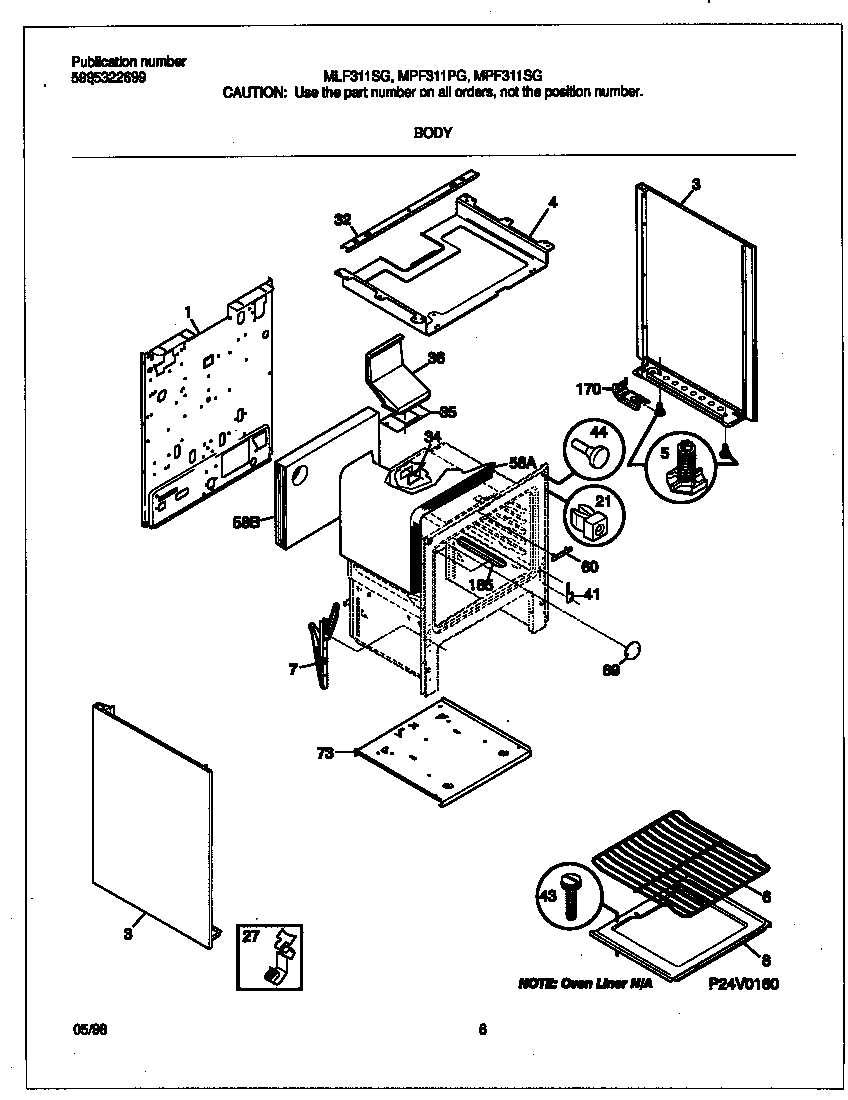

MLF311SGDC 04 – BODY

Products

Position	Product
*18130	316064600 Frigidaire Oven Support
*18128	Screw,cup pt ,8-18 x 0.375 ,chrome
*18131	SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*18129	WCI 316073400
1	WCI 316029412
3B	WCI 316081037
3A	WCI 316081036
4	WCI 316067206
5	WCI 316107300
6	316067902 Frigidaire Oven Rack
7	WCI 316007007
8	BTTM-OVEN
10	WCI 3205234
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	WCI 3203394
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	316204402 Frigidaire Oven Flue
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
58	INSUL – OVEN BACK (NON-ILLUSTRATED)
58	INSULATION, OVEN WRAPPER
60	COVER-OVEN FRONT
69	3051218 Frigidaire Oven Plate
73	WCI 316109902
170A	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B	316116000 Frigidaire Screw
185	316112900 Frigidaire SHIELD
