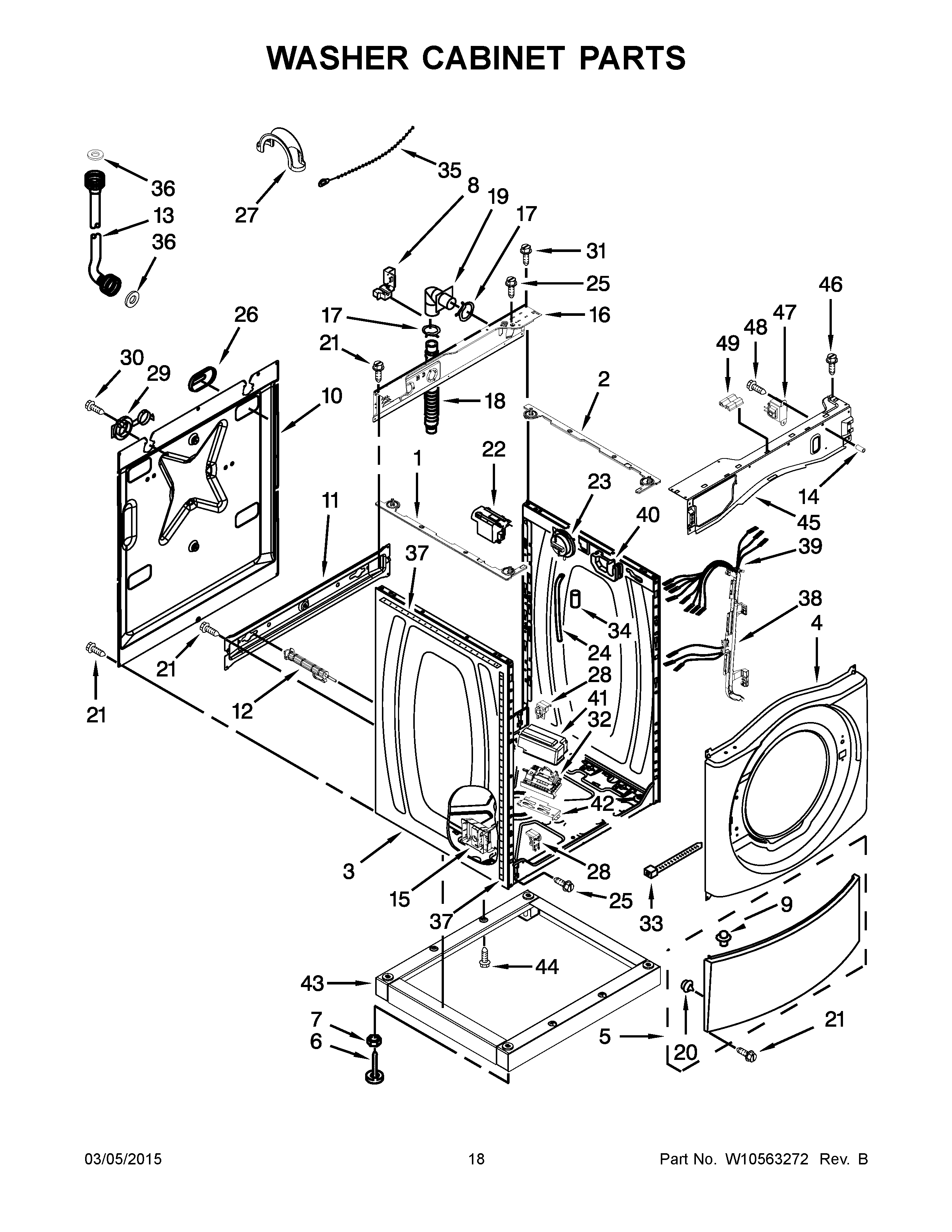

MLG20PDBWW2 10 – WASHER CABINET PARTSadmin2025-04-26T11:32:06+00:00MLG20PDBWW2 10 – WASHER CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY W10342201 |
| NI | MAY W10342200 |
| NI | MAY W10342208 |
| NI | MAY W10342210 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10342214 |
| 1 | MAY W10405229 |
| 2 | MAY W10405223 |
| 3 | MAY W10276046 |
| 4 | MAY W10306505 |
| 5 | Toe Panel |
| 6 | MAY W10245373 |
| 7 | Nut, 3/8-16 |
| 8 | MAY W10110676 |
| 9 | MAY 8518891 |
| 10 | MAY W10258342 |
| 11 | MAY W10189659 |
| 12 | MAY W10251449 |
| 13A | Hose, Water Inlet (Hot Water) |
| 13 | Hose, Water Inlet (Cold Water) |
| 14 | MAY W10018050 |
| 15 | MOTOR CONTROL UNIT |
| 16 | MAY W10244560 |
| 17 | MAY 356138 |
| 18 | HOSE, DRAIN- OUTER |
| 19 | Connector, Drain Hose |
| 20 | MAY 238614 |
| 22 | MAY W10339736 |
| 23 | MAY W10292407 |
| 24 | MAY 8540294 |
| 25 | SCREW, GROUNDING |
| 26 | MAY 8540268 |
| 27 | U-Bend |
| 28 | MAY W10085220 |
| 29 | MAY 8540728 |
| 30 | SCREW |
| 32 | MAY W10487818 |
| 33 | Cable Tie |
| 34 | Sleeve, Pressure Switch Hose |
| 35 | MAY 3347868 |
| 36 | ACCESSORY PARTS, WASHER, INLET HOSE |
| 37 | SEAL-FOAM (IEC) |
| 38 | MAY W10168546 |
| 39 | HARNESS, MAIN WIRING INCLUDES ITEM 38 |
| 40 | MAY 8540643 |
| 41 | MAY W10405233 |
| 42 | MAY W10198280 |
| 43 | PEDESTAL, COMMERCIAL |
| 44 | MAY W10346892 |
| 45 | MAY W10294428 |
| 46 | Screw, 8-18 x 5/8 |
| 47 | MAY W10198388 |
| 48 | MAY 8540329 |
| 49 | RETAINER-BASE |
