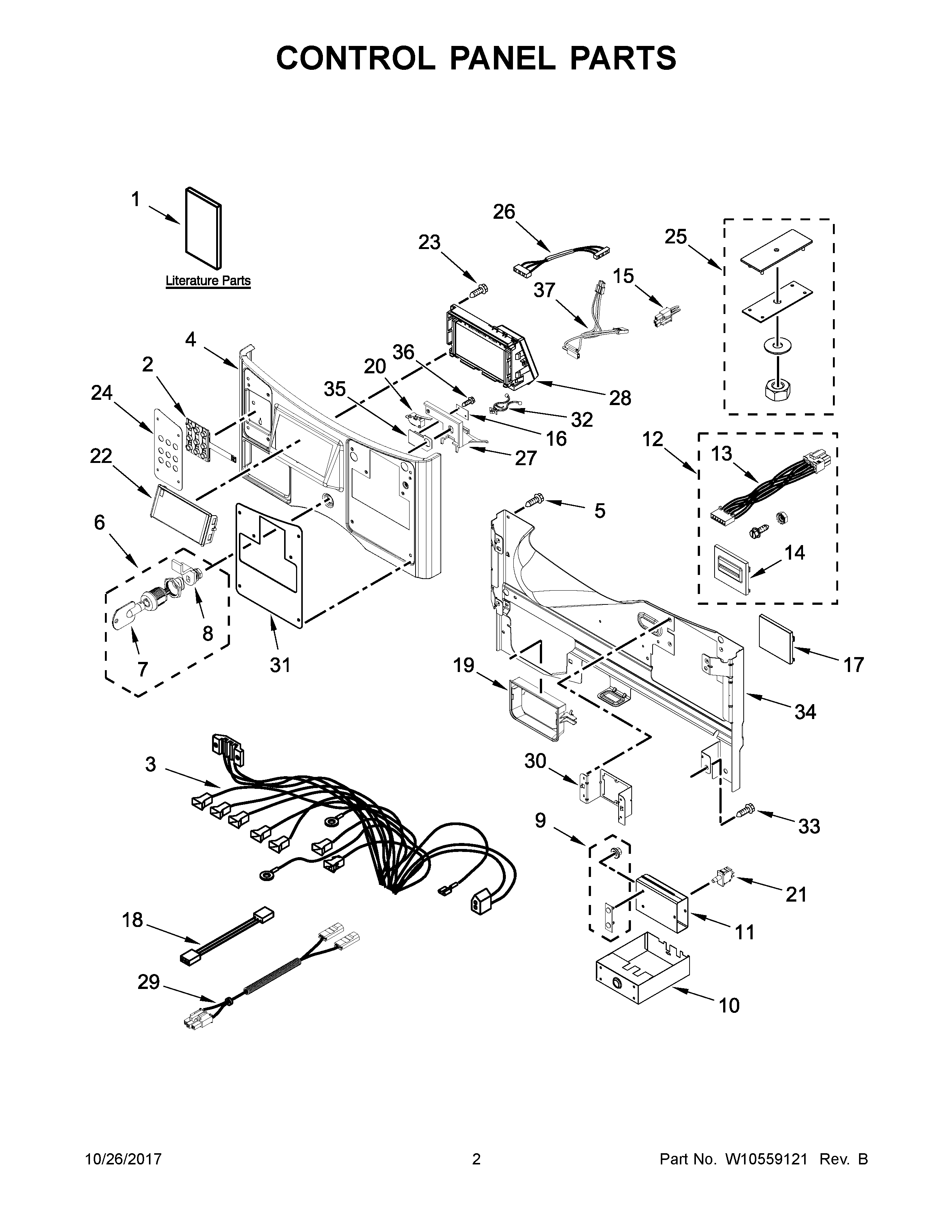

MLG20PDCGW0 02 – CONTROL PANEL PARTSadmin2025-04-26T11:31:05+00:00MLG20PDCGW0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1A | SHEET, TECH |
| 1 | INSTRUCTIONS, INSTALLATION |
| 2 | MAY W10198198 |
| 3A | HARNESS, MAIN MLG20 PD MODELS |
| 3 | HARNESS, MAIN MLE20 PD/PN MODELS |
| 4 | PANEL, CONSOLE |
| 5 | SCREW |
| 6 | SERVICE & PROGRAMMING LOCK |
| 7 | MAY W10114740 |
| 8 | MAY W10233256 |
| 9 | MOUNTING STRAP, WELD ASSEMBLY |
| 10 | COIN BOX |
| 11 | VAULT BODY, ASSEMBLY |
| 12 | MAY W10198451 |
| 13 | MAY W10239515 |
| 14 | MAY W10198367 |
| 15 | JUMPER, SWITCH SERVICE/VAULT |
| 16 | MAY W10151156 |
| 17 | MAY W10198366 |
| 18 | MAY W10342230 |
| 19 | MAY W10198345 |
| 20 | MAY W10133281 |
| 21 | SWITCH, VAULT SERVICE DOOR |
| 22 | WINDOW-DISPLAY |
| 23 | SCREW |
| 24 | BUTTONS, FASCIA |
| 25 | MAY W10169579 |
| 26 | MAY W10242897 |
| 27 | SUPPORT-CONSOLE |
| 28 | ASSEMBLY, TECHBOX PD MODELS |
| 28A | ASSEMBLY, TECHBOX PN MODELS |
| 29 | MAY W10300896 |
| 30A | BRACKET PR - CARD READER |
| 30 | BRACKET - PD COIN DROP & PN NON COIN |
| 31 | FASCIA PD - COIN DROP |
| 31A | FASCIA PR - CARD READER |
| 32 | Wire Clip (5) |
| 33 | SCREW |
| 34 | MAY W10198369 |
| 35 | MAY W10160652 |
| 36 | SCREW, 4-40 X 5/8 |
| 37 | MAY W10242896 |
