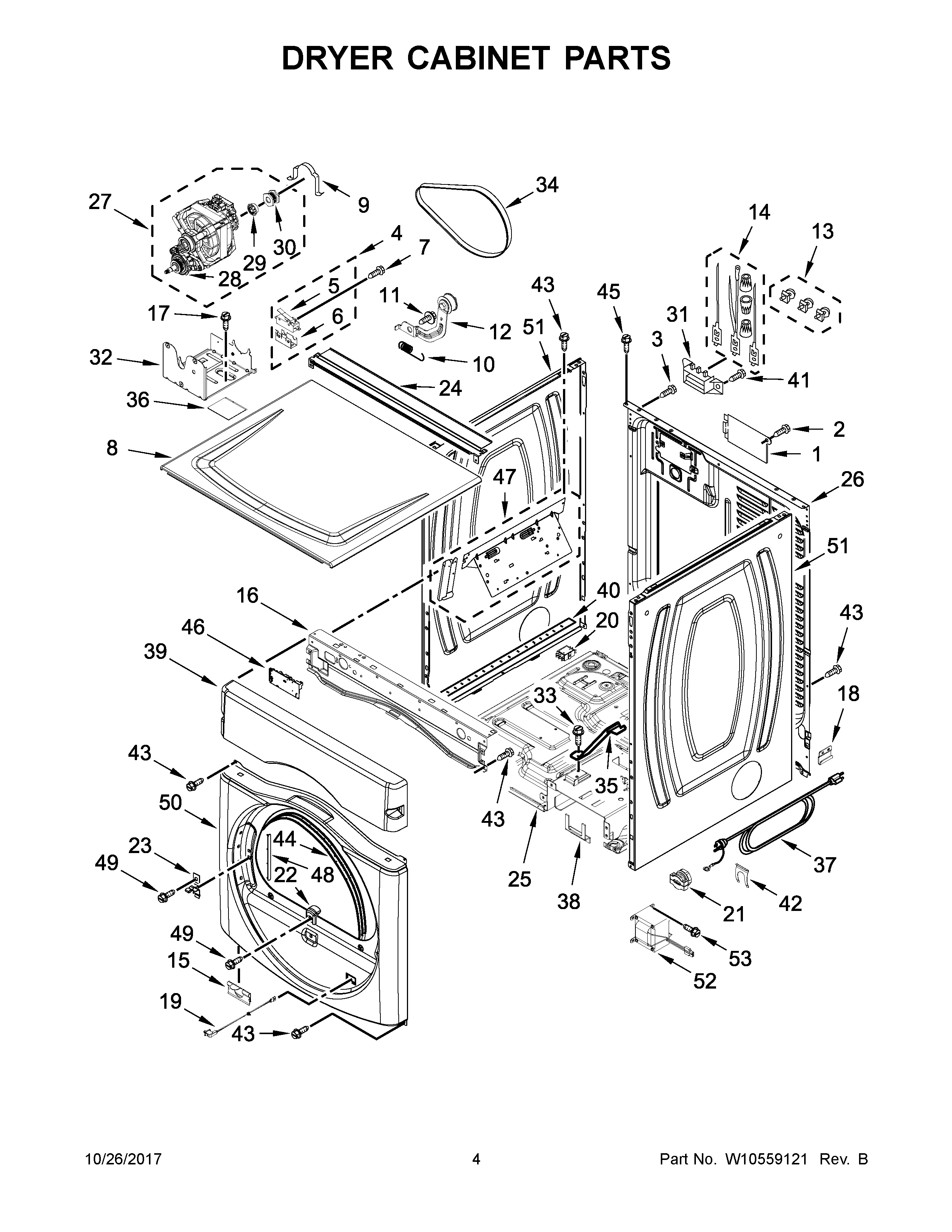

MLG20PDCGW0 03 – DRYER CABINET PARTS

Products

Position	Product
NI	MAY W10470674
NI	10A CORD ADAPTER (EUROPEAN)
NI	MAY W10476818
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD LOCK
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10601020
2	SCREW
3	SCREW
4	ASSEMBLY, SWITCH
5	ASSEMBLY, SWITCH ACTUATOR
6	MAY 8564011
7	SCREW
8	TOP (WHITE)
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY W10344192
13	MAY 279393
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8519459
16	MAY 8565237
17	SCREW
18	MAY W10198461
19	MAY W10459028
20	SWITCH, CENTRIFUGAL
21	Clip, Strain Relief
22	MAY 8580015
23	STRIKE, DOOR
24	MAY W10198224
25A	MAY W10225178
25	BASE & BRACKET, VAULT ASSEMBLY
26	MAY W10225180
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY 3405160
29	MAY 3393657
30	MAY W10167237
31	MAY 3397659
32	MAY W10135695
33	Screw
34	BELT, DRIVE
35	MAY W10198376
36	MOTOR, SOUND PAD
37	CORD-POWER
38	MAY W10133261
39	MAY W10198379
40	SEAL-FOAM (IEC)
41	MAY 8533971
42	STRAIN-RELIEF CLIP
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10166380
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	PANEL, FRONT (WHITE)
51	MAY W10542714
52	MAY W10753690
53	SCREW
