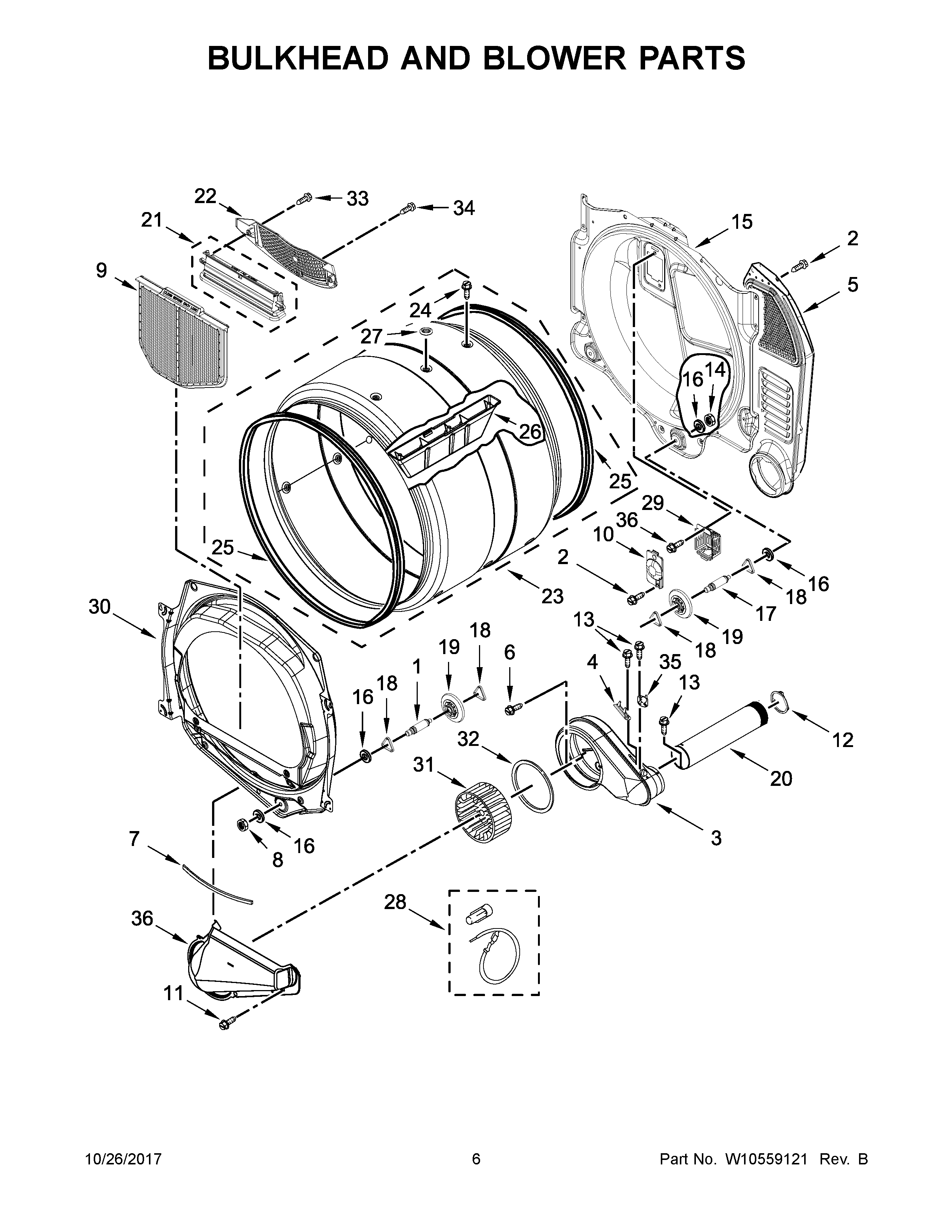

MLG20PDCGW0 04 – BULKHEAD AND BLOWER PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY 8544363
3A	MAY 8544362
4	Fuse, Thermal (91 C)
5	ASSEMBLY, AIR DUCT
5A	MAY 3394346
6	Screw
7	MAY 697814
8	NUT, HEX
9	LINT SCREEN (WHITE)
10	MAY 3402841
11	MAY 359625
12	MAY W10344699
13	MAY 8533971
14	NUT, HEX (LEFT HAND THREAD)
15	MAY W10080170
16	WASHER
17	SHAFT, DRUM ROLLER – LEFT HAND THREAD
18	WASHER, TRI RING
19	ROLLER, SUPPORT
20	MAY W10225176
21	ASSEMBLY, OUTLET HOUSING
22	GRILL, OUTLET
23	MAY W10549541
24	MAY W10219342
25	MAY W10521118
26	MAY W10153409
27	CAP, PLUG
28	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
29	BRACKET, DRUM LIGHT
30	MAY 8565061
31	MAY W10349492
32	SEAL, PLATE COVER
32A	SEAL, PLATE COVER
33	SCREW
34	Screw, 8-18 x 1/2
35	THERMISTOR
36	Lint Duct Assembly
