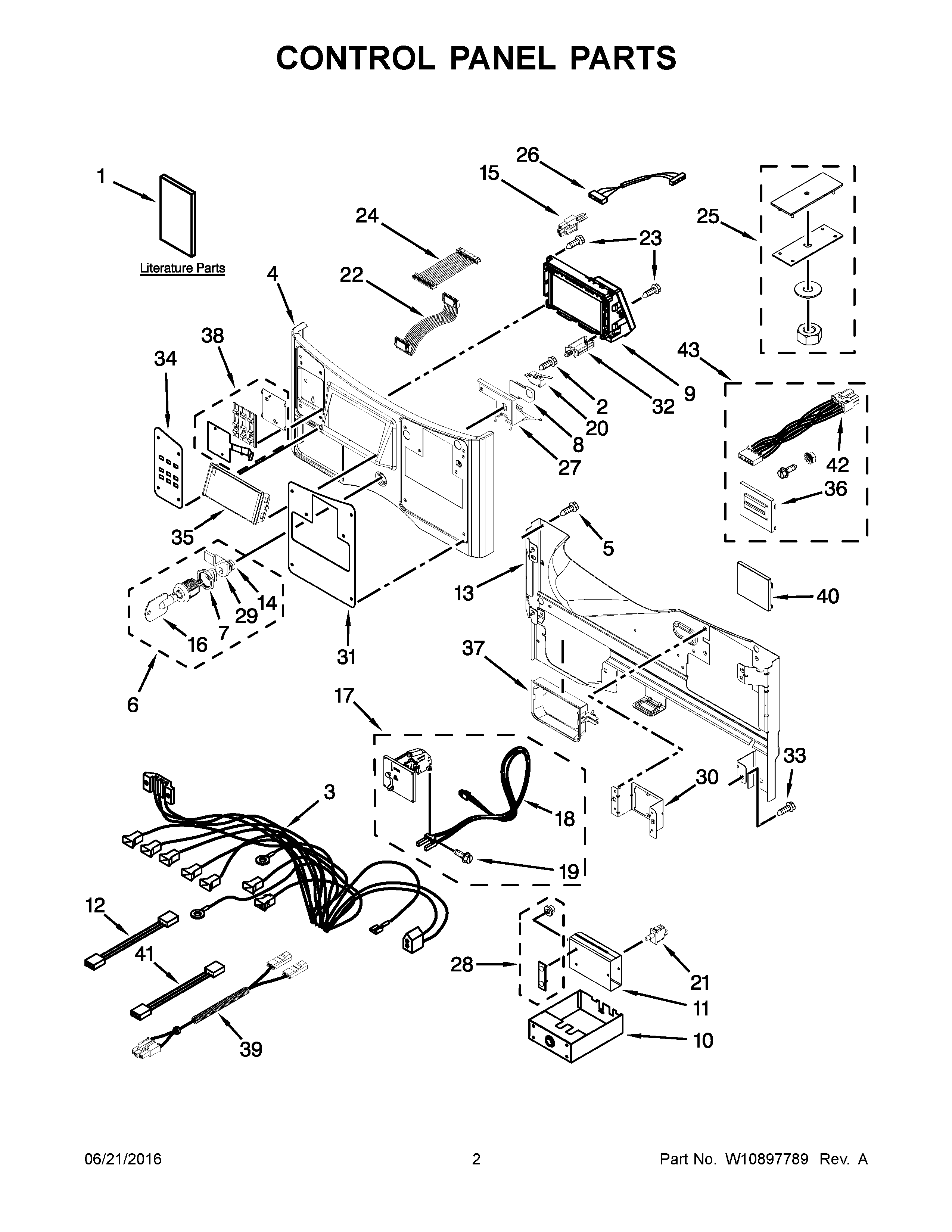

MLG20PDCWW1 02 – CONTROL PANEL PARTS

MLG20PDCWW1 02 – CONTROL PANEL PARTS

Written by

in

MLG20PDCWW1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1CSHEET, TECH
1BMAY W10335470
1AINSTRUCTIONS, INSTALLATION CANADIAN
2SCREW, 4-40 X 5/8
3MAY W10555303
3AMAY W10555305
4ASSEMBLY, PANEL PD – COIN DROP
4AASSEMBLY, PANEL PR – CARD READER
5SCREW
6ASSEMBLY, LOCK ACCESS DOOR
7NUT, HEX
8MAY W10160652
9ASSEMBLY, TECHBOX PD MODELS
9AASSEMBLY, TECHBOX PN MODELS
10COIN BOX
11VAULT BODY, ASSEMBLY
12MAY W10242896
13MAY W10198369
14NUT, HEX
15JUMPER, SWITCH SERVICE/VAULT
16KEY, ACCESS DOOR
17ASSEMBLY, DUAL COIN DROP, MDE20PDAZW0
17AASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
18ACOIN SENSOR ASSY, COIN 2 (BLACK)
18COIN-OPTIC SENSOR ASSEMBLY (WHITE)
19SCREW
20MAY W10447152
21MAY W10131838
22MAY W10167484
23SCREW
24MAY W10167482
25MAY W10169579
26MAY W10242897
27SUPPORT-CONSOLE
28MOUNTING STRAP, WELD ASSEMBLY
29CAM-LOCK
30BRACKET – PD COIN DROP & PN NON COIN
30ABRACKET PR – CARD READER
31AFASCIA PR – CARD READER
31FASCIA PD – COIN DROP
32Wire Clip (5)
33SCREW
34BUTTONS, FASCIA
35WINDOW-DISPLAY
36MAY W10198367
37MAY W10198345
38MAY W10198198
39MAY W10300896
40MAY W10198366
41MAY W10342214
42MAY W10239515
43MAY W10198451
