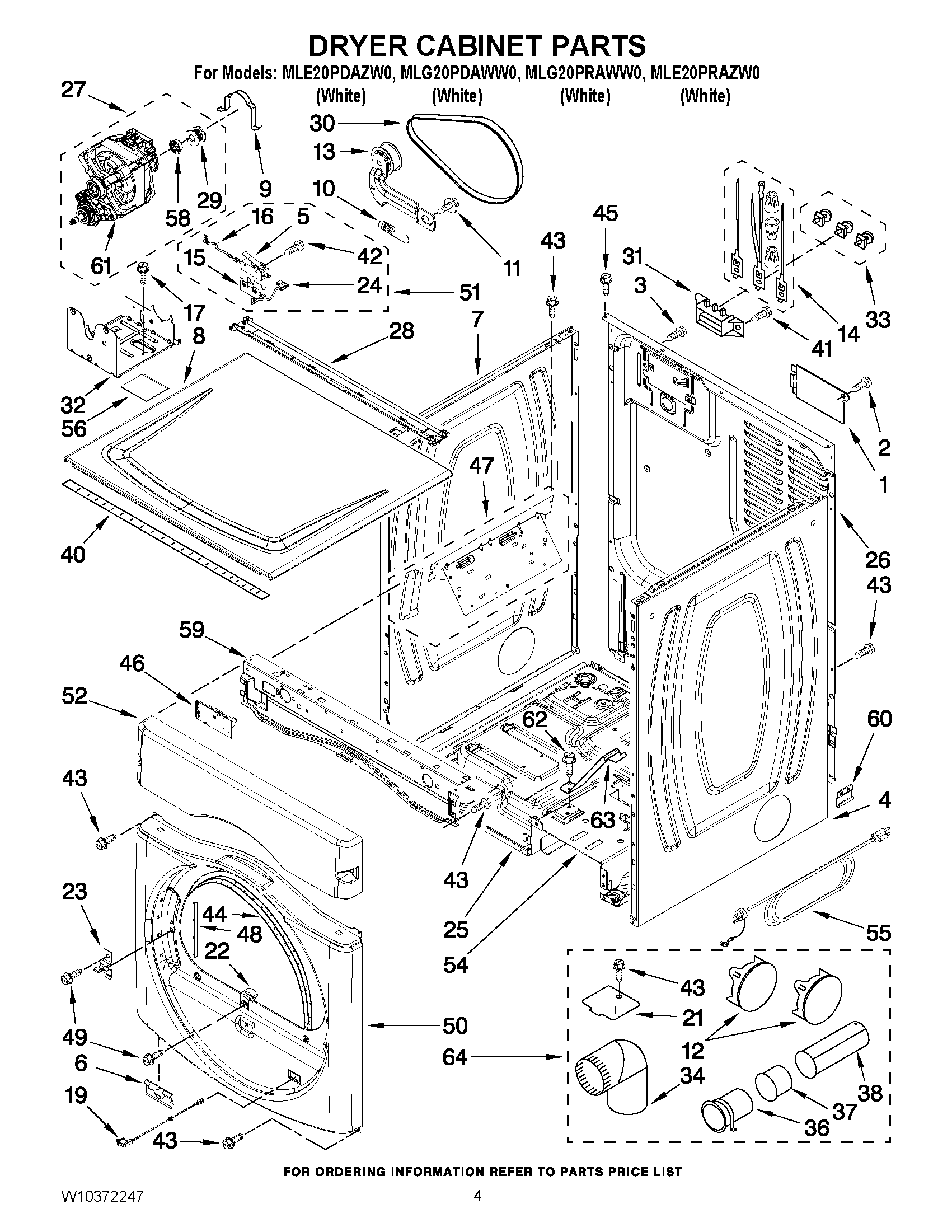

MLG20PRAWW0 02 – DRYER CABINET PARTS

Products

Position	Product
NI	MAY 279818
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
5	Switch, Broken Belt
6	MAY 8519459
7	MAY 8565054
8	Top
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	Wire, Belt (To Protector)
17	SCREW
19	SWITCH, ASSEMBLY DOOR
21	MAY 8066115
22	MAY 8580015
23	STRIKE, DOOR
24	MAY 8539892
25	BASE & BRACKET, VAULT ASSEMBLY
25	MAY 8565046
26	MAY 8565059
27	MOTOR ASSEMBLY 60 HZ.
28	CHANEL, WATER
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 49026
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
40	SEAL-FOAM (IEC)
41	MAY 8533971
42	Bolt, 6-20 x 1 1/4
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10376685
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	MAY W10117421
51	MAY W10155571
52	MAY W10198215
54	MAY W10133261
55	MAY 3401401
56	DAPENING PANEL
58	MAY 3393657
59	MAY 8565237
60	MAY W10198377
61	MAY 3405160
62	Screw
63	MAY W10198376
