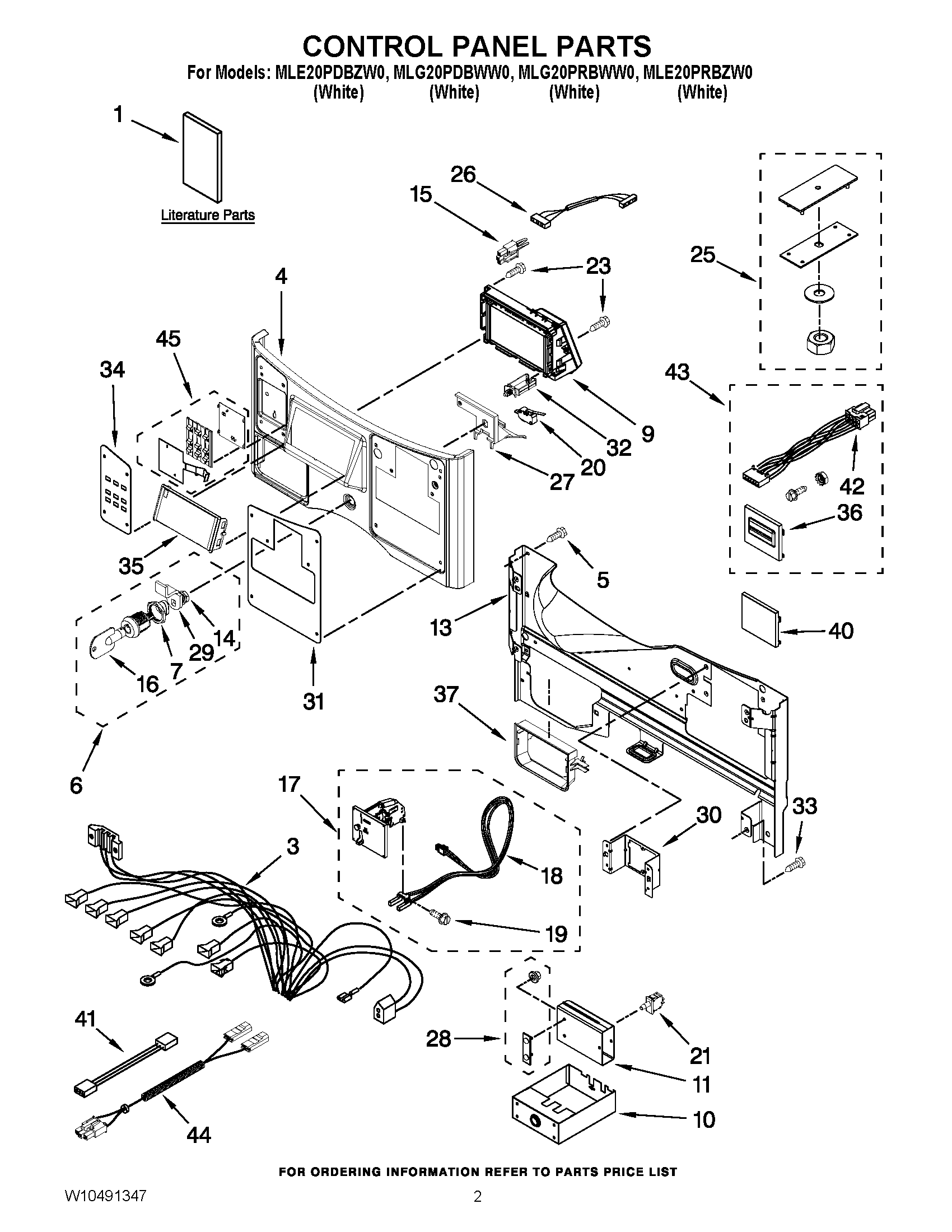

MLG20PRBWW0 01 – CONTROL PANEL PARTSadmin2025-04-26T11:29:30+00:00MLG20PRBWW0 01 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | INSTRUCTIONS, INSTALLATION |
| 1 | MAY W10491347 |
| 1 | INSTRUCTIONS, INSTALLATION CANADIAN |
| 1 | SHEET, TECH |
| 3 | MAY W10242901 |
| 3 | HARNESS, MAIN |
| 4 | ASSEMBLY, PANEL PD - COIN DROP |
| 4 | ASSEMBLY, PANEL PR - CARD READER |
| 5 | SCREW |
| 6 | ASSEMBLY, LOCK ACCESS DOOR |
| 7 | NUT, HEX |
| 9 | ASSEMBLY, TECHBOX PR - CARD READER |
| 9 | ASSEMBLY, TECHBOX PD - COIN DROP |
| 10 | COIN BOX |
| 11 | VAULT BODY, ASSEMBLY |
| 13 | MAY W10198369 |
| 14 | NUT, HEX |
| 15 | JUMPER, SWITCH SERVICE/VAULT |
| 16 | KEY, ACCESS DOOR |
| 17 | Coin Drop Assy. |
| 17 | ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0 |
| 18 | COIN-OPTIC SENSOR ASSEMBLY (WHITE) |
| 18 | COIN SENSOR ASSY, COIN 2 (BLACK) |
| 19 | SCREW |
| 20 | MAY W10447152 |
| 21 | MAY W10131838 |
| 23 | SCREW |
| 25 | MAY W10169579 |
| 26 | MAY W10242897 |
| 27 | SUPPORT-CONSOLE |
| 28 | MOUNTING STRAP, WELD ASSEMBLY |
| 29 | CAM-LOCK |
| 30 | BRACKET - PD COIN DROP & PN NON COIN |
| 30 | BRACKET PR - CARD READER |
| 31 | FASCIA PR - CARD READER |
| 31 | FASCIA PD - COIN DROP |
| 32 | Wire Clip (5) |
| 33 | SCREW |
| 34 | BUTTONS, FASCIA |
| 35 | WINDOW-DISPLAY |
| 36 | MAY W10198367 |
| 37 | MAY W10198345 |
| 40 | MAY W10198366 |
| 41 | MAY W10342214 |
| 42 | MAY W10239515 |
| 43 | MAY W10198451 |
| 44 | MAY W10300896 |
| 45 | MAY W10198198 |
