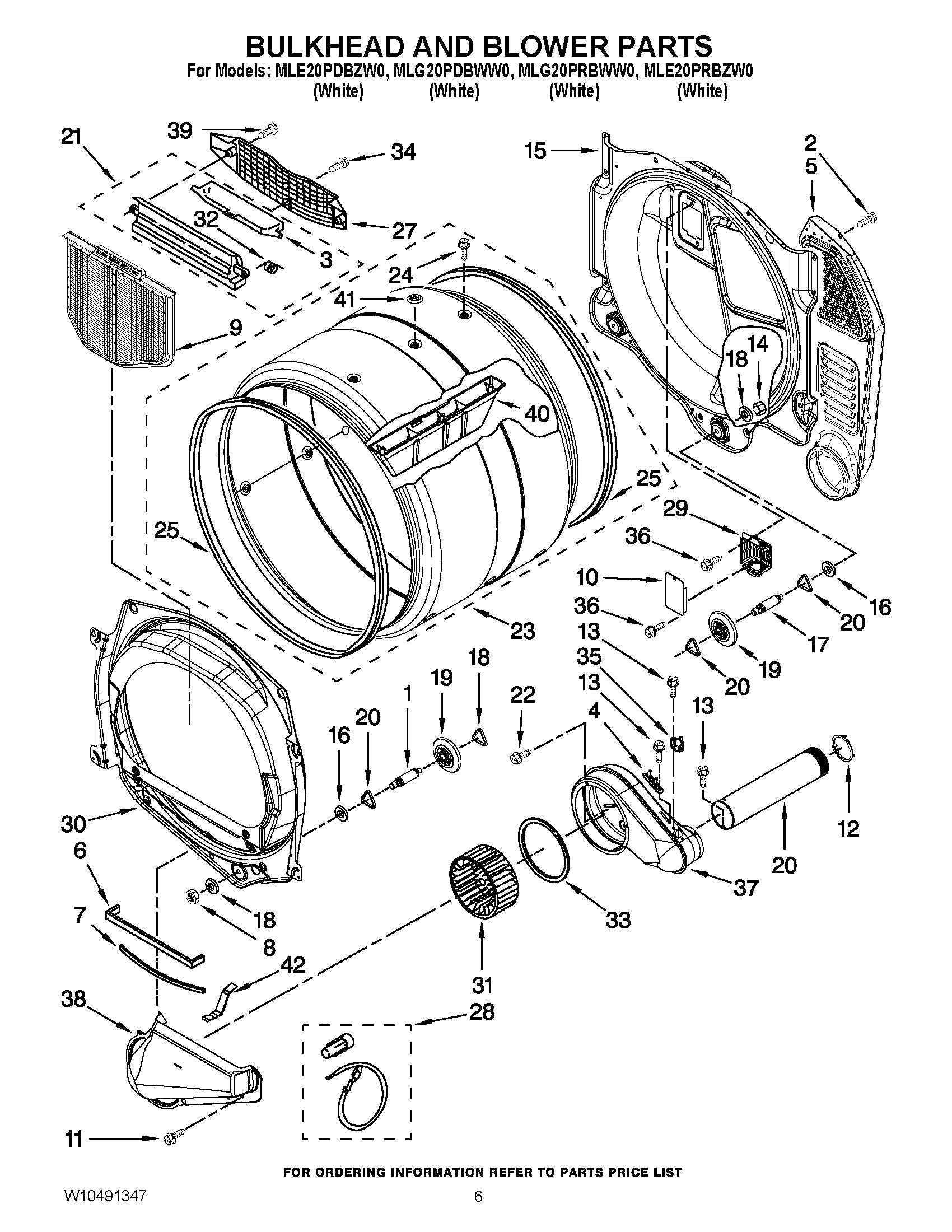

MLG20PRBWW0 03 – BULKHEAD AND BLOWER PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
3	MAY W10153413
4	Fuse, Thermal (91 C)
5	ASSEMBLY, AIR DUCT
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
11	MAY 359625
12	MAY W10344699
13	MAY 8533971
14	NUT, HEX (LEFT HAND THREAD)
15	MAY W10080170
16	WASHER
17	SHAFT, DRUM ROLLER – LEFT HAND THREAD
18	WASHER, TRI RING
19	ROLLER, SUPPORT
20	MAY 8563728
21	Housing, Outlet
22	Screw
23	MAY W10153420
24	MAY W10219342
25	MAY W10166807
27	MAY W10153412
28	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
29	MAY W10410531
30	MAY 8565061
31	MAY W10349492
32	Spring, Lint Screen Door
33	SEAL, PLATE COVER
34	Screw, 8-18 x 1/2
35	THERMISTOR
36	SCREW
37	MAY 8544362
38	Lint Duct Assembly
39	SCREW
40	MAY W10153409
41	CAP, PLUG
42	CLIP, SPRING
