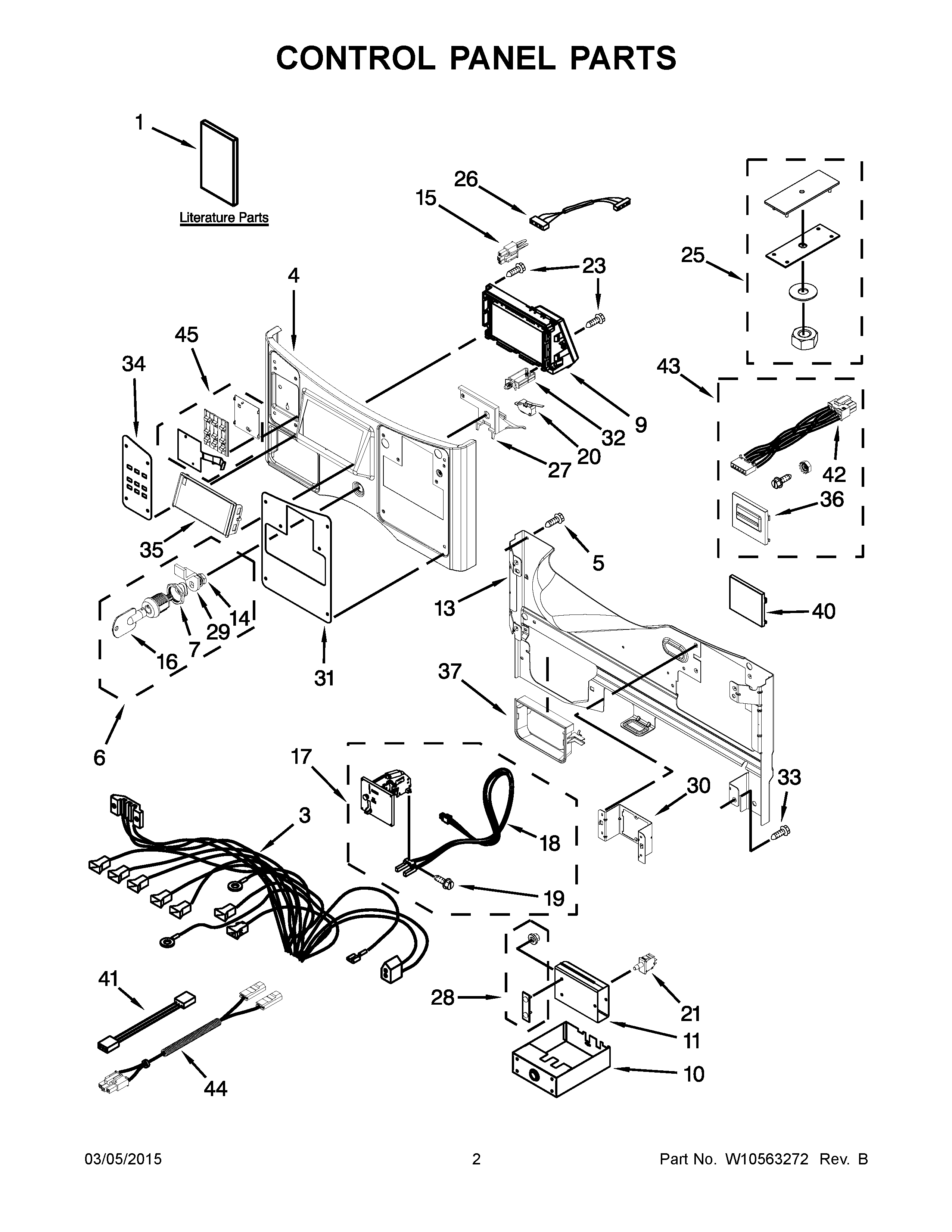

MLG20PRBWW2 02 – CONTROL PANEL PARTS

Products

Position	Product
1C	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION CANADIAN
1	INSTRUCTIONS, INSTALLATION
1B	MAY W10335470
3A	MAY W10555305
3	MAY W10555303
4	ASSEMBLY, PANEL PD – COIN DROP
4A	ASSEMBLY, PANEL PR – CARD READER
5	SCREW
6	ASSEMBLY, LOCK ACCESS DOOR
7	NUT, HEX
9A	ASSEMBLY, TECHBOX PR – CARD READER
9	ASSEMBLY, TECHBOX PD – COIN DROP
10	COIN BOX
11	VAULT BODY, ASSEMBLY
13	MAY W10198369
14	NUT, HEX
15	JUMPER, SWITCH SERVICE/VAULT
16	KEY, ACCESS DOOR
17A	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
17	ASSEMBLY, DUAL COIN DROP, MDE20PDAZW0
18	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
18A	COIN SENSOR ASSY, COIN 2 (BLACK)
19	SCREW
20	MAY W10447152
21	MAY W10131838
23	SCREW
25	MAY W10169579
26	MAY W10242897
27	SUPPORT-CONSOLE
28	MOUNTING STRAP, WELD ASSEMBLY
29	CAM-LOCK
30A	BRACKET PR – CARD READER
30	BRACKET – PD COIN DROP & PN NON COIN
31A	FASCIA PR – CARD READER
31	FASCIA PD – COIN DROP
32	Wire Clip (5)
33	SCREW
34	BUTTONS, FASCIA
35	WINDOW-DISPLAY
36	MAY W10198367
37	MAY W10198345
40	MAY W10198366
41	MAY W10342214
42	MAY W10239515
43	MAY W10198451
44	MAY W10300896
45	MAY W10198198
