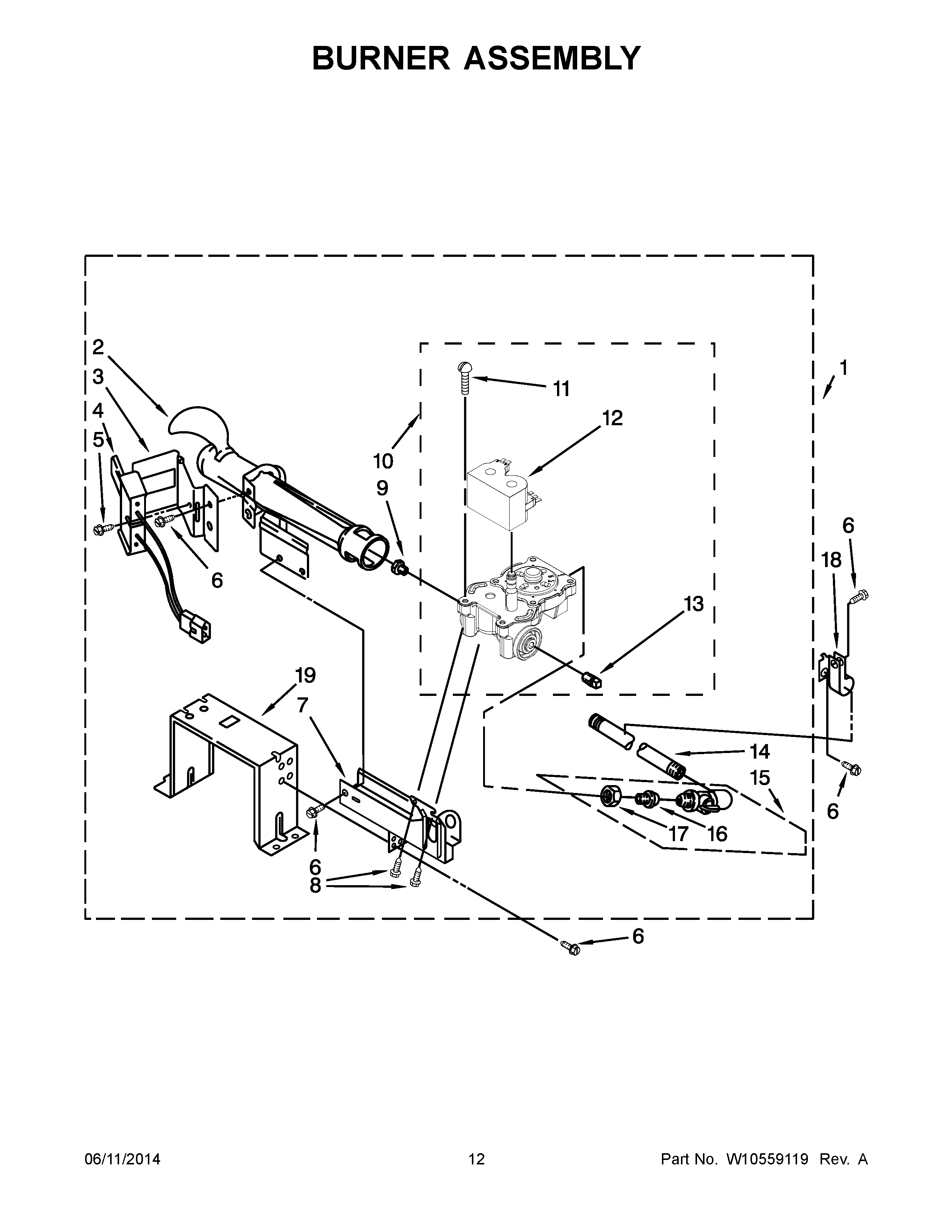

MLG20PRCWW0 07 – BURNER ASSEMBLY

MLG20PRCWW0 07 – BURNER ASSEMBLY

Written by

in

MLG20PRCWW0 07 – BURNER ASSEMBLY

Products

PositionProduct
NIMAY W10436933
NILINER (NOT A SERVICEABLE PART)
1MAY W10135231
2MAY 688617
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 3389871
8SCREW
9Orifice, Burner (Type 1)
9MAY 234868
10VALVE, GAS (60 HZ -COMPLETE)
12MAY W10328463
13MAY W10295523
14MAY W10110395
15Valve & Union Shut-Off
16MAY 3393767
17MAY 233076
18MAY 3387561
19MAY 3389889
