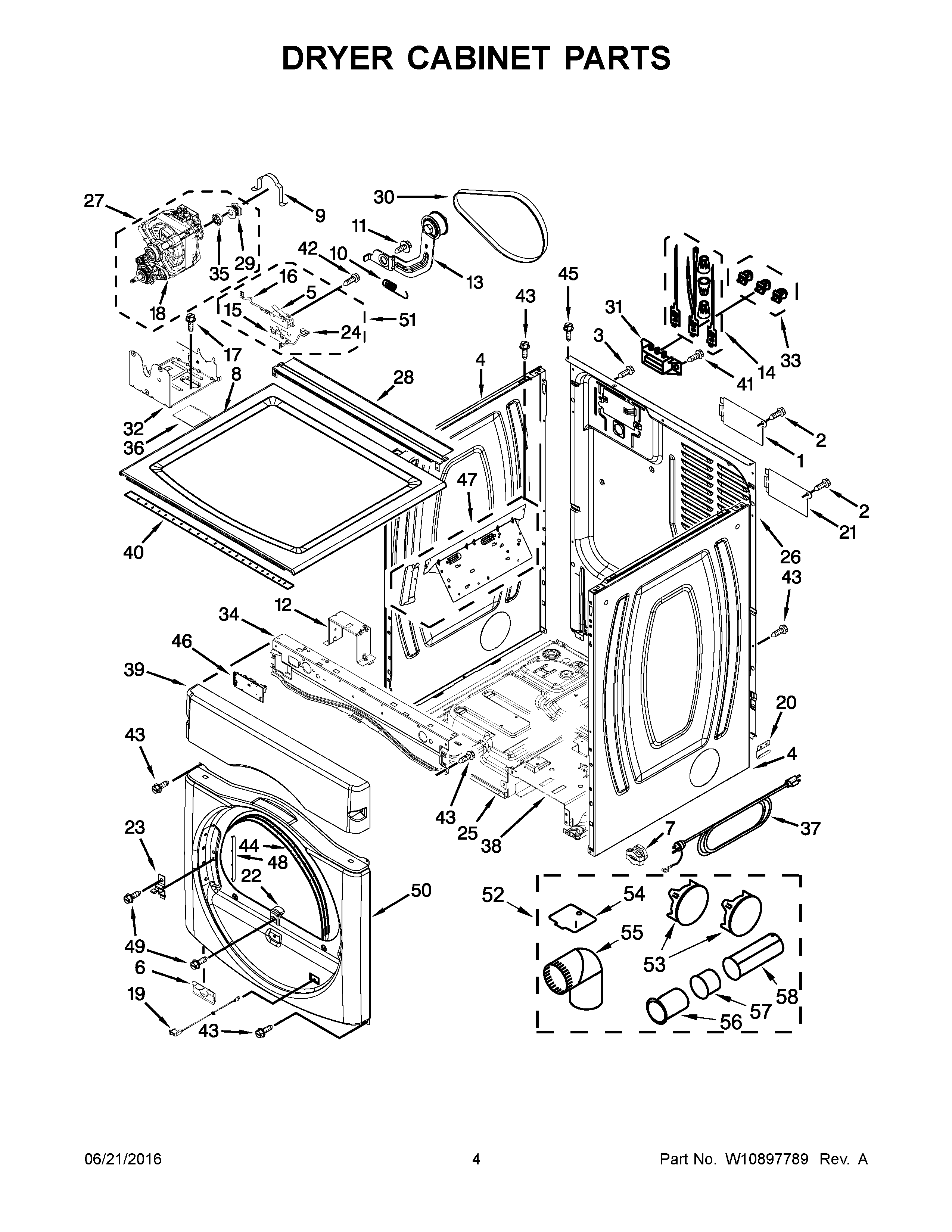

MLG20PRCWW1 03 – DRYER CABINET PARTS

Products

Position	Product
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	SCREW
4	MAY W10542714
5	Switch, Broken Belt
6	MAY 8519459
7	Clip, Strain Relief
8	TOP (WHITE)
9	MAY 660658
10	MAY W10446781
11	SCREW
12	BRACKET, SUPPORT
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	Wire, Belt (To Protector)
17	SCREW
18	MAY 3405160
19	DOOR SWITCH ASSEMBLY
20	MAY W10198461
21	MAY 8317340
22	MAY 8580015
23	STRIKE, DOOR
24	MAY 8539892
25A	MAY 8565046
25	BASE & BRACKET, VAULT ASSEMBLY
26A	MAY W10874014
26	MAY 8565059
27	MAY W10396034
28	MAY W10198224
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 8565237
35	MAY 3393657
36	MOTOR, SOUND PAD
37A	MAY 3401401
37	MAY W10712174
38	MAY W10198306
39	MAY W10198215
40	SEAL-FOAM (IEC)
41	MAY 8533971
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10376685
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	MAY W10549665
51	MAY W10155571
52	MAY 279818
53	MAY 697750
54	MAY 3394331
55	MAY 49026
56	PIPE, EXHAUST (MEDIUM)
57	MAY 8563750
58	PIPE, EXHAUST (LONG)
