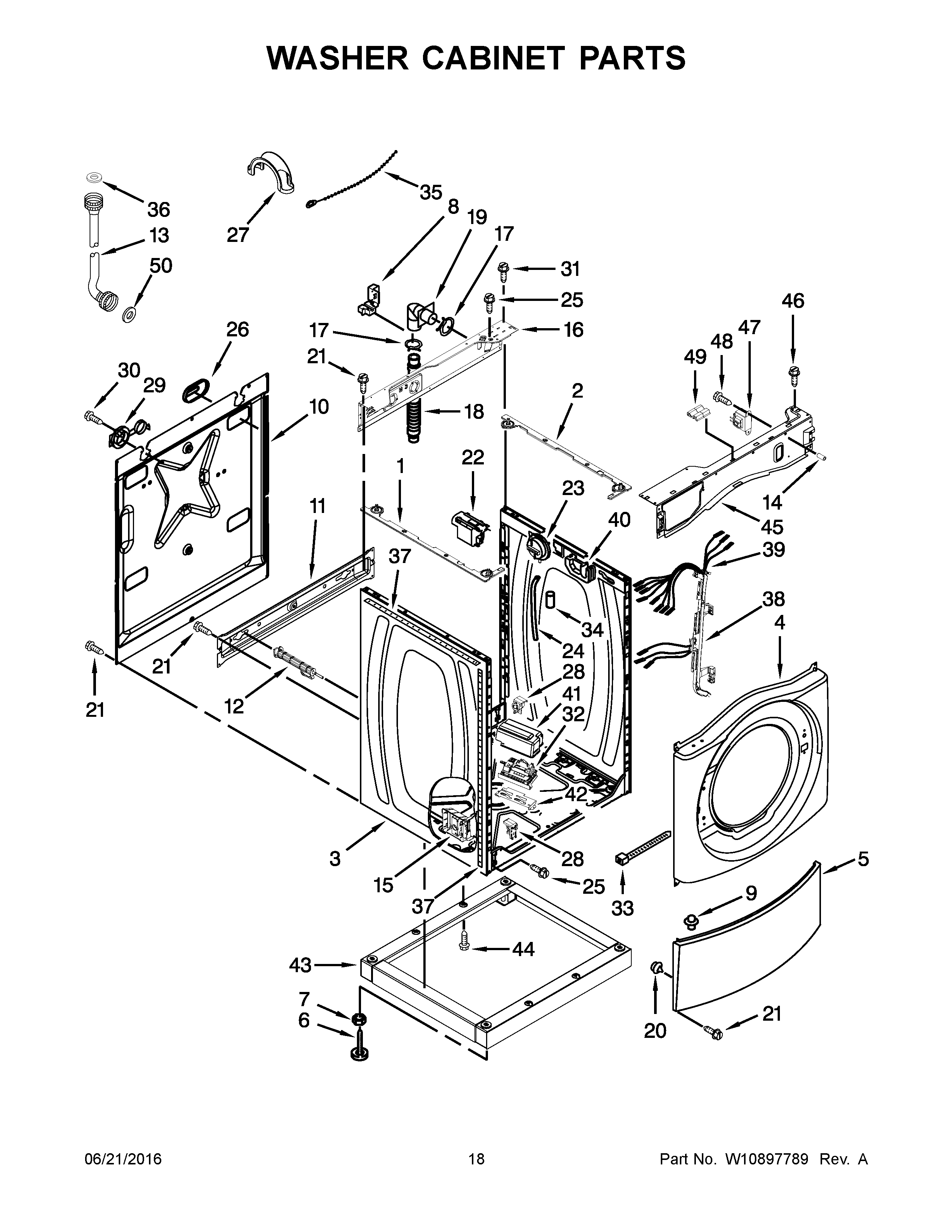

MLG20PRCWW1 10 – WASHER CABINET PARTS

Products

Position	Product
NI	MAY W10342208
NI	MAY W10342200
NI	MAY W10342201
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10342210
NI	MAY W10342216
NI	MAY W10342214
1	MAY W10405229
2	MAY W10405223
3	MAY W10198145
4	MAY W10306505
5	TOE PANEL (WHITE)
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258342
11	MAY W10189659
12	MAY W10251449
13A	MAY W10458856
13	MAY W10458855
14	MAY W10018050
15	MOTOR CONTROL UNIT
16	MAY W10244560
17	MAY 356138
18	HOSE, DRAIN- OUTER
19	Connector, Drain Hose
20	MAY 238614
22	MAY W10339736
23	MAY W10292407
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	U-Bend
28	MAY W10085220
29	MAY 8540728
30	SCREW
32	MAY W10733698
33	Cable Tie
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	SEAL-FOAM (IEC)
38	MAY W10168546
39	HARNESS, MAIN WIRING INCLUDES ITEM 38
40	MAY 8540643
41	MAY W10405233
42	MAY W10198280
43	PEDESTAL, COMMERCIAL
44	MAY W10346892
45	MAY W10846488
46	Screw, 8-18 x 5/8
47	MAY W10198388
48	MAY 8540329
49	RETAINER-BASE
50	ACCESSORY PARTS, WASHER, HOSE
