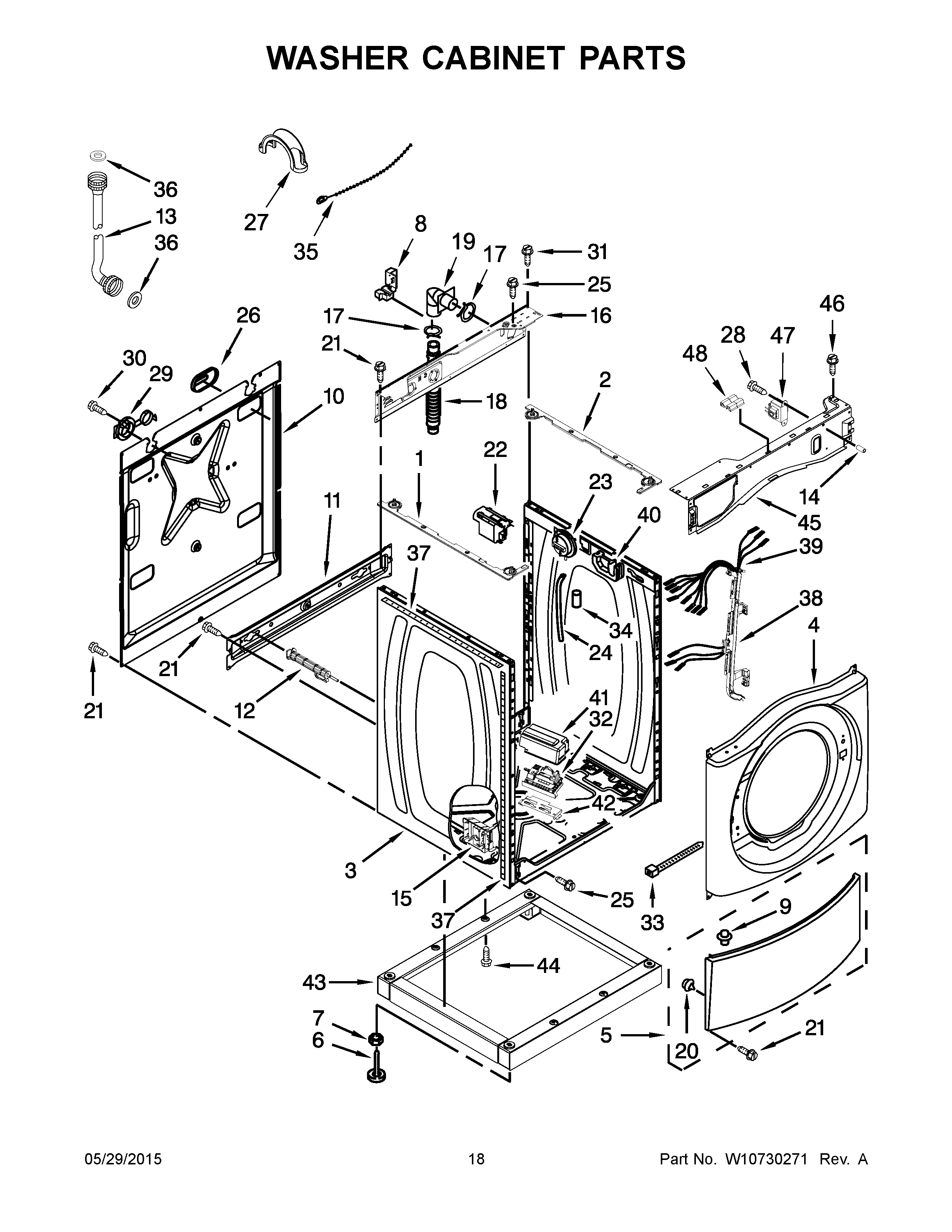

MLG21PDAGW0 10 – WASHER CABINET PARTS

Products

Position	Product
NI	MAY W10342223
NI	MAY W10342220
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10342229
NI	MAY W10342219
1	MAY W10405229
2	MAY W10405223
3	MAY W10276046
4	MAY W10306505
5	TOE PANEL (WHITE)
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258342
11	MAY W10189659
12	MAY W10251449
13	HOSE, WATER INLET (COLD)
13A	HOSE, WATER INLET (WARM)
14	MAY W10018050
15	MAY W10385821
16	MAY W10244560
17	MAY 356138
18	HOSE, DRAIN- OUTER
19	Connector, Drain Hose
20	MAY 238614
22	MAY W10398805
23	MAY W10292407
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	U-Bend
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	MAY W10756273
33	Cable Tie
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	SEAL-FOAM (IEC)
38	MAY W10168546
39	MAY W10645953
40	MAY 8540643
41	MAY W10405233
42	MAY W10198280
43	PEDESTAL, COMMERCIAL
44	MAY W10346892
45	MAY W10294428
46	Screw, 8-18 x 5/8
47	MAY W10198470
48	RETAINER-BASE
