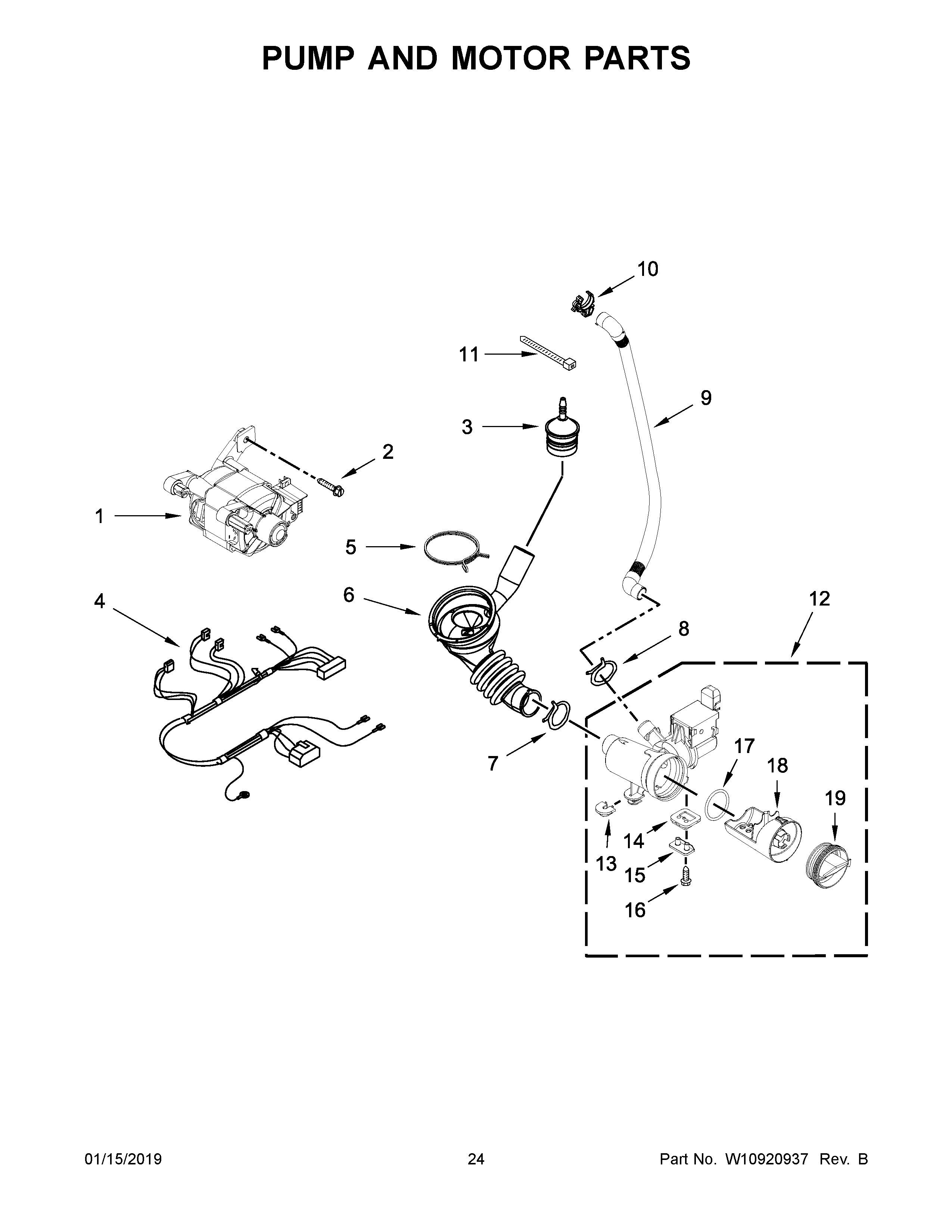

MLG22PDAGW0 13 – PUMP AND MOTOR PARTS

MLG22PDAGW0 13 – PUMP AND MOTOR PARTS

Written by

in

MLG22PDAGW0 13 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MOTOR, DRIVE
2	MAY 8540134
3	AIR TRAP (INCLUDES ITEM 14)
4	MAY W10364668
5	CLAMP, HOSE
6	MAY W10609566
7	MAY W10273036
8	MAY 356138
9	HOSE, DRAIN- INNER
10	MAY W10003290
11	TIE, CABLE
12	PUMP (COMPLETE)
13	MAY W10034820
14	MAY W10728444
15	MAY 8540033
16	SCREW, 10-16 X 1.25
17	MAY W10391451
18	MAY W10391445
19	MAY W10391446
