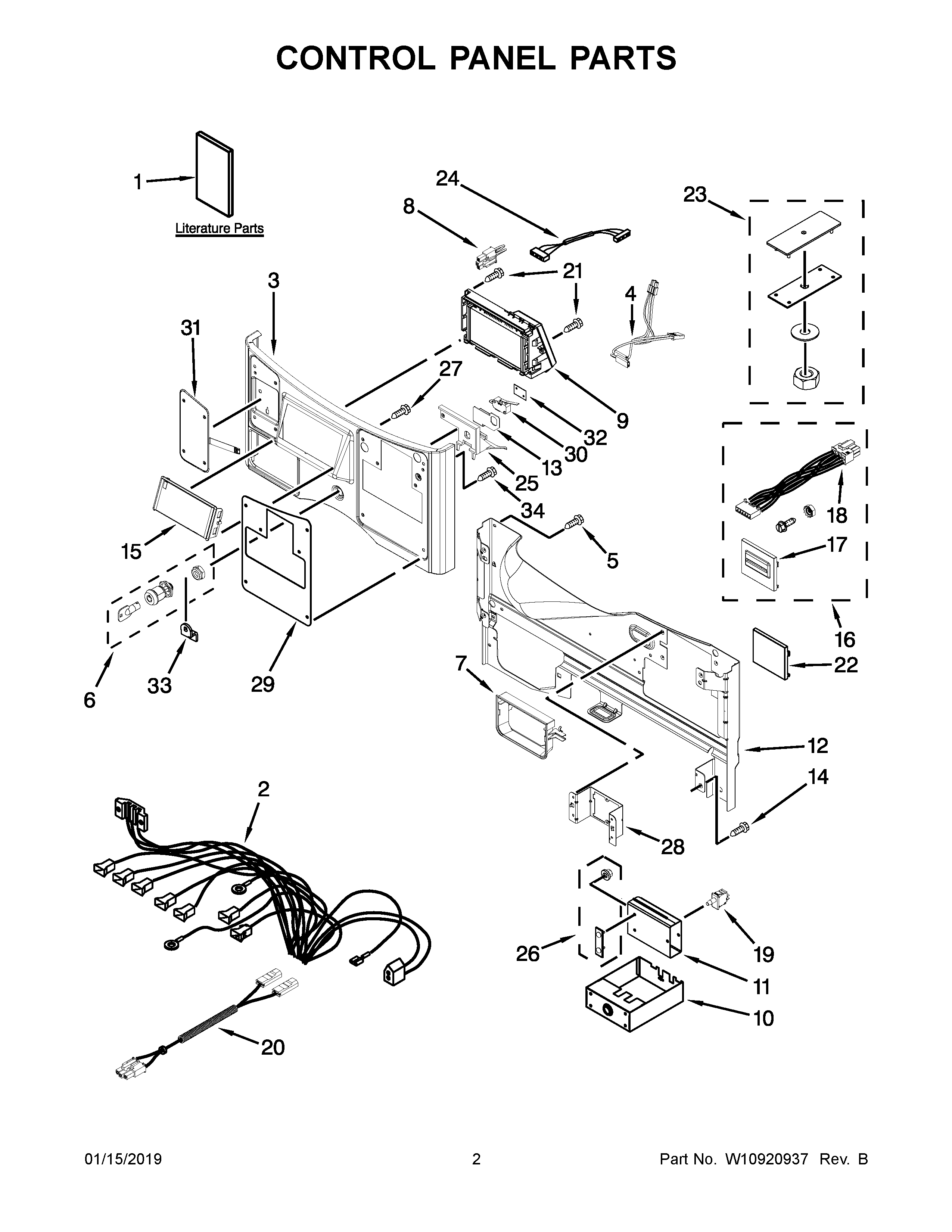

MLG22PNAGW0 02 – CONTROL PANEL PARTS

Products

Position	Product
1A	MAY W10920932
1	MAY W10920982
2	MAY W10745626
2A	MAY W10846406
3	PANEL, CONSOLE
4	MAY W10242896
5	SCREW
6	ASSEMBLY, LOCK ACCESS DOOR
7	MAY W10198345
8	JUMPER, SWITCH SERVICE/VAULT
9	MAY W11243335
9A	MAY W11243336
10	MAY W11109086
11	MAY W11109083
12	MAY W11200173
13	MAY W10160652
14	SCREW
15	WINDOW-DISPLAY
16	MAY W10198451
17	MAY W10198367
18	MAY W10239515
19	SWITCH, VAULT SERVICE DOOR
20	MAY W10300896
21	SCREW
22	MAY W10198366
23	MAY W10169579
24	MAY W10242897
25	SUPPORT-CONSOLE
26	MOUNTING STRAP, WELD ASSEMBLY
27	SCREW, 4-40 X 5/8
28	BRACKET – PD COIN DROP & PN NON COIN
28A	BRACKET PR – CARD READER
29A	FASCIA PR
29	FASCIA PD
30	MAY W10133281
31	MAY W10899385
32	MAY W10151156
33	MAY W10233256
34	MAY 3400892
