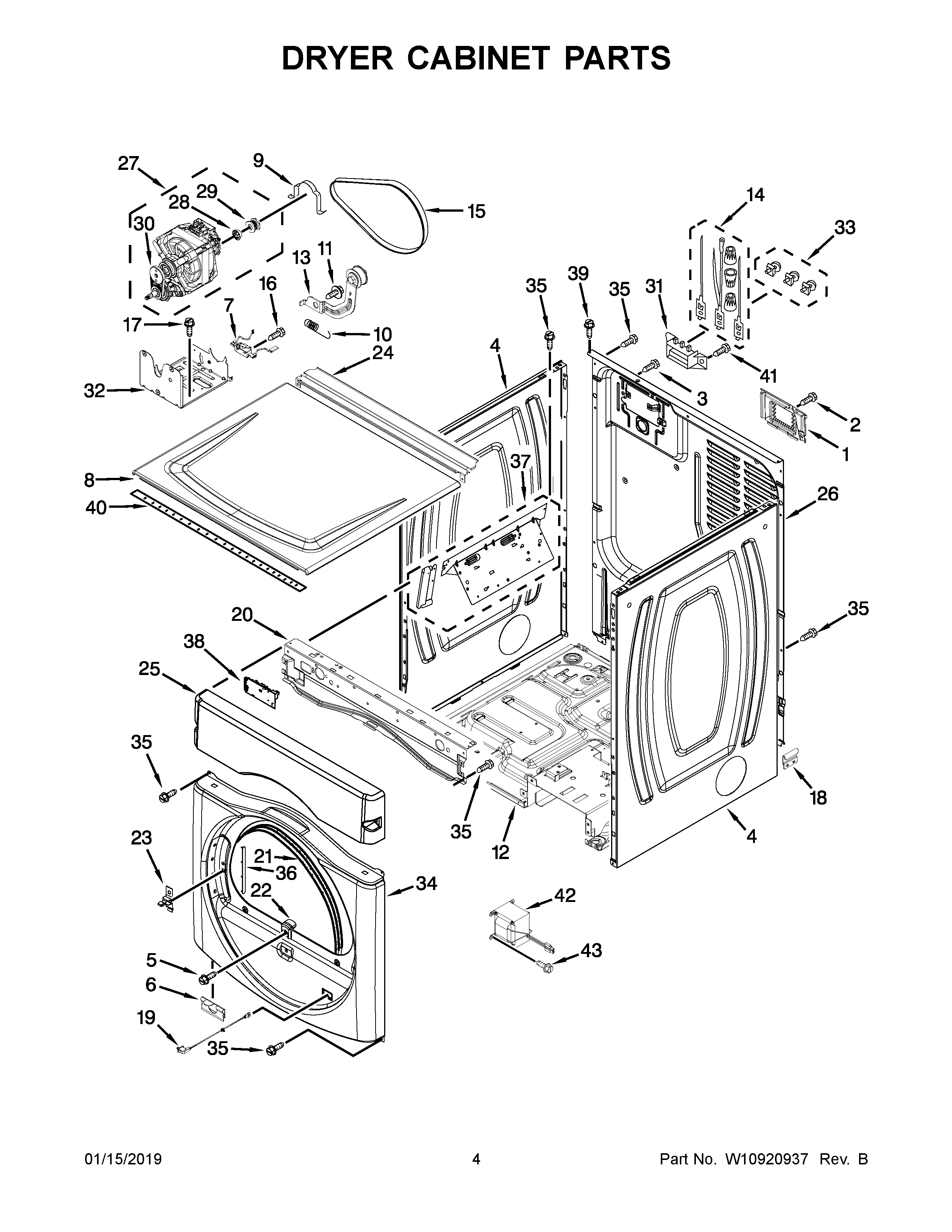

MLG22PNAGW0 03 – DRYER CABINET PARTS

Products

Position	Product
NI	MAY W10470674
1	MAY W10601020
2	SCREW
3	SCREW
4	MAY W10542714
5	SCREW
6	MAY 8519459
7	MAY W11159572
8	TOP (WHITE)
9	MAY 660658
10	MAY W10446781
11	SCREW
12A	MAY W10225175
12	BASE, CABINET PD
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	BELT, DRIVE
16	SCREW
17	SCREW
18	MAY W10198461
19	MAY W10459028
20	MAY 8565237
21	MAY 3387242
22	MAY 8580015
23	STRIKE, DOOR
24	MAY W10198224
25	MAY W10198379
26	MAY W11232506
27	MAY W10918087
28	MAY 3393657
29	MAY W10167237
30	MAY 3405160
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	PANEL, FRONT (WHITE)
35	SCREW
36	Plug, Front Panel
37	Bracket, Control
38	MAY W10166380
39	SCREW, 10-16 X 1/2
40	SEAL-FOAM (IEC)
41	MAY 8533971
42	MAY W10753690
43	SCREW
