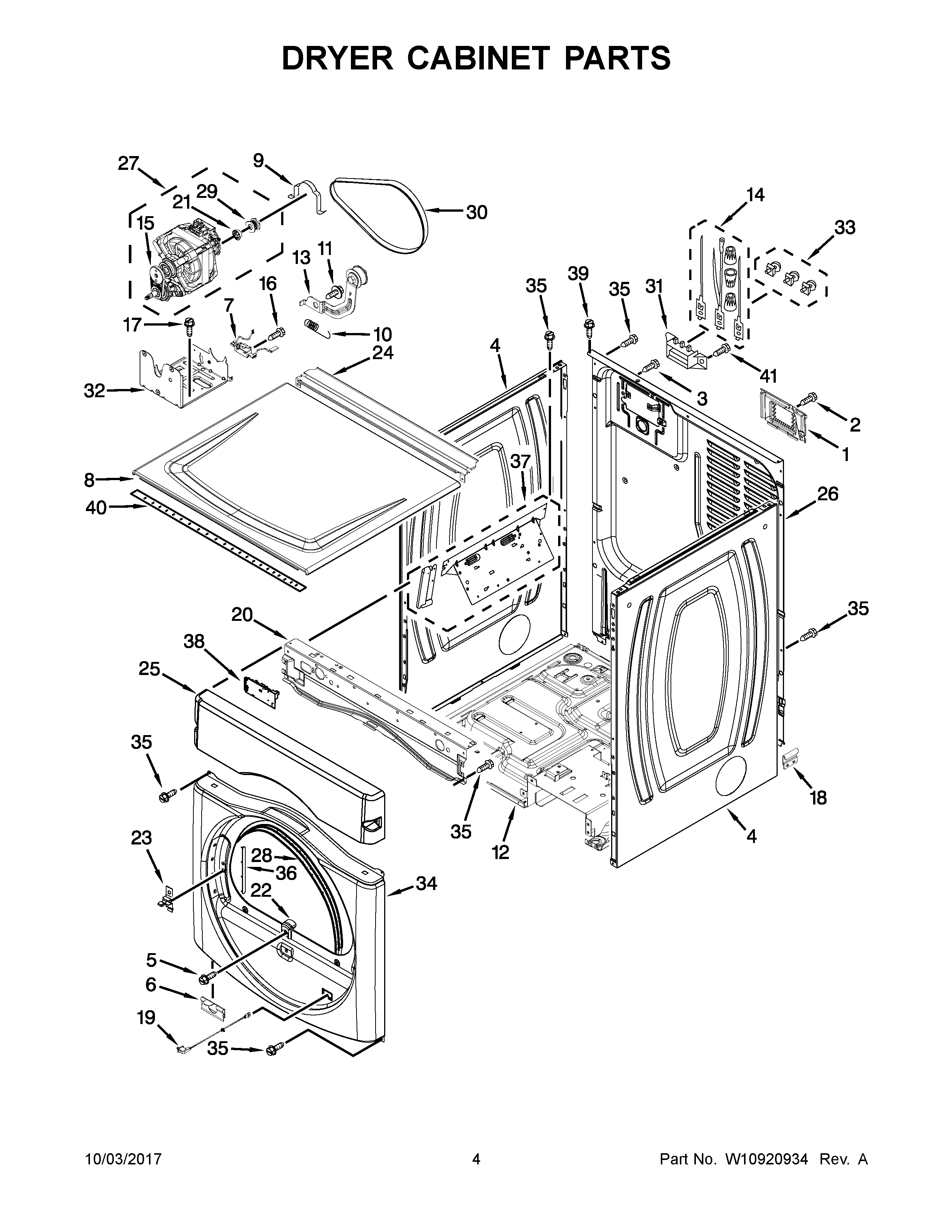

MLG22PRAWW0 03 – DRYER CABINET PARTS

Products

Position	Product
NI	MAY W10470674
1A	MAY 8317340
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	SCREW
4	MAY W10542714
5	SCREW
6	MAY 8519459
7	MAY W10155571
8	TOP (WHITE)
9	MAY 660658
10	MAY W10446781
11	SCREW
12	BASE, CABINET PD
12A	MAY 8565046
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 3405160
16	Screw, 6-20 x 1-1/16
17	SCREW
18	MAY W10198461
19	DOOR SWITCH ASSEMBLY
20	MAY 8565237
21	MAY 3393657
22	MAY 8580015
23	STRIKE, DOOR
24	MAY W10198224
25	ENCLOSURE-CCU ASM.
26	PANEL, REAR
27	MAY W10396034
28	MAY 3387242
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY W10549665
35	SCREW
36	Plug, Front Panel
37	Bracket, Control
38	MAY W10376685
39	SCREW, 10-16 X 1/2
40	SEAL-FOAM (IEC)
41	MAY 8533971
