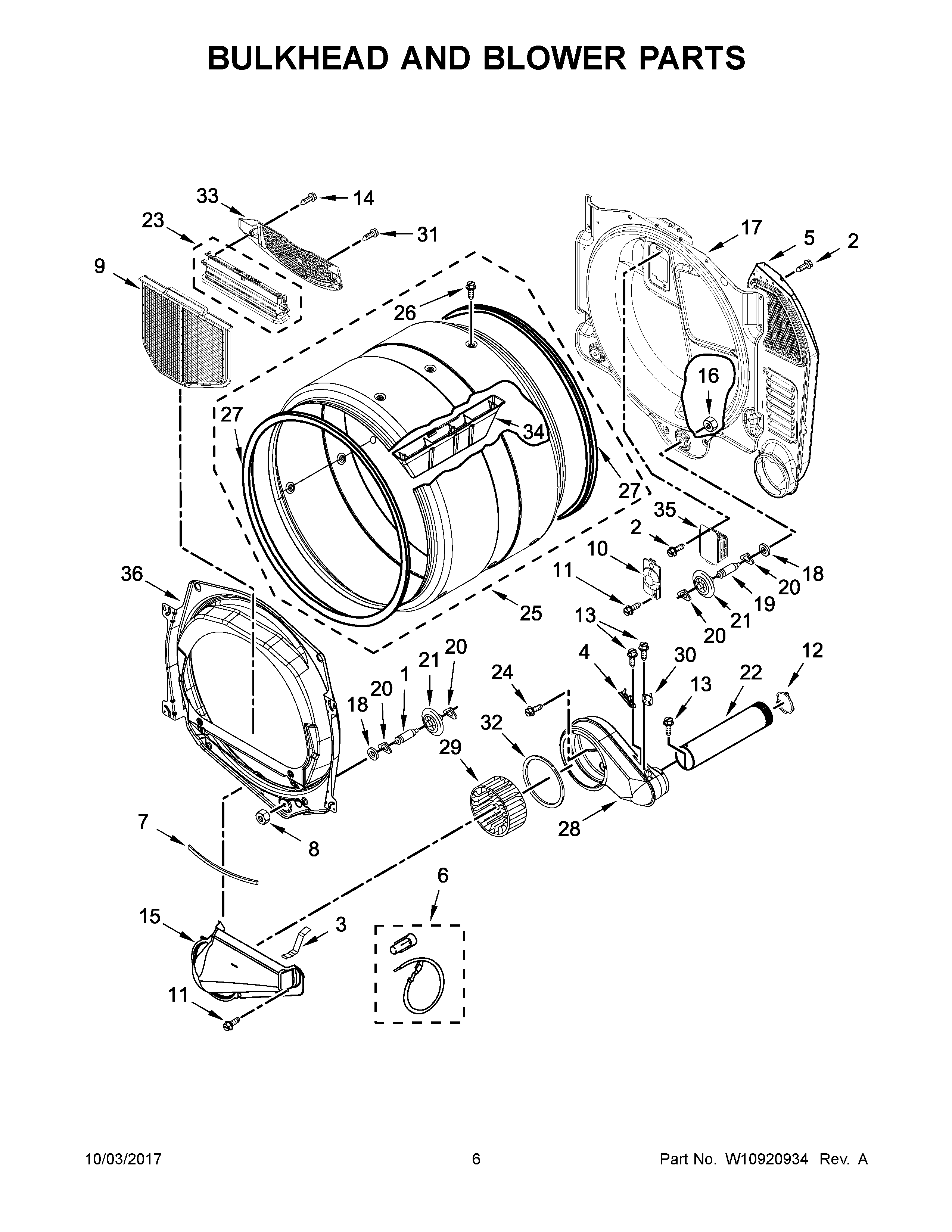

MLG22PRAWW0 04 – BULKHEAD AND BLOWER PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	CLIP, SPRING
4	Fuse, Thermal (91 C)
5	ASSEMBLY, AIR DUCT
5A	ASSEMBLY, AIR DUCT
6	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
11	MAY 359625
12	MAY W10344699
13	MAY 8533971
14	SCREW
15	Lint Duct Assembly
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 8563728
23	OUTLET HOUSING ASSEMBLY
24	Screw
25	MAY W10865330
26	MAY W10219342
27	MAY W10521118
28	MAY 8544362
29	MAY W10349492
30	THERMISTOR
31	Screw, 8-18 x 1/2
32	SEAL, PLATE COVER
33	MAY W10181926
34	MAY W10153409
35	BRACKET, DRUM LIGHT
36	MAY 8565061
